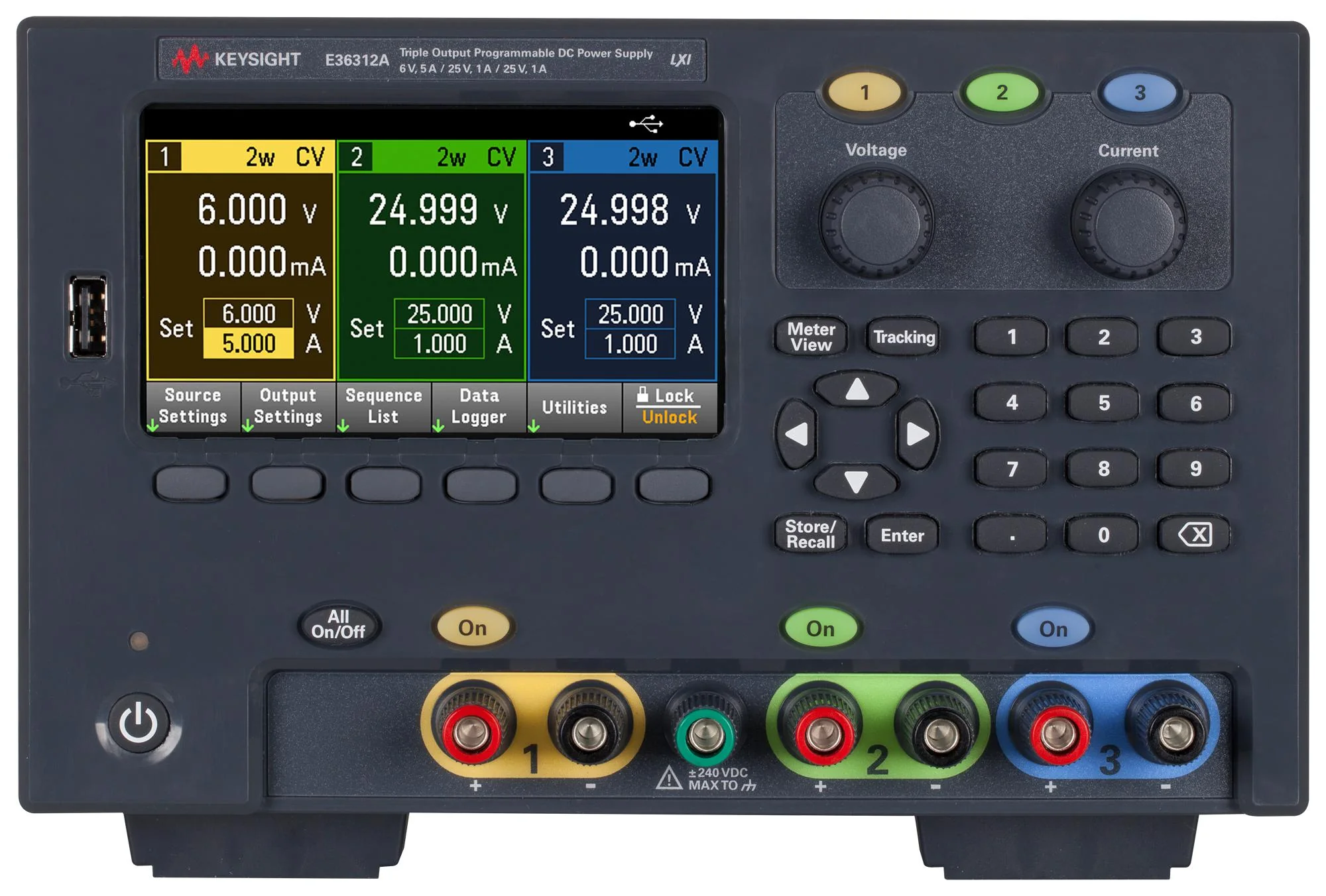

Keysight Technologies E36312A WITH GPIB Bench Power Supply DC W/GPIB Module Programmable 3 Output 0 V 25 A 5
Keysight Technologies E36312A WITH GPIB Bench Power Supply DC W/GPIB Module Programmable 3 Output 0 V 25 A 5
The E36312A WITH GPIB from Keysight Technologies is an E36300 series triple output programmable DC power supply. Besides 0.01% load and line regulation, the E36312A can also maintain a steady output when power line and load changes occur, giving more peace of mind. It features more convenient and productive with intuitive and easy to use front panel interface. The 4.3'' LCD colour display can show the voltage and current of all three channels at the same time and the colour coded channel also simplifies manual set-up. It has low current measurement (< 80µA), low acoustic noise (< 50dB), 0.36mV/0.3mA (CH1), 1.5mV/0.1mA (CH2&3) programming resolution and 0.24mV/0.2mA (CH1), 1mV/160µA (CH2), 1mV/80µA (CH3) readback resolution. The E36312A features data logger, output sequencing, output LIST mode, auto series/parallel mode, convenient front and rear output terminals, improved measurement accuracy with 4-wire sensing, front panel USB, digital I/O port and electrically isolated outputs.
- 80W power output, 0 to 6V/0 to 5A (CH1), 0 to 25V/0 to 1A (CH2), 0 to 25V/ 0 to 1A (CH3) DC output
- More test throughput via connectivity and easy to use SCPI programming language
- More protection for device under test (DUT), 100, 115 or 230V AC input (±10%), 47 to 63Hz, 250VA
- Two individual knobs for voltage and current, less cost and saves space with independent outputs
- USB 2.0, LAN, GPIB interface, transient response time of < 50µsec, built-in battery back-up RTC
- UL 61010-1 3rd edition, CAN/CSA-C22.2 no61010-1-12, IEC 61010-1:2010 3rd edition safety approvals
- < 350µVrms/2mVpp output ripple and noise (20Hz to 20MHz) in normal mode voltage
- 0.03% +2mV /0.04% + 3mA (CH1), 0.03% +5mV/0.04% +2mA (CH2, 3) programming accuracy
- 0.04% +2mV/0.04% + 3mA (CH1), 0.04% + 5mV/0.04% + 3mA (CH2, 3) readback accuracy
- 145 x 216 x 367mm (H x W x D) dimension, 8.3Kg weight, 0 to 40°C operating temperature
Test & Measurement
ContentsE36312A DC power supply, AC power cord (based on destination country), 0360-3139 connector-terminal block, 0360-3140 connector terminal block, 0360-3155 connector terminal block.
Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.Other details
| Brand | KEYSIGHT TECHNOLOGIES |
| Part Number | E36312A WITH GPIB |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$3,679.83
