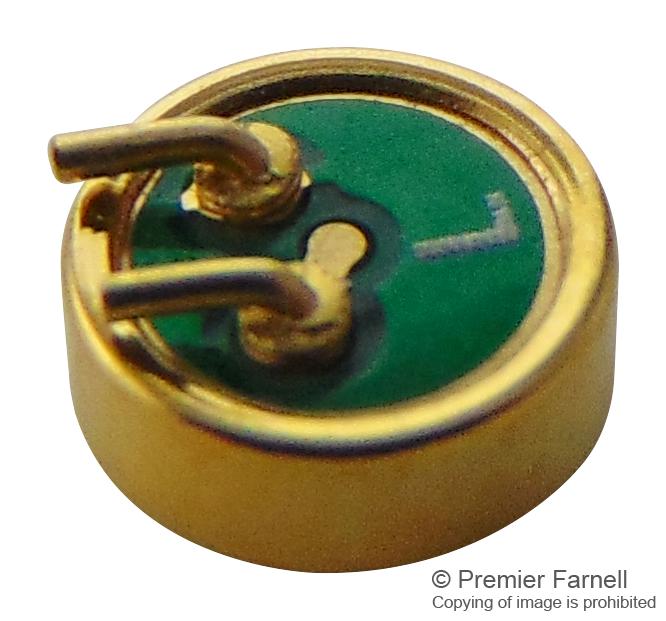

Kingstate KEEG1542PBL-A 4mm PCB Mount Electret Condenser Microphone

The KEEG1542PBL-A is a 0.5mA 10V omnidirectional Electret Condenser Microphone, brass construction with gold-plated finish, gold-plated pin type terminal, 58dBA signal to noise ration, -42dB sensitivity and 180Hz to 20kHz frequency range.

• -20 to 70°C Operating temperature range

Applications

Audio

Product details

Transducer Function	Microphone
Directivity	Omnidirectional
Frequency Response Min	180Hz
Frequency Response Max	20kHz
Supply Voltage Min	-
Supply Voltage Max	10V
Sensitivity (dB)	-42dB
Drain Current Max	500µA
Output Impedance	2.2kohm
Product Range	-

Other details

Brand	KINGSTATE
Part Number	KEEG1542PBL-A
Quantity	Each
Technical Data Sheet EN
