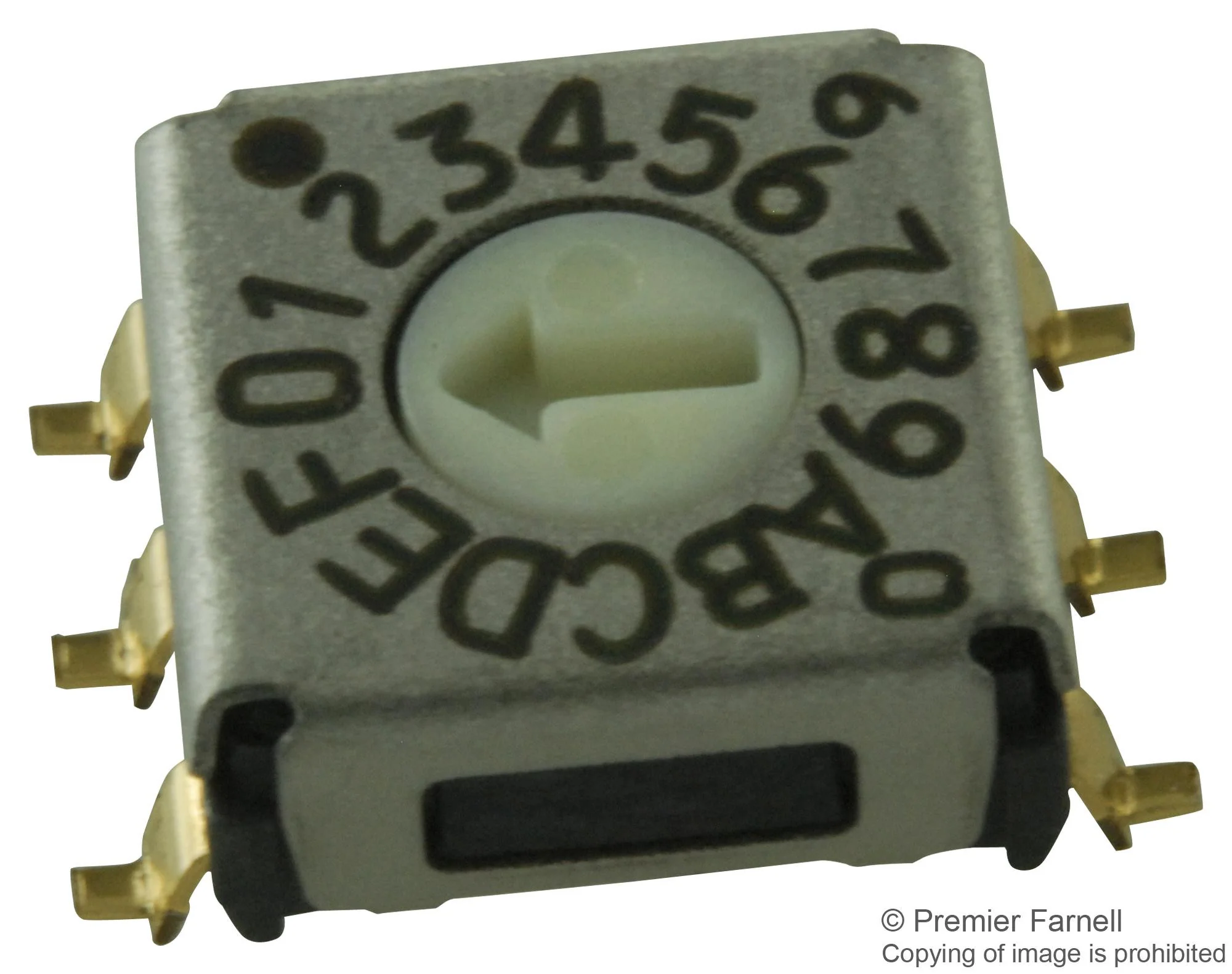

KNITTER-SWITCH SMR 13016 Rotary Switch, 16 Position, Non Illuminated, SMR13016 Series
HomeStore

KNITTER-SWITCH SMR 13016 Rotary Switch, 16 Position, Non Illuminated, SMR13016 Series

KNITTER-SWITCH SMR 13016 Rotary Switch, 16 Position, Non Illuminated, SMR13016 Series

The SMR 13016 is a 16-position Microminiature Rotary Switch with hexadecimal coding and reflow-soldering. The SMR13016 series switch has gold-plated phosphor bronze contacts, stainless steel frame and gold over nickel plated phosphor bronze terminal.
  • <200mR Maximum contact resistance
  • >1000MR at 100VDC Insulation resistance
  • 250V, 50Hz for duration of one minute Dielectric strength

Applications

Industrial

Product details

Contact Current DC Max -
Illumination Non Illuminated
Contact Voltage DC Max 50V
Contact Current AC Max -
Angle of Throw -
Product Range SMR13016 Series
No. of Switch Positions 16 Position
Contact Voltage AC Max -
No. of Poles -

Other details

Brand KNITTER-SWITCH
Part Number SMR 13016
Quantity Each
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

$8.16
