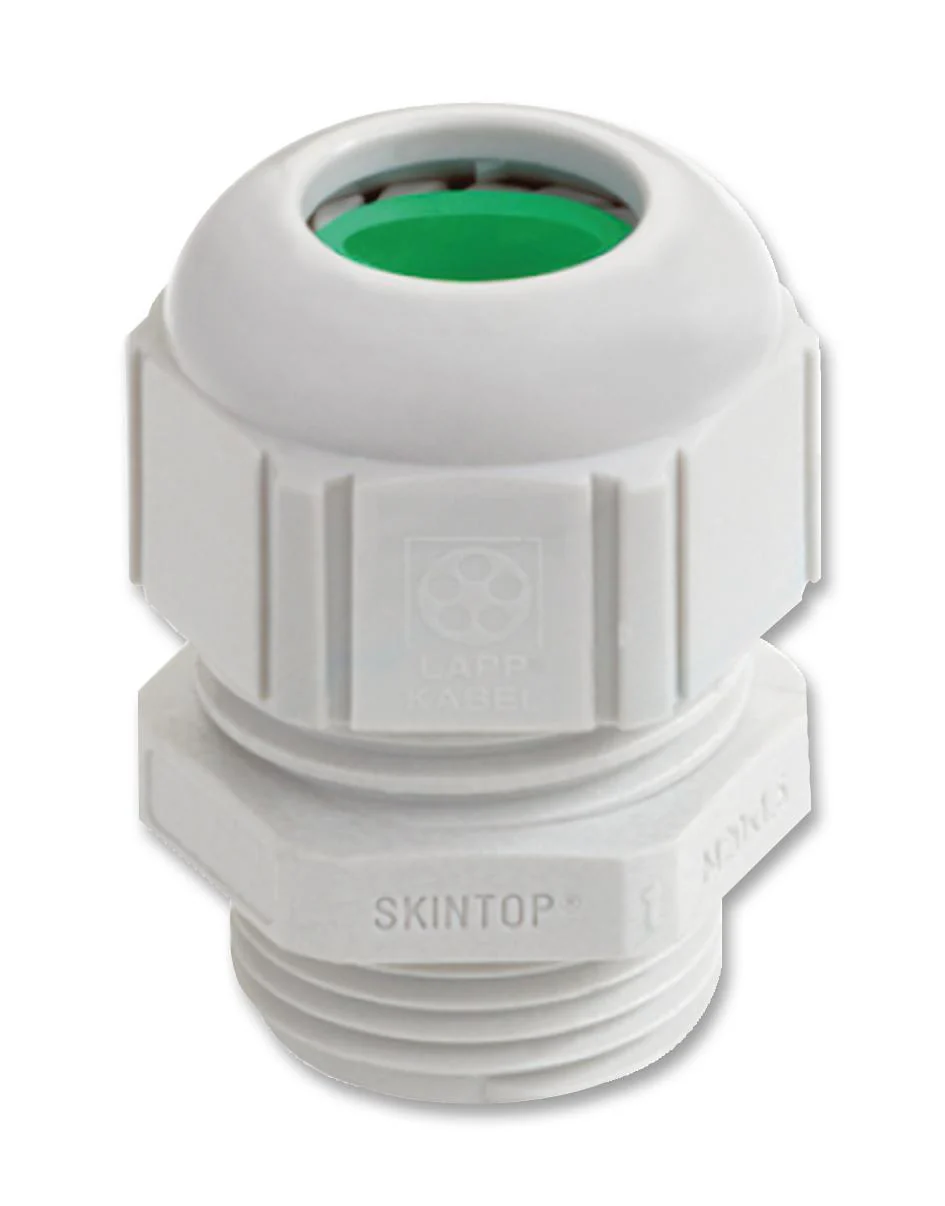

Lapp Kabel 53111417 & 53119210 53111417 53119210 Cable Gland M16 x 1.5 4.5 mm 9 Nylon (Polyamide) Grey

The 53111417 & 53119210 is a SKINTOP® ST-HF-M metric Cable Gland and SKINTOP® GMP-HF-M Hexagonal Locknut made of polyamide which is flame retardant and non-halogen. It is designed for universal use, in premises where the subject is human protection, such as office and public buildings, undergrounds tunnels, aeration systems, as well as in premises where the subject is protection of properties values, such as industrial installations, storehouses, supply installations and ship building. The locknut is used where cable glands are attached but there is only a pass through hole. When the cable gland is fixed in a thread, a higher protection against vibration can be attained with this locknut.

• Extremely flame-retardant
• Self-extinguishing, no dripping
• Permanent vibration protection
• Maximum reliability
• -20 to 100°C Temperature range

Applications

Building Automation, Mining, Oil & Gas, Industrial

Product details

Thread Size - Imperial	-
Thread Size - Metric	M16 x 1.5
Cable Diameter Min	4.5mm
Cable Diameter Max	9mm
Cable Gland Material	Nylon (Polyamide)
Gland Colour	Grey
IP / NEMA Rating	IP68
Product Range	-

Other details

Brand	LAPP KABEL
Part Number	53111417 & 53119210
Quantity	Pack of 10
Technical Data Sheet EN
