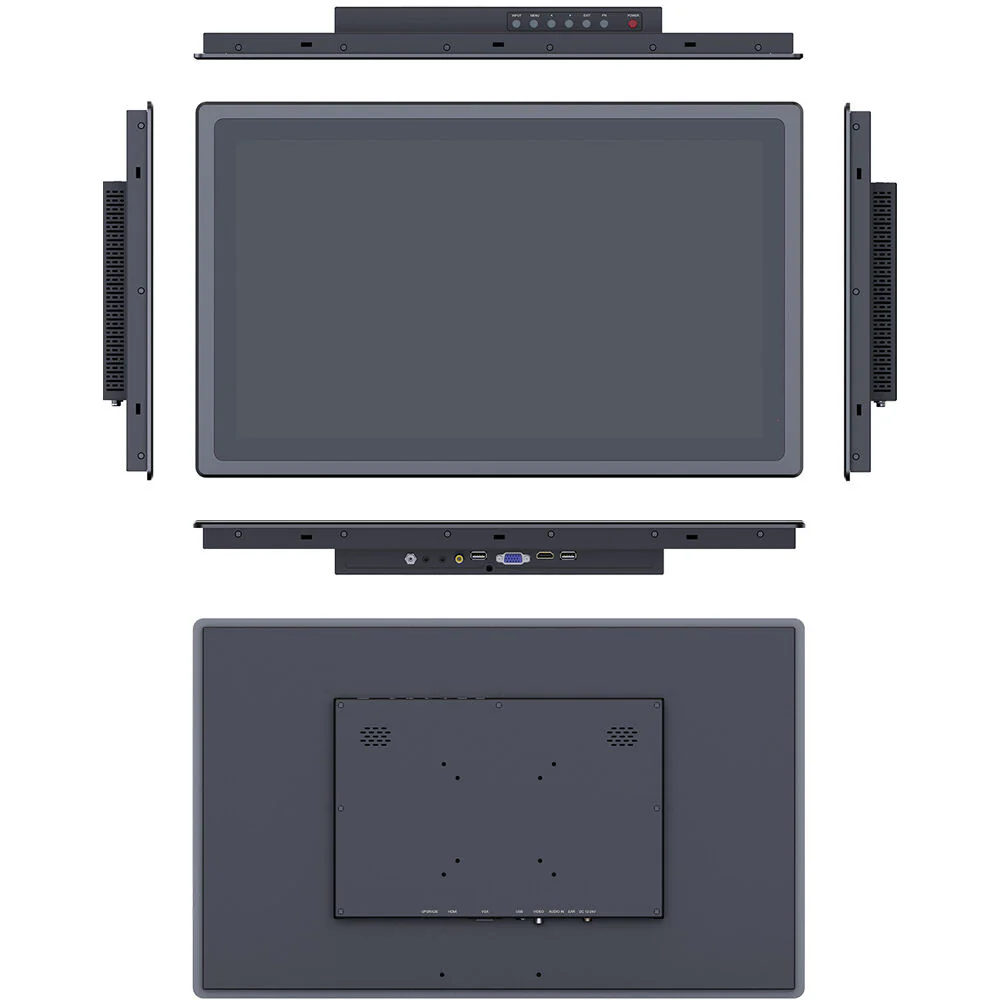

Lilliput 21.5" Full HD Industrial Display
Lilliput Tk2150 Overview
Designed for HMI applications, the 21.5" Full HD Industrial Display from Lilliput can be used as a solution for a variety of situations within many industries. Some examples include various aspects of the medical field, at AI-equipped production facilities, within smart locker installations, or as part of self-service kiosks. The display lacks any touch interface, making it an ideal solution for situations where you only require an information display for workers or guests. The display panel is a generous 21.5" in size, delivers a crisp and detailed 1080p image, and can handle outdoor usage with IP65-rated dust and water resistance.
- Industrial-grade aluminum metal housing
- 1000 cd/m² of brightness
- Auto dimming
- Two built-in speakers
- 12-24 VDC power input compatibility
- One HDMI, VGA, and composite video input
- 3.5mm audio input and headphone output
- USB Type-A port for firmware upgrading
Lilliput Tk2150 Specs
| Screen Size (Diagonal) | 21.5" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | Minimum: 1280 x 720 / 60 Hz Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | LCD |
| Brightness | 1000 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Refresh Rate | 60 Hz |
| Pixels Per Inch (ppi) | 103 ppi |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.4 � Audio, Video (Rear) 1 x VGA 15-Pin � Video (Rear) 1 x RCA Composite � Video (Rear) 1 x 1/8" / 3.5 mm � Audio (Rear) |
| Output Ports | 1 x 1/8" / 3.5 mm � Audio (Rear) |
| USB Ports | 2 x Unspecified USB, USB-A (Rear) |
| Bluetooth | None |
| Digital Media Slot | None |
| TV Tuner | No |
| Display Orientation | Landscape |
| Touch Resolution | 1920 x 1080 |
| Built-In Speakers | Yes, 2 |
| Speaker Configuration | 2-Channel |
| Power Consumption | Typical: < 37.0 W |
| DC Input Power | 12 to 24 VDC |
| Power Adapter Type | External |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminum |
| IP Rating | IP65 |
| Dimensions | 13.6 x 21.9 x 1.9" / 344.5 x 556.0 x 48.2 mm |
| Weight | 13.21 lb / 5.99 kg |
Lilliput Tk2150 Reviews
