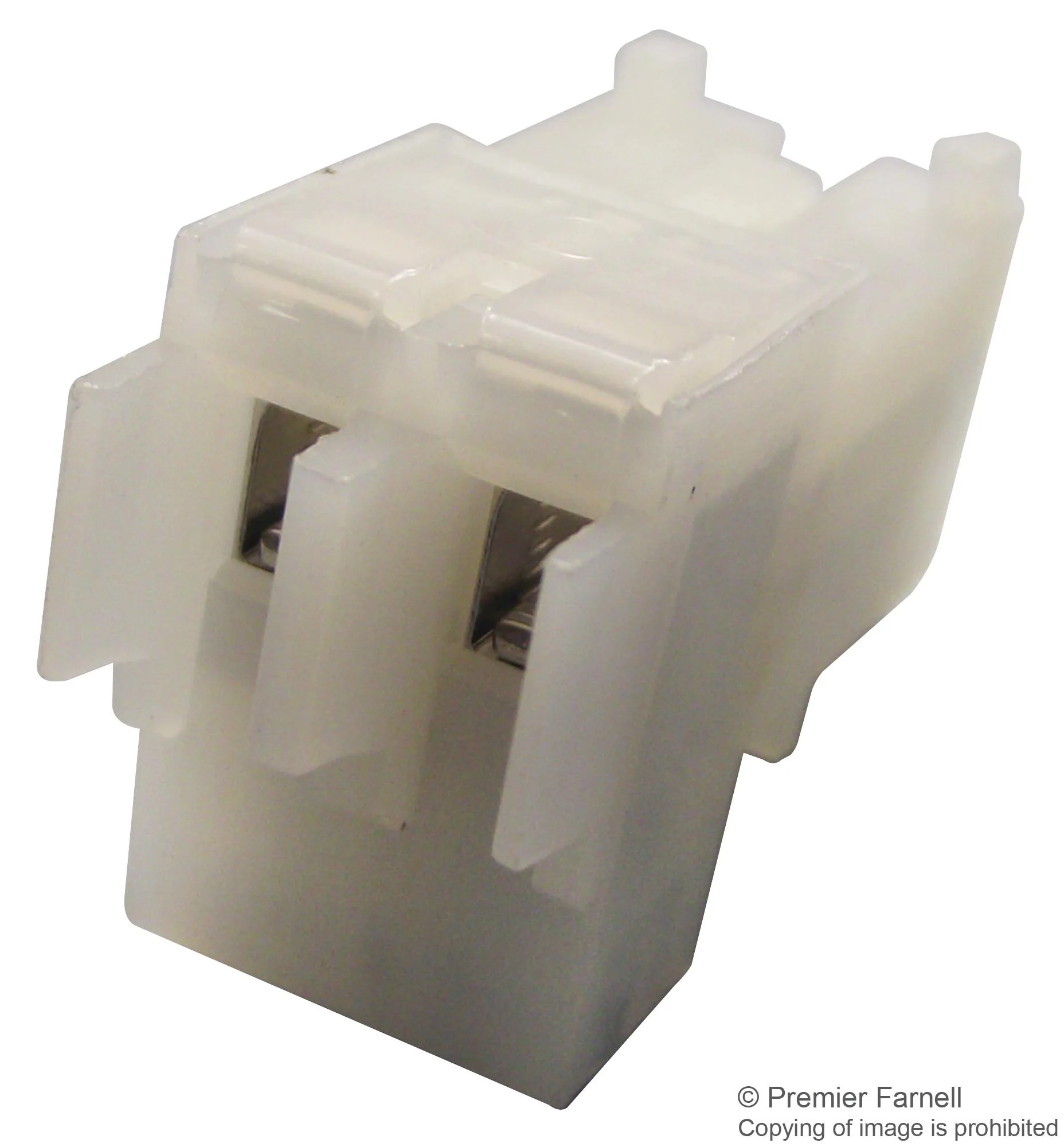

Lumberg 3611 02 K01 Rectangular Connector Rast 5 2 Contacts Receptacle mm Screw 1 Row

The 3611 02 K01 is a 2-pole Wire-to-board Connector, RAST 5 series, indirect mating with screw terminal. Lift clamp with protection against misplacing, interior locking and consecutive placement without loss of pitch. UL94V-2 rated polyamide insulating body, tin-plated contacts. Suitable for us with 3618, 361899, 361899-1, 361899-2, 361899-3, 3618-1, 3618-2, 3618-3, 3641, 364197, 3642, 3643, 3644, 3645, 3647, 3648, 3649, 3671, 367199, 3672, 367299, 3673, 367399, 3674, 367499, 3676, 3677, 3678, 3679, 3680, 3683 tab headers.

• 4.0mm² Solid wire
• 2.5mm² Stranded wire
• 2.5mm² Stranded wire with ferrule
• <=5mR Contact resistance
• 10A Current rating
• 250VAC Voltage rating
• >=2.6mm Creepage distance
• >=2.6mm Clearance
• >10GR Insulation resistance

Applications

Industrial, Building Automation

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	LUMBERG
Part Number	3611 02 K01
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
Drawing EN
