Lynx Technik AG CHD 1412 Overview

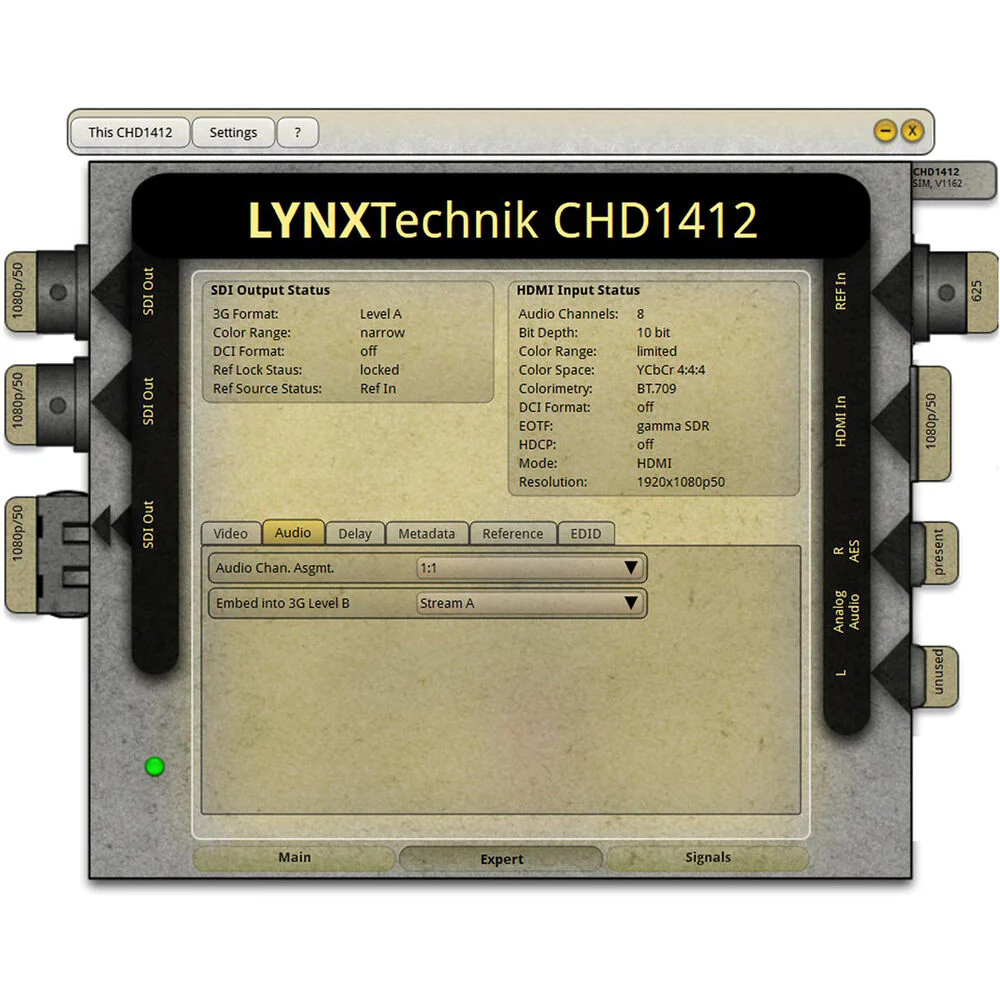

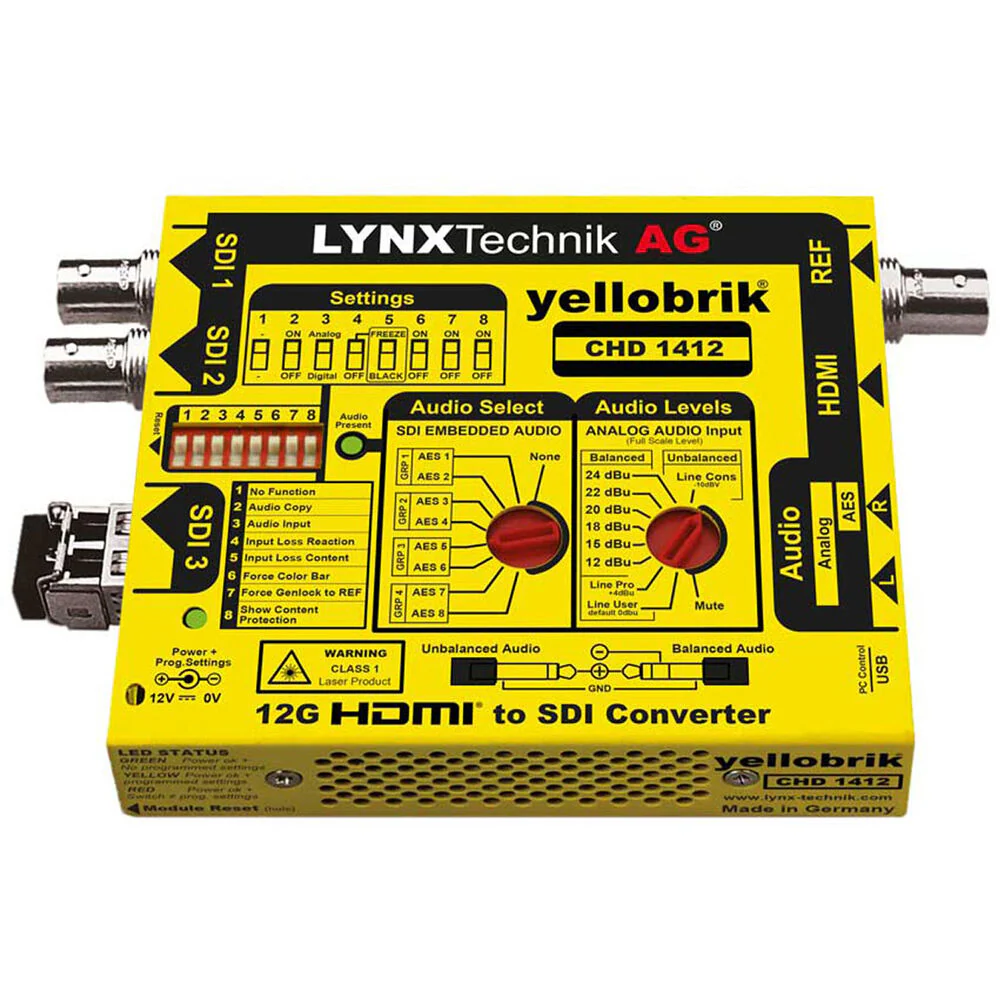

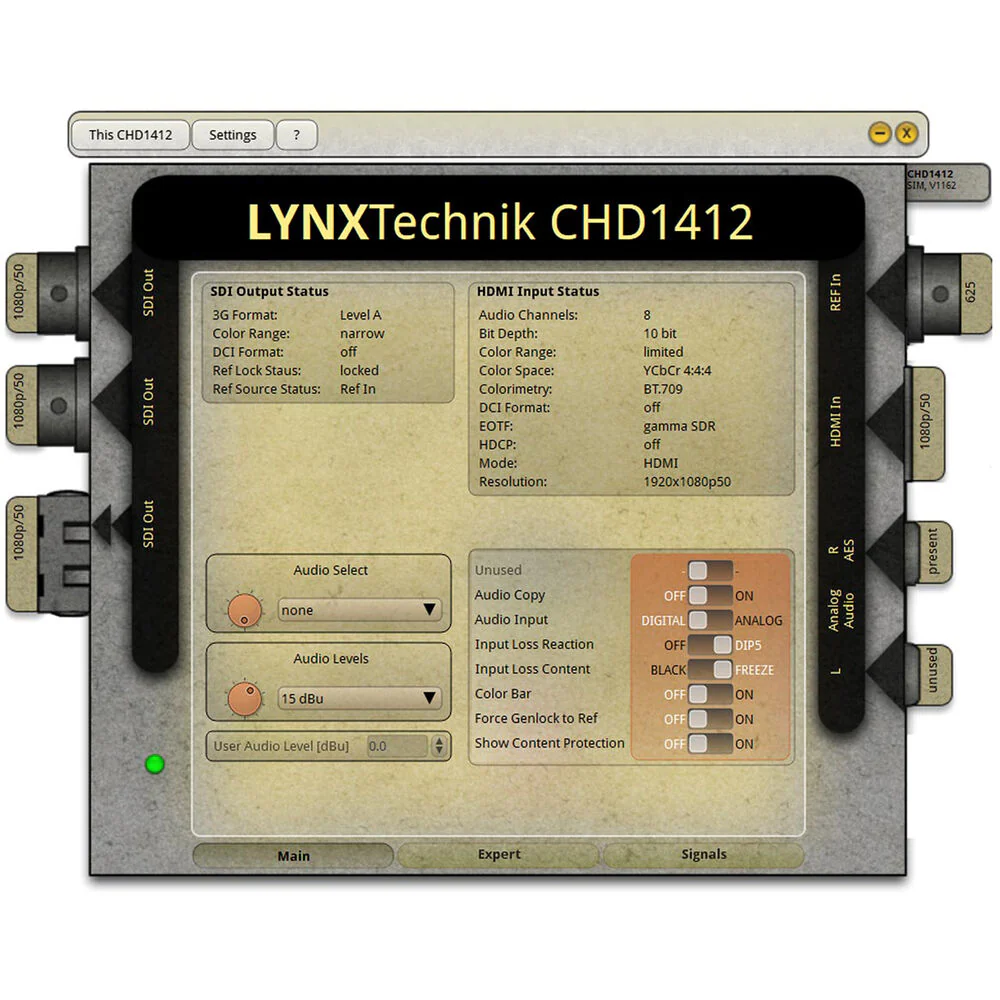

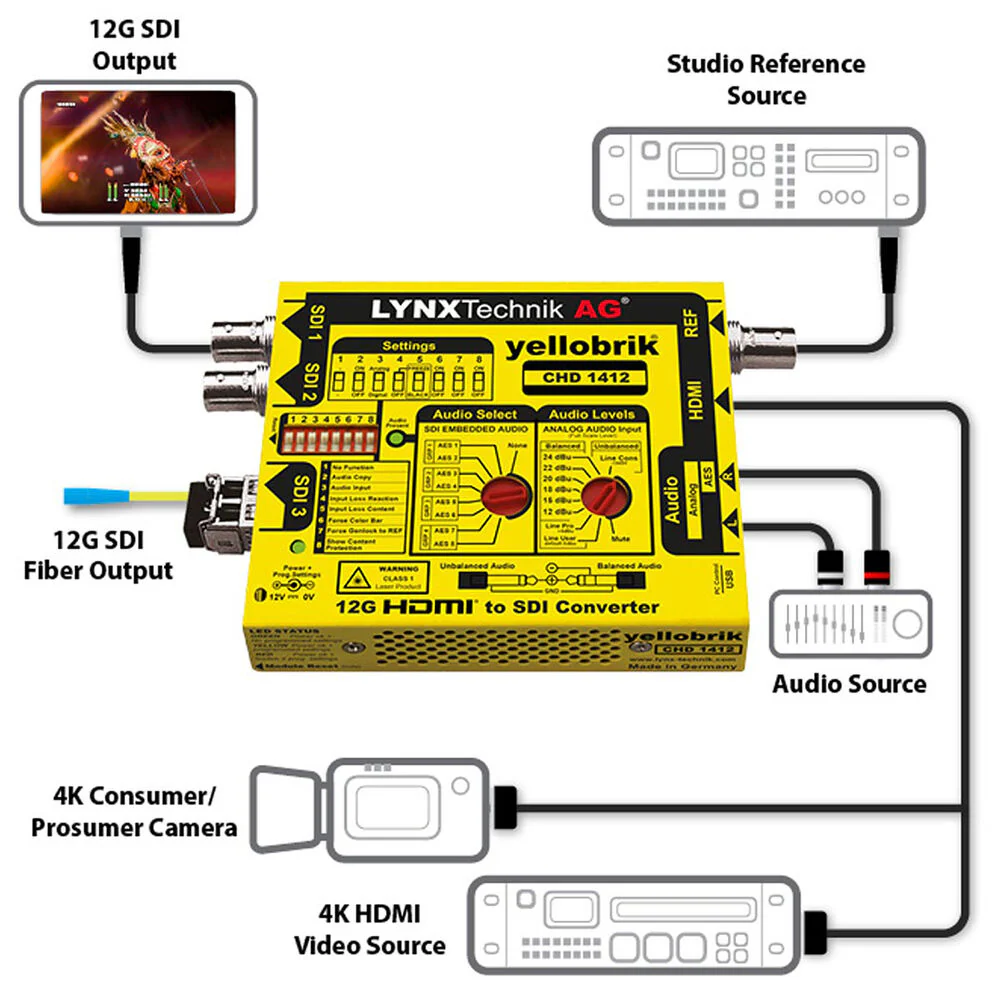

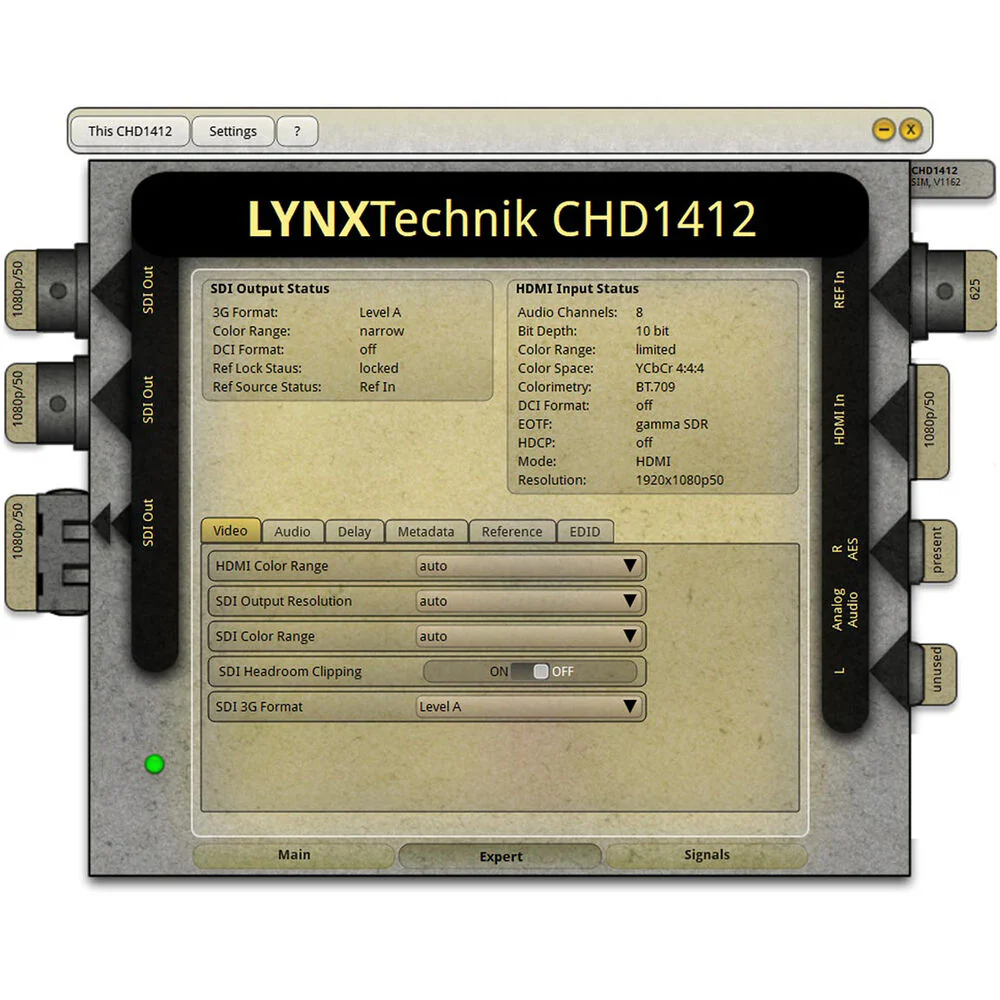

The Lynx Technik AG yellobrik CHD 1412 UHD 4K HDMI to 12G-SDI Converter is a professional video signal converter solution for delivering broadcast-quality video over dual 12G-SDI outputs from an HDMI input. This compact converter features a flexible BNC reference sync input, dual 3.5mm audio inputs, and support for up to 4K60 video input and output with 8-channel embedded audio. The CHD 1412 module is also compatible with yelloGUI and LynxCentraal control software, enabling access to a host of additional settings.
In the Box
- Lynx Technik AG yellobrik CHD 1412 UHD 4K HDMI to 12G-SDI Converter with Frame Synchronizer & Audio Embedder
- Limited 3-Year Manufacturer Warranty
Lynx Technik AG CHD 1412 Specs
| Video Inputs |
1x HDMI (2.0b) Female
1x Socket for SFP Module |
| Audio Inputs |
2x 1/8" / 3.5 mm TRS Analog Female
|
| Video Outputs |
2x BNC (12G-SDI) Female
|
| Audio Outputs |
No
|
| Expansion Slots |
No
|
| Input Video Format |
HDMI
UHD 4K up to 60 fps |
| Output Video Format |
SDI
UHD 4K up to 60 fps |
| Embedded Audio |
HDMI/SDI Input: 8-Channel
HDMI/SDI Output: 8-Channel |
| Video Standard Compliance |
SMPTE 259M/274M/292M/296M/424M/ST-2081-1/ST-2082-1
|
| HDCP Support |
No
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| Tally Light |
Yes
|
| Wireless |
No
|
| Power I/O |
1x Barrel (10 to 14 VDC) Input
|
| Power Consumption |
Device: 12 VDC (10 W)
|
| Operating Temperature |
41 to 104°F / 5 to 40°C
|
| Operating Humidity |
90% ()
|
| Dimensions |
5.5 x 3.5 x 0.9" / 140 x 90 x 22 mm
|
| Weight |
7.3 oz / 207 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
