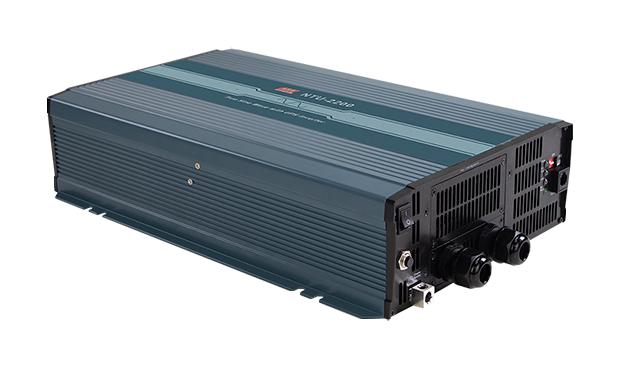

MEAN WELL NTU-2200-248TB DC/AC Inverter, Universal O/P Socket, ITE & Household, 66 VDC, 1 Output, 240 VAC, 2.2 kW
MEAN WELL NTU-2200-248TB DC/AC Inverter, Universal O/P Socket, ITE & Household, 66 VDC, 1 Output, 240 VAC, 2.2 kW
NTU-2200-248TB is a NTU-2200 series highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function (AC by-pass). Its key features include digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25 to +70°C wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction sites, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.
- True sine wave output (THD3%), temperature controlled cooling fan, support RS232 communication
- AC output voltage and frequency selectable by DIP S.W
- Power ON-OFF remote control
- Front panel indicator for operation status
- Battery over discharge protection (low voltage disconnect)
- Suitable for lead-acid or li-ion batteries, conformal coating, 3 years warranty
- CB IEC62368-1, Dekra Seal BS/EN62368-1, UL458, UL62368-1, E13, EAC TP TC 004, AS/NZS 62368-1 approved
- 2200W output power
- AC output voltage is 200/220/230/240VAC
- AC output socket is TB
Product details
| Power Supply Applications: ITE & Household |
| Input Voltage Max: 66VDC |
| No. of Outputs: 1 Output |
| Output Voltage: 240VAC |
| Output Power: 2.2kW |
| Product Range: NTU-2200 Series |
| Length: 420mm |
| Width: 270mm |
| Height: 98mm |
Other details
| Brand | MEAN WELL |
| Part Number | NTU-2200-248TB |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$364.06
Original: $1,213.53
-70%MEAN WELL NTU-2200-248TB DC/AC Inverter, Universal O/P Socket, ITE & Household, 66 VDC, 1 Output, 240 VAC, 2.2 kW—
$1,213.53
$364.06MEAN WELL NTU-2200-248TB DC/AC Inverter, Universal O/P Socket, ITE & Household, 66 VDC, 1 Output, 240 VAC, 2.2 kW
NTU-2200-248TB is a NTU-2200 series highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function (AC by-pass). Its key features include digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 4400W peak power, adjustable AC output voltage and frequency, -25 to +70°C wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU-2200 is suitable for use in residential, commercial, marine, automobile, mine, construction sites, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.
- True sine wave output (THD3%), temperature controlled cooling fan, support RS232 communication
- AC output voltage and frequency selectable by DIP S.W
- Power ON-OFF remote control
- Front panel indicator for operation status
- Battery over discharge protection (low voltage disconnect)
- Suitable for lead-acid or li-ion batteries, conformal coating, 3 years warranty
- CB IEC62368-1, Dekra Seal BS/EN62368-1, UL458, UL62368-1, E13, EAC TP TC 004, AS/NZS 62368-1 approved
- 2200W output power
- AC output voltage is 200/220/230/240VAC
- AC output socket is TB
Product details
| Power Supply Applications: ITE & Household |
| Input Voltage Max: 66VDC |
| No. of Outputs: 1 Output |
| Output Voltage: 240VAC |
| Output Power: 2.2kW |
| Product Range: NTU-2200 Series |
| Length: 420mm |
| Width: 270mm |
| Height: 98mm |
Other details
| Brand | MEAN WELL |
| Part Number | NTU-2200-248TB |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
