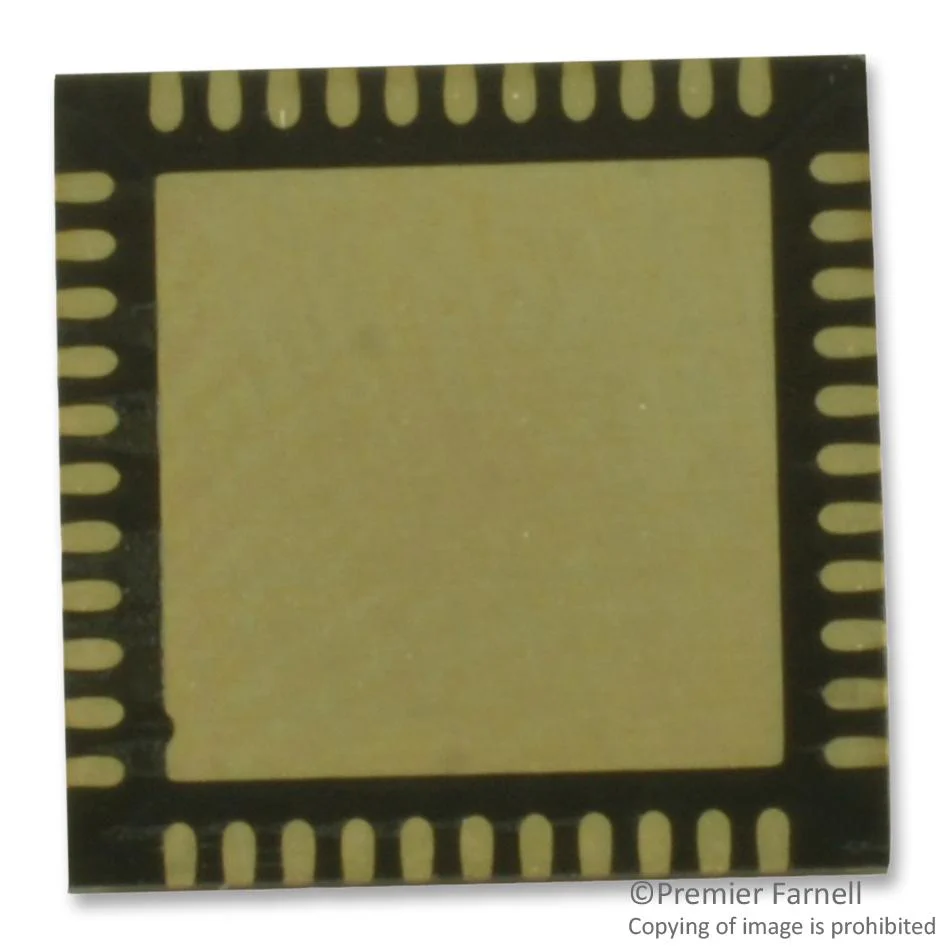

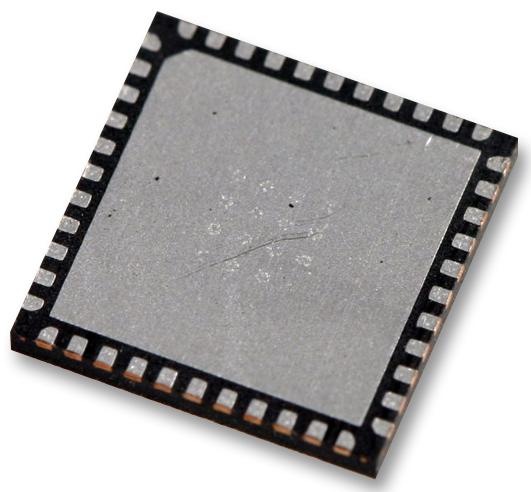

MICROCHIP ATXMEGA128A4U-MH 16 Bit Microcontroller, High Performance, Low Power, AVR Family ATmega128 Series Microcontrollers
MICROCHIP ATXMEGA128A4U-MH 16 Bit Microcontroller, High Performance, Low Power, AVR Family ATmega128 Series Microcontrollers
The ATXMEGA128A4U-MH is a 16-bit low power AVR Microcontroller Unit featuring 128kB self-programming flash program memory, 4kB boot code section, 8kB SRAM, 2048-byte EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system and up to 32MIPS throughput at 32MHz. The AVR CPU combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit (ALU), allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers.
- High performance
- Non-volatile program and data memories
- 4-channel DMA controller
- 8-channel event system
- Five 16-bit timer/counters
- One USB device interface
- External interrupts on all general purpose I/O pins
- Power-on reset and programmable brown-out detection
- Programmable multilevel interrupt controller
- 5 sleep modes
Applications
Building Automation, Industrial, Motor Drive & Control, Automation & Process Control, HVAC, Communications & Networking, Metering, Consumer Electronics, Medical
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
Other details
| Brand | MICROCHIP |
| Part Number | ATXMEGA128A4U-MH |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
