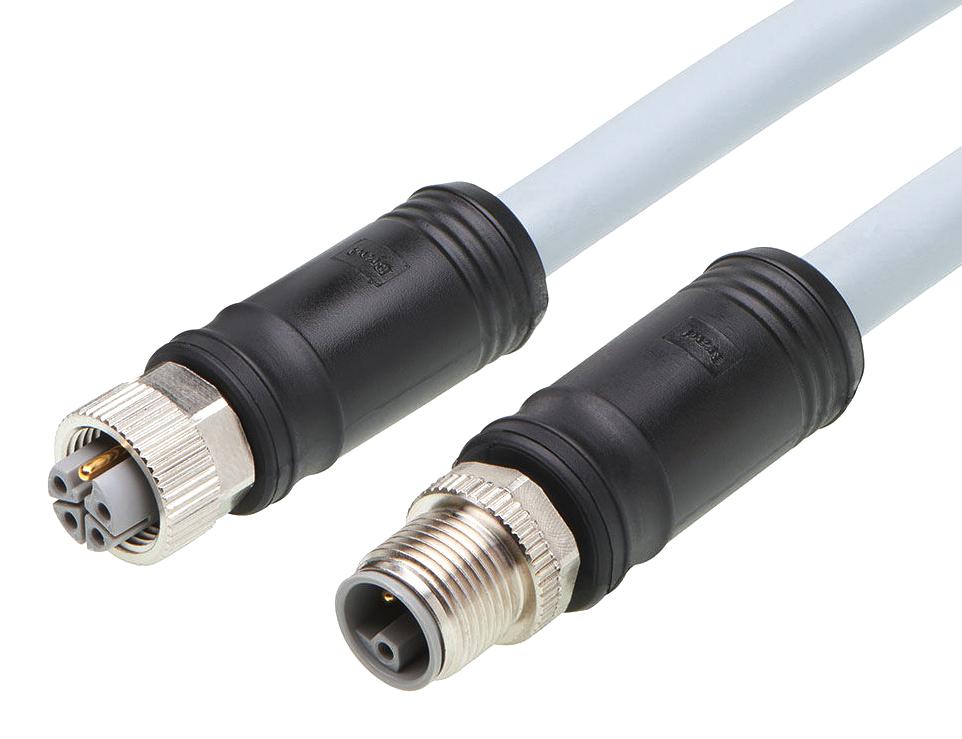

MOLEX 1205010105 Sensor Cable, M12, Micro-Change Receptacle, Micro-Change Plug, 5 Positions, 10 m, 32.8 ft LLP5030B63M100
MOLEX 1205010105 Sensor Cable, M12, Micro-Change Receptacle, Micro-Change Plug, 5 Positions, 10 m, 32.8 ft LLP5030B63M100
Brad M12 Power L-Code Connector System is the ultimate solution for Industry 4.0 electric propulsion needs. Meeting PROFIBUS and PROFINET International (PI) standards for PROFINET systems, this compact yet powerful connector delivers up to four times the power of standard M12 connectors, making it ideal for high-power applications. With IP67-sealed interface, this connector enhances protection against dust and water ingress, while the Weld-Slag and Oil-Resistant (WSOR) cables provide additional protection against even the harshest environments, ensuring durability and reliability for a connection that lasts. The connector is designed to establish an open industry connector standard, allowing for compatibility with a wide array of platforms and manufacturers. This makes it a versatile and effective solution across multiple applications and industries.
- 120501 series Micro-Change (M12), 5 poles, female (straight) to male (straight) double-ended cordset
- Cable jacket colour is grey, coupling style is threaded
- IP67 rated, maximum current per contact is 16A
- Cable diameter is 11.30mm, cable length is 1000.04cm
- WSOR TPU cable jacket material, TPE connector body material
- Brass contact material, gold mating plating material, nickel-plated brass coupling nut
- L-coded, operating temperature range from -25° to +85°C
- Maximum voltage rating is 63V AC/DC
- UL 21215 wire/cable type
- 14AWG wire size
Product details
| Connector Type A: Micro-Change Receptacle |
| Connector Type B: Micro-Change Plug |
| No. of Positions: 5 Positions |
| Cable Length - Metric: 10m |
| Cable Length - Imperial: 32.8ft |
| Product Range: 120501 Series |
Other details
| Brand | MOLEX |
| Part Number | 1205010105 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
