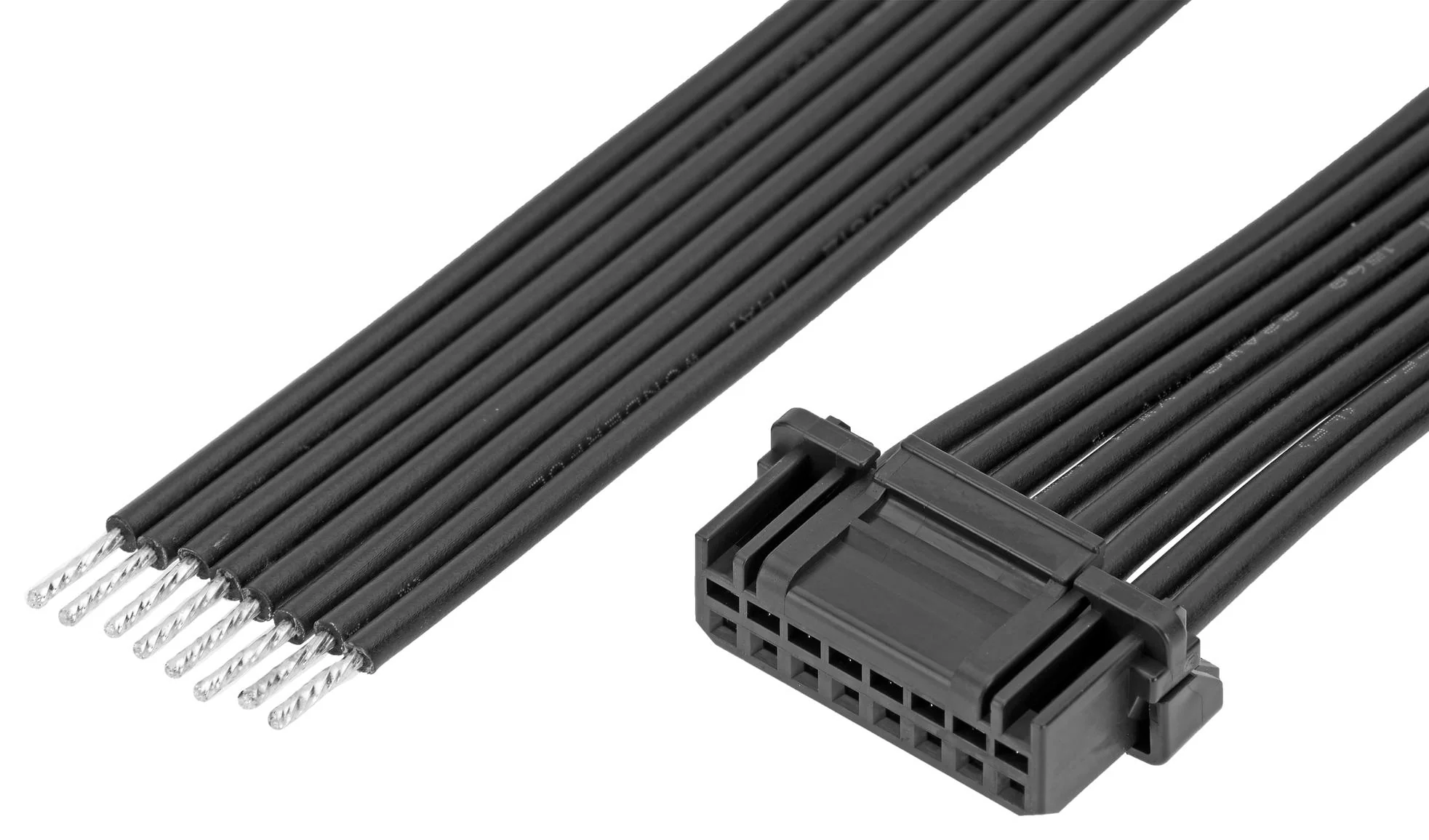

Molex 219653-1083 219653-1083 Cable Assembly Micro-One 2.0 Receptacle to Free End 8 Ways 2 mm 1 Row 300 11.8 "

Off-the-Shelf (OTS) Micro-One 2.0 cable assemblies provide a 2mm-pitch solution with an integrated independent secondary lock and are available in a variety of circuit sizes and lengths for a range of design options. Applications include consumer (air conditioner, refrigerator, vacuum cleaners, washing machine, water heaters/boilers) and industrial (drones, factory automation, power tools, robotics, test equipments, vending machines).

• 219653 series micro-one female-to-pigtail off-the-shelf (OTS) cable assembly
• UL certification helps ensure reliability
• Independent secondary lock (ISL) detects incomplete terminal insertion
• 2mm pitch low-profile design reduces weight and saves space
• Offers design flexibility
• Glow wire capable
• Maximum voltage of 250V, maximum current of 4A per contact
• Maximum mechanical durability of 30 cycles
• Black colour housing, copper alloy contact, polyamide resin
• Operating temperature range from -40 to +105Ë�C

Other details

Brand	MOLEX
Part Number	219653-1083
Quantity	Each
Technical Data Sheet EN
Drawing EN
