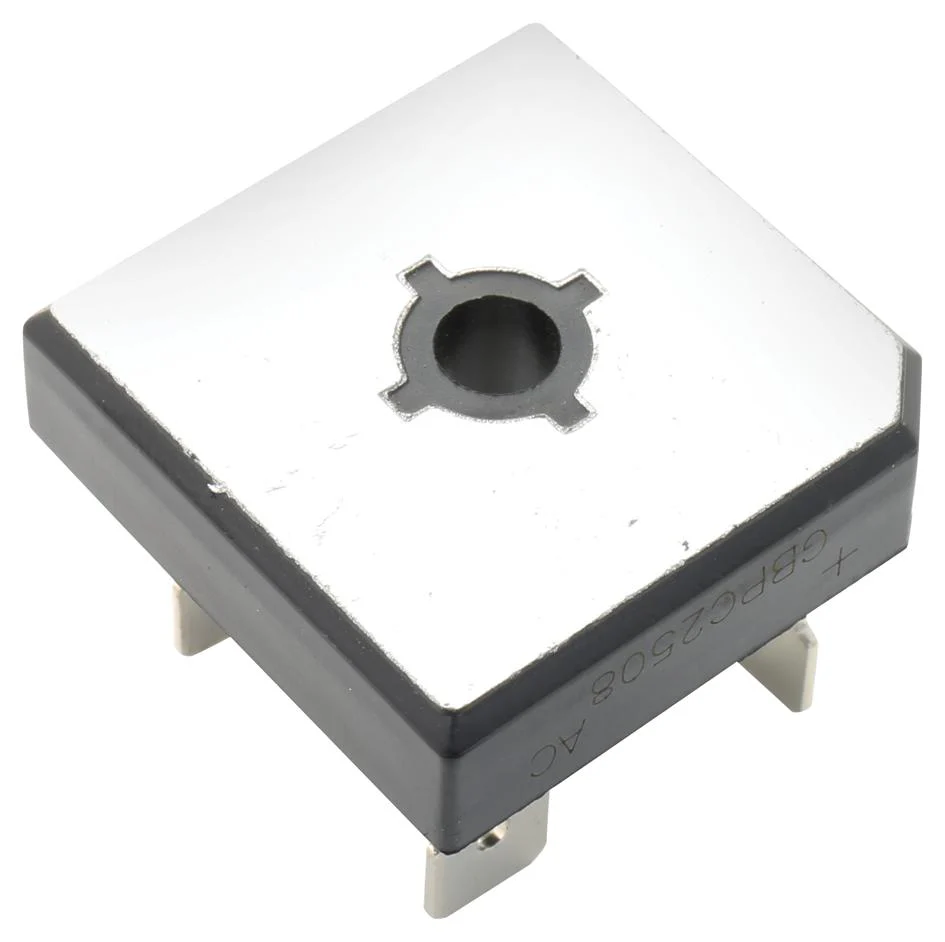

Multicomp PRO GBPC2508+ GBPC2508+ Bridge Rectifier Single Phase 800 V 25 A Module 1.1 4 Pins

The GBPC2508 from Multicomp Pro is a single phase bridge rectifier with solderable terminals. The rectifier bridge consists of four silicon junctions connected as a full bridge. Integrally moulded heatsink provide very low thermal resistance for maximum heat dissipation.

• 2500V Case to lead isolated voltage
• 560V Maximum RMS voltage
• 800V Maximum DC blocking voltage
• 300A Peak forward surge current
• 1.5°C/W Typical thermal resistance
• Plastic material
• Isolated voltage from case to lead over 2500V
• Peak forward surge current, single sine wave superimposed on rated load is 300V
• Maximum instantaneous forward voltage drop per element VF at 12.5A is 1.1V
• Multicomp Pro products are rated 4.6 out of 5 stars

• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Applications

Mains Rectification

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MULTICOMP PRO
Part Number	GBPC2508+
Quantity	Each
