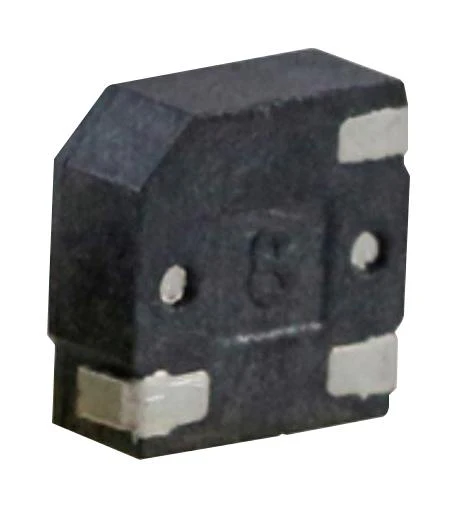

MULTICOMP PRO MCABT-475-RC Buzzer, 70 dB, 4 kHZ, 90 mA, 2 to 4 VAC, SMD
Product Overview
MCABT-475-RC is a Surface mount buzzer with small dimension of 4mm × 4mm × 2mm.
- Operating voltage is 2-4Vp-p, reflow solderable but not washable
- Sound output from the top of the device
- Requires additional circuitry to generate sound
- 3Vp-p rated voltage (square wave)
- 90mA max rated current, 70dB min sound output at 10cm
- 4000Hz resonant frequency, 17 ±3ohm coil resistance
- LCP housing material, brass lead pin material
- Operating temperature range from -40°C to +85°C
Product details
Other details
| Brand | MULTICOMP PRO |
| Part Number | MCABT-475-RC |
| Quantity | Each |
| Technical Data Sheet EN |  |
