Murata Power Solutions NDTD2412C Isolated Board Mount DC/DC Converter Low Profile ITE 2 Output 3 W 12 V 125 mA -12

The NDTD2412C is a 2-output 3W board-mount isolated DC/DC Converter offering 2:1 input voltage range. The device delivers 3W output power up to 85?C without heat-sinking. A fly-back oscillator design with isolated feed-back is used to give regulation over the full operating range of 25 to 100% of full load. It is strongly recommended that external capacitors be used on input and output to guarantee performance over full load and input voltage range.

• Industry standard foot-print
• Dual isolated output
• Short-circuit protection
• No heat-sink required
• Internal SMD construction
• Fully encapsulated
• Power density 0.9W/cm?
• 82% Minimum efficiency
• 35pF Isolation capacitance

Applications

Power Management, Industrial

Product details

Power Supply Approvals	ITE
No. of Outputs	2 Output
Output Power Max	3W
Output Voltage - Output 1	12V
Output Current - Output 1	125mA
Output Voltage - Output 2	-12V
Output Current - Output 2	125mA
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	NDTD Series
Input Voltage DC Min	18V
Input Voltage DC Max	36V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	DIP
DC / DC Converter Mounting	Through Hole

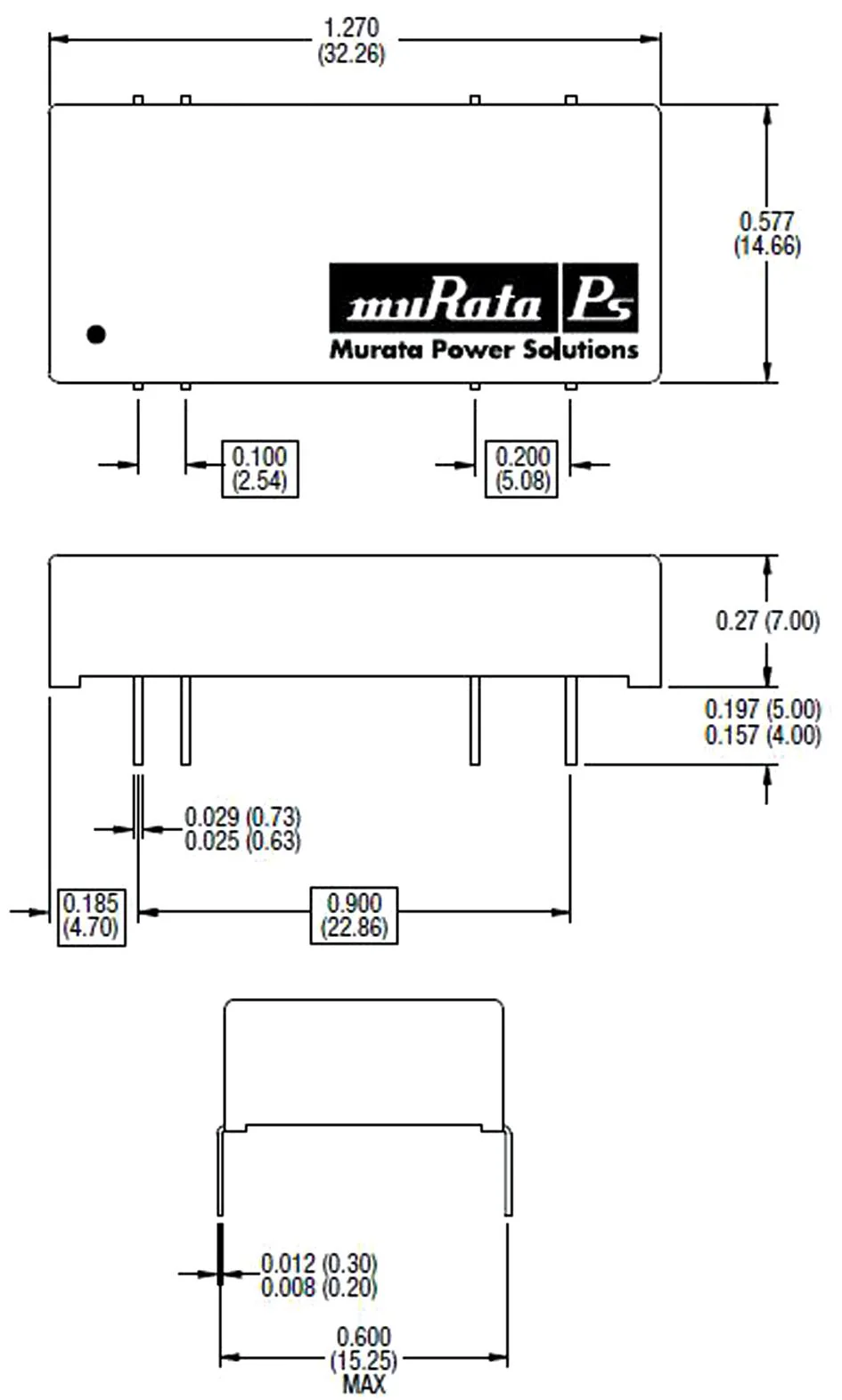

Width	14.66mm
Height	7mm
Depth	32.26mm

Other details

Brand	MURATA POWER SOLUTIONS
Part Number	NDTD2412C
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
3D Product Image EN
