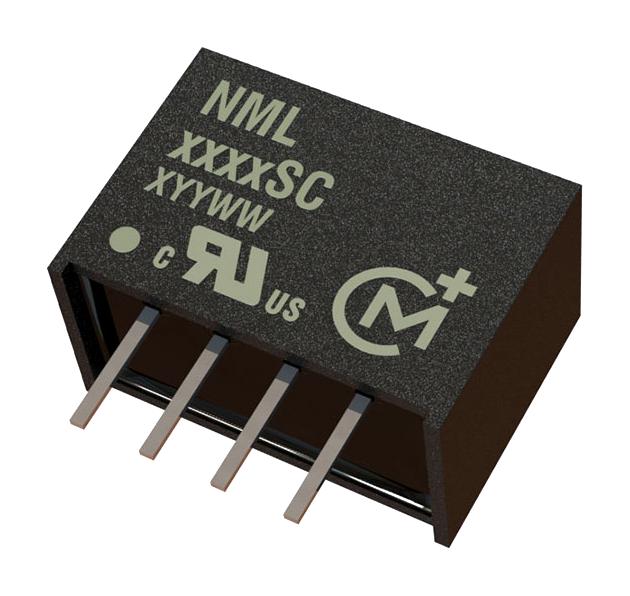

Murata Power Solutions NML1212SC NML1212SC Isolated Through Hole DC/DC Converter 1kV Isolation ITE 1:1 2 W 1 Output 12 V 167 mA

The NML1212SC is an isolated single-output DC/DC Converter particularly suited to isolating and converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from -40°C and full 2W output at 85°C. Pin compatibility with the NME and LME ensures ease of upgradeability.

• Industry standard pin-out
• No heat-sink required
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• No external components required
• No electrolytic or tantalum capacitors
• 1kVDC Isolation
• 2.01W/cm³ Power density
• 1.05cm² Footprint
• 85% Efficiency

• 46pF Isolation capacitance
• 1156µs Start-up time

Applications

Signal Processing, Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MURATA POWER SOLUTIONS
Part Number	NML1212SC
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
3D Product Image EN
CAD Multiple Formats EN
