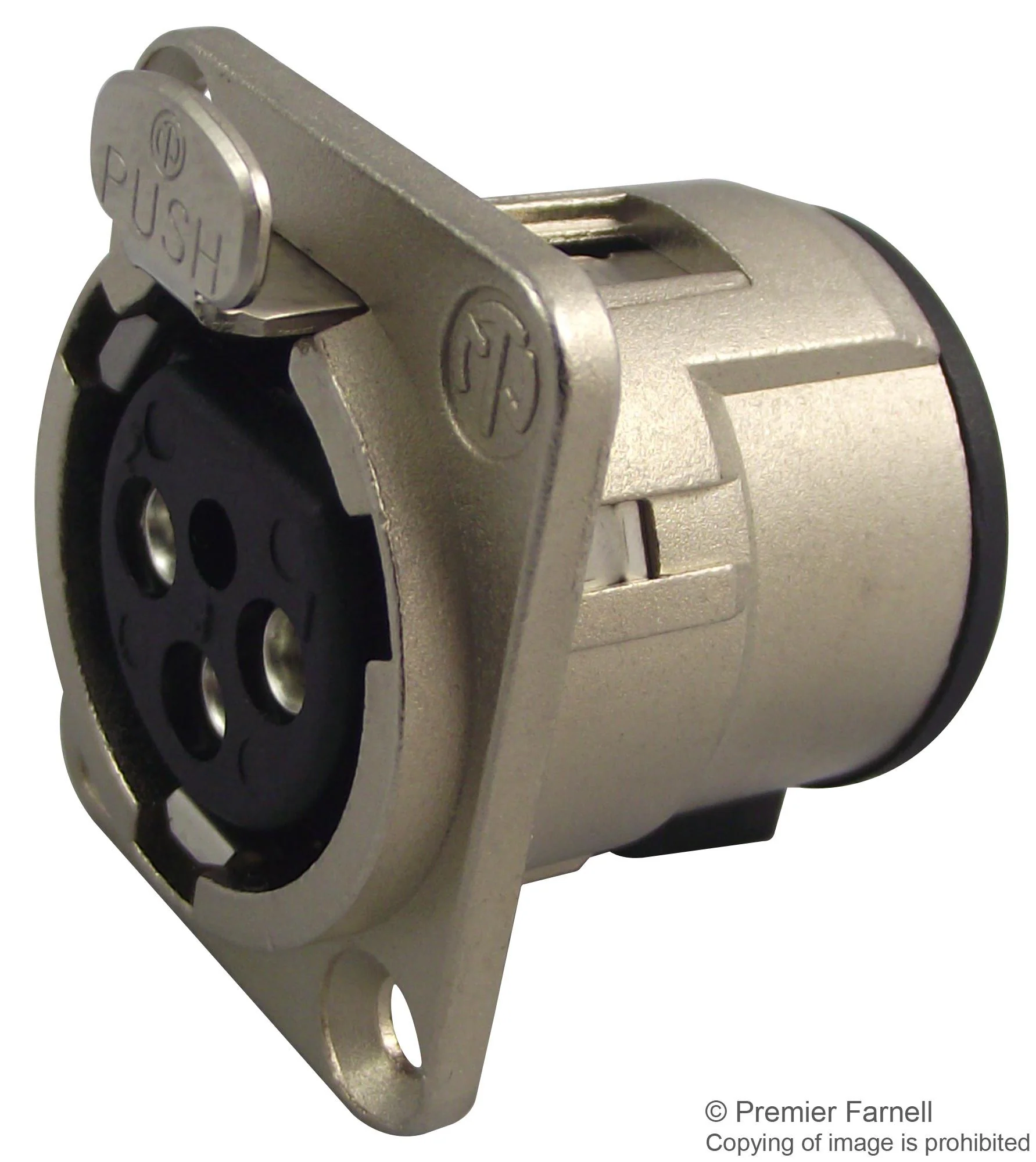

Name: NEUTRIK NC3FDV XLR Audio Connector, 3 Contacts, Socket, PCB Mount, Gold Plated Contacts, Metal Body, D Series
Brand: Tanotis
SKU: neutrik-nc3fdv-xlr-audio-connector-3-contacts-socket-pcb-mount-gold-plated-contacts-metal-body-d-series
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Account

Home Store

NEUTRIK NC3FDV XLR Audio Connector, 3 Contacts, Socket, PCB Mount, Gold Plated Contacts, Metal Body, D Series

The NC3FDV is a 3-pole Female Receptacle with silver over nickel plated bronze contacts, nickel housing. it has polyamide insert, latch locking device, nickel-plated zinc die-cast shell and steel Ck67 locking element. This D series vertical PCB mount receptacle has removable insert from shell for ease assembling and testing of PCB before assembling into housing.

D-shaped metal shell
Optimal RF protection using 3 shield contacts
UL94HB Flammability rating
IP40 Protection rating
Complies with IEC 61076-2-103 standard
Solderability complies with IEC 68-2-20 standard
<=5mR Contact resistance
>10GR Insulation resistance
6A Current rating per contact
<50V Voltage rating

-30 to +80ï¿½C Temperature range

Applications

Audio

Product details

No. of Contacts	3Contacts
Contact Plating	Gold Plated Contacts
Gender	Socket
Product Range	D Series
Connector Body Material	Metal Body
Connector Mounting	PCB Mount

Other details

Brand	NEUTRIK
Part Number	NC3FDV
Quantity	Each
Technical Data Sheet EN
