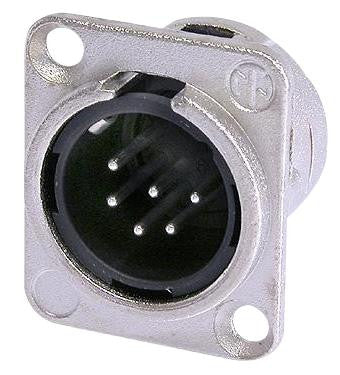

NEUTRIK NC6MDL1 XLR Audio Connector, 6 Contacts, Plug, Panel Mount, Silver Plated Contacts, Metal Body, DL Series
NEUTRIK NC6MDL1 XLR Audio Connector, 6 Contacts, Plug, Panel Mount, Silver Plated Contacts, Metal Body, DL Series
- Robust D metal shell
- Metal shell offer RF protection
- Standardized D-size 24mm panel cut-out
- UL94HB Flammability rating
- IP40 Protection rating
- Complies with IEC 61076-2-103 standard
- Solderability complies with IEC 68-2-20 standard
- <=5mR Contact resistance
- >10GR Insulation resistance
- 7.5A Current rating per contact
- <50V Voltage rating
- -30 to +80�C Temperature range
Applications
Audio, Consumer Electronics
Product details
| No. of Contacts | 6Contacts |
| Contact Plating | Silver Plated Contacts |
| Gender | Plug |
| Product Range | DL Series |
| Connector Body Material | Metal Body |
| Connector Mounting | Panel Mount |
Other details
| Brand | NEUTRIK |
| Part Number | NC6MDL1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
