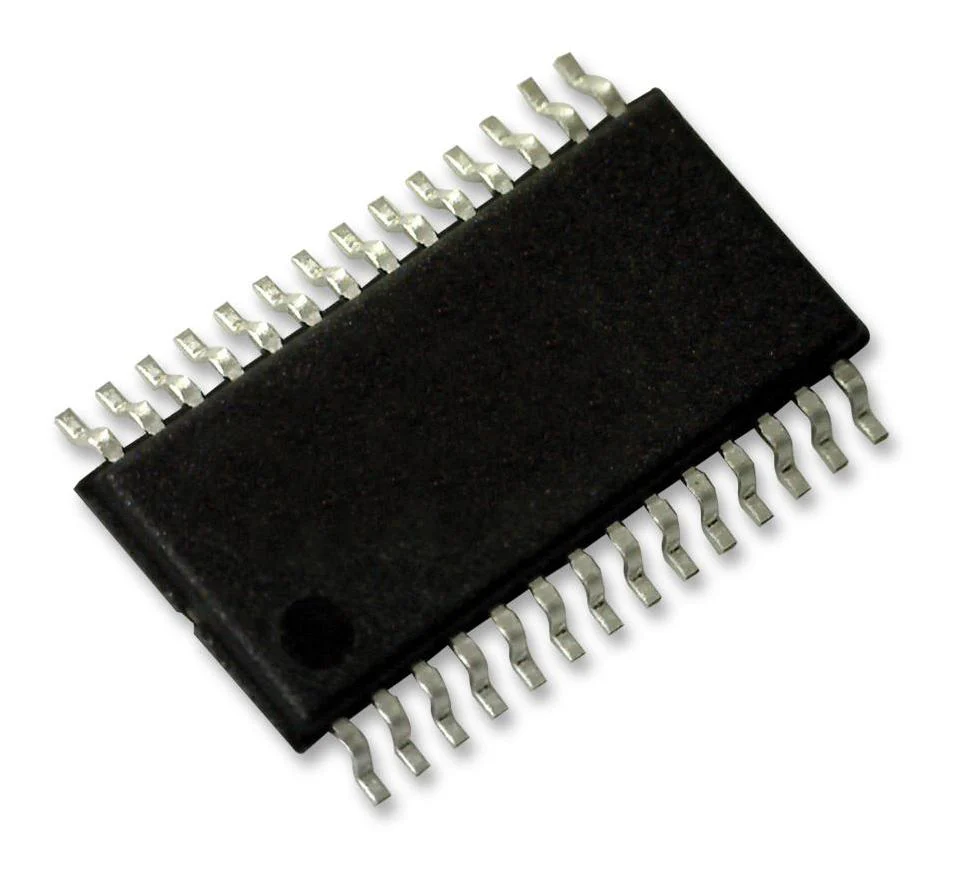

NXP PCA9685PW/Q900118 PCA9685PW/Q900118 LED Driver 12 Bit PWM AEC-Q100 16 Outputs 2.3 V to 5.5 Input 25 MHz 400 mA Out TSSOP-20
NXP PCA9685PW/Q900118 PCA9685PW/Q900118 LED Driver 12 Bit PWM AEC-Q100 16 Outputs 2.3 V to 5.5 Input 25 MHz 400 mA Out TSSOP-20
Product details
| Device Topology | - |
| No. of Outputs | 16Outputs |
| Output Current | 400mA |
| Output Voltage | - |
| Driver Case Style | TSSOP |
| No. of Pins | 28Pins |
| Input Voltage Min | 2.3V |
| Input Voltage Max | 5.5V |
| Switching Frequency | - |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | NXP |
| Part Number | PCA9685PW/Q900,118 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
