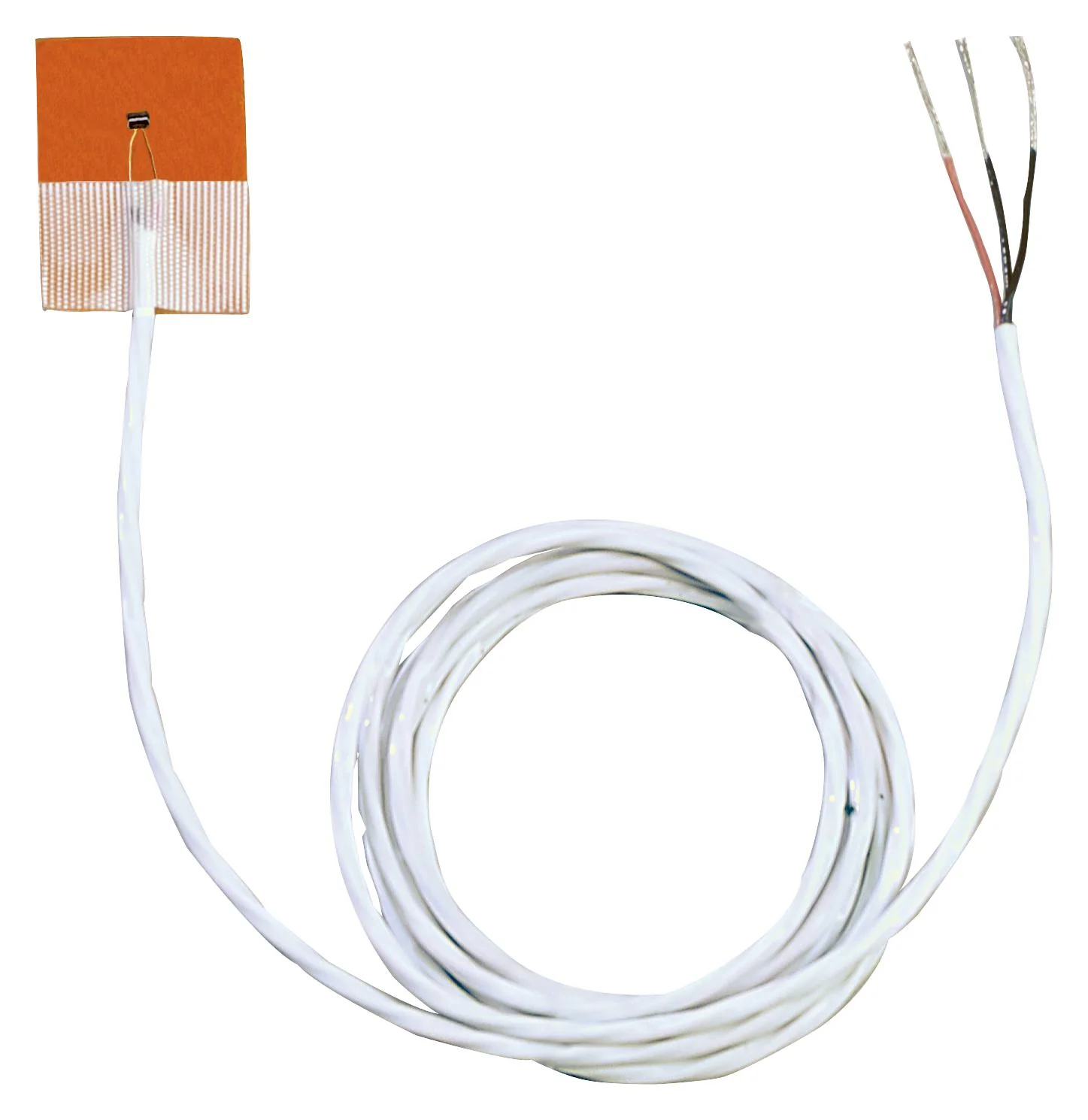

Omega SA1-RTD-4W-120 RTD Sensor Class A Thin-Film DIN Platinum -73 °C 260 100 ohm SA1-RTD Series

SA1-RTD surface-mount RTD temperature sensor mounts on flat or curved surfaces and provides Class A accuracy for critical temperature monitoring applications. The sensor can be easily applied using its self-adhesive backing, or permanently mounted using OMEGABOND® cements.

• 100 ohm DIN Class A (±0.06 ohm or ±0.15°C at 0°C) accuracy standard
• Easy-installation silicone-based, self-adhesive backing rated to 260°C (500°F)
• Sensor can be reapplied
• 290°C (554°F) short-term operation when used as a "cement-on"
• 4-wire Pt100
• 3m length

Other details

Brand	OMEGA
Part Number	SA1-RTD-4W-120
Quantity	Each
Technical Data Sheet EN
