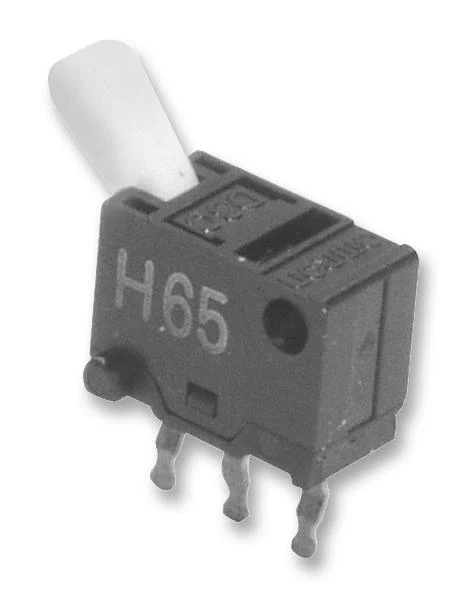

Omron D3C1210 D3C1210 Detector Switch D3C Spdt Solder 100 mA 30 V 6 mm

The D3C-1210 is a single-pole double-throw (SPDT) NO-COM-NC ultra-subminiature Detection Switch with silver-plated non-shorting slide contacts and rotary lever actuator. This D3C series microswitch features compact and lightweight with 3mm long stroke, the built-in slide mechanism allows selection of shorting or non-shorting switching timing to match the application.

• 100MR at 250VDC Minimum insulation resistance
• 50mR (initial value) Maximum contact resistance
• 1000m/s² Maximum durability shock resistance
• 300m/s² Maximum malfunction shock resistance
• IP00 Protection rating

Applications

Industrial

Other details

Brand	OMRON
Part Number	D3C1210
Quantity	Each
Technical Data Sheet EN
