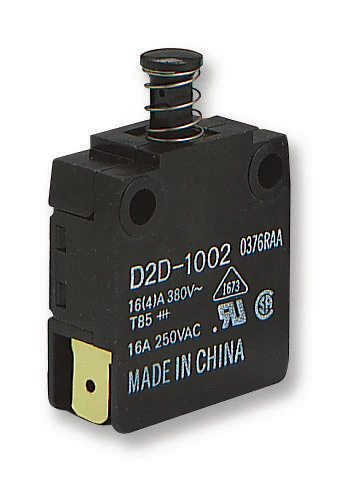

Omron Electronic Components D2D-1002 Safety Interlock Switch D2D SPST-NC Quick Connect Solder 250 V 16 A

The D2D series Door Interlock Power Switch offers minimum contact gap of 3mm required for power switches as standard equipment. Highly reliable design conforms to European safety standards. Safety considerations include a double return spring and direct drive positive contact opening feature. Also conforms to Class II of VDE Insulation. Pull-on lock model for easy maintenance is also available.

• 10mm to 1m/s Operating speed
• 300 Operations/minute maximum mechanical operating frequency
• 30 Operations/minute maximum electrical operating frequency
• 100MR at 500VDC Minimum insulation resistance
• 50mR Maximum contact resistance
• IP40 Protection rating
• Class II Degree of protection against electric shock
• -25 to 85°C Ambient operating temperature

Applications

Industrial, Safety

Other details

Brand	OMRON ELECTRONIC COMPONENTS
Part Number	D2D-1002
Quantity	Each
Technical Data Sheet EN
