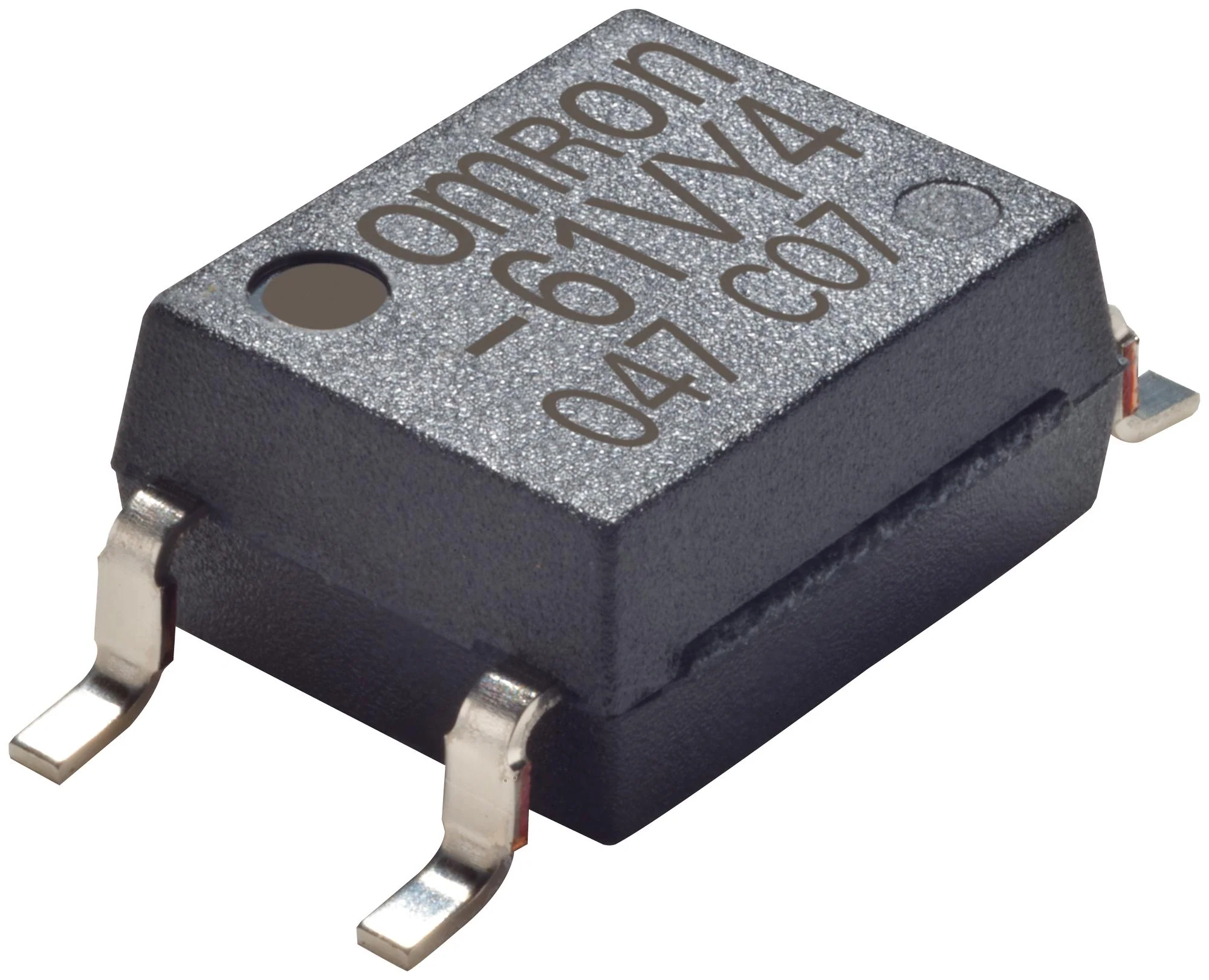

OMRON ELECTRONIC COMPONENTS G3VM-61VY4 MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 700 mA, SOP-4, Surface Mount
OMRON ELECTRONIC COMPONENTS G3VM-61VY4 MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 700 mA, SOP-4, Surface Mount
G3VM-61VY4 is a high-sensitivity MOSFET relay in SOP 4-pin package contribute to equipment power consumption reduction. Typical application includes semiconductor test equipment, test & measurement equipment, communication equipment, security equipment, industrial equipment and amusement equipment.
- 1A (SPST-NO) contact form
- Supports low power switching for up to 60V loads
- Dielectric strength between I/O is 3.750V
- Surface mounting terminals
- 1mA maximum driving current
- Ambient operating temperature range from -40°C to 85°C
Product details
| Contact Form: SPST-NO (1 Form A) |
| Load Type: AC / DC |
| Load Voltage Max: 60V |
| Load Current: 700mA |
| MOSFET Relay Package Style: SOP-4 |
| Relay Mounting: Surface Mount |
| Relay Terminals: Solder |
| On State Resistance Max: 0.3ohm |
| Isolation Voltage: 3.75kV |
| I/O Capacitance Typ: 0.8pF |
| Off State Leakage Current Max: 1µA |
| Product Range: G3VM Series |
Other details
| Brand | OMRON ELECTRONIC COMPONENTS |
| Part Number | G3VM-61VY4 |
| Quantity | Each |
| Technical Data Sheet EN |  |
