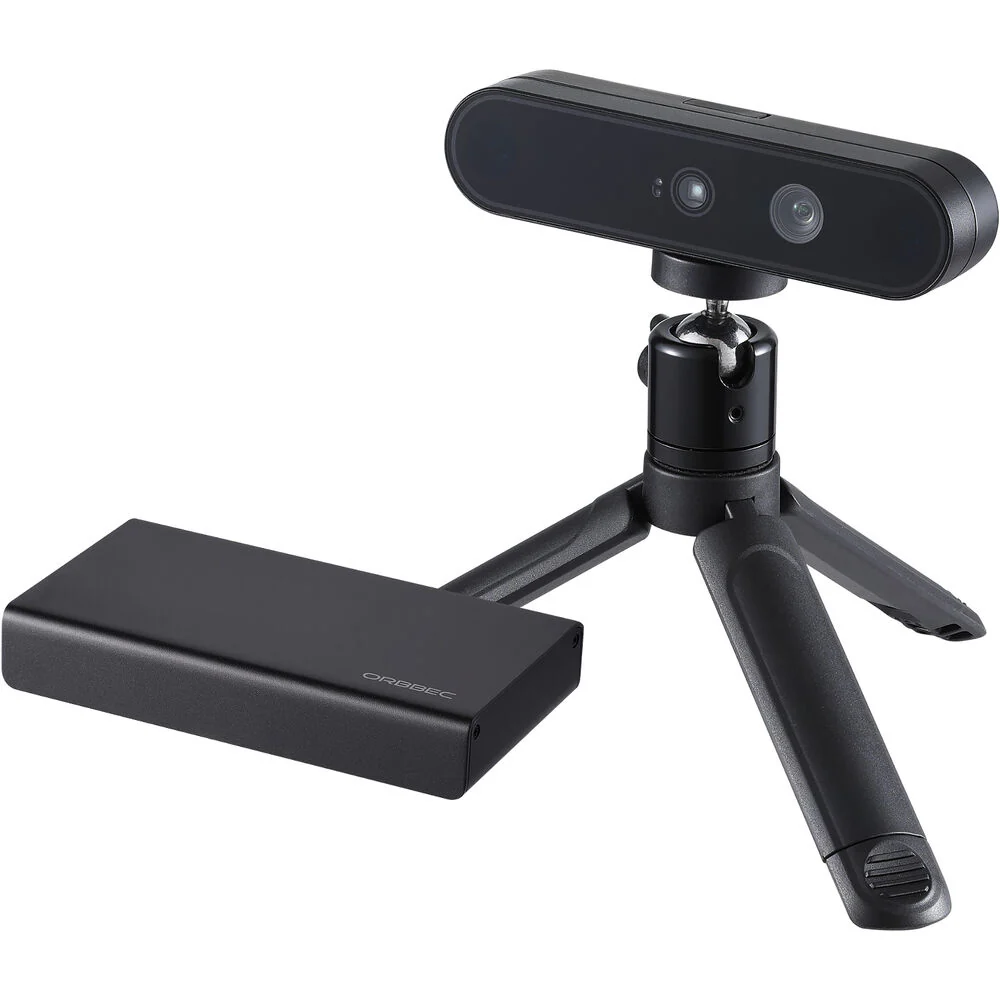

Orbbec Gemini 2 XL 3D Camera
HomeStore

Orbbec Gemini 2 XL 3D Camera

Orbbec Gemini 2 XL 3D Camera

Orbbec Gemini 2 XL Overview

The Gemini 2 XL 3D Camera from Orbbec is a long-range camera that is suitable for outdoor use. It is based on Infrared Enhanced Stereo technology with a baseline of 100mm and is equipped with Orbbec's OBox computing module. It delivers resolutions of up to 1280 x 800 at 5, 10, 15, and 20 fps. It has a wide 101° diagonal field of view and advanced depth processing for conquering complex and demanding application scenarios. It operates using USB-C 2.0, which provides data, Gigabit Ethernet, which provides data and power via PoE+, and a DC power input.

The Gemini 2 XL is easy to set up and operate with the Orbbec SDK and delivers accurate and reliable data in various lighting conditions from pitch black to semi-outdoor. Also featured is a rolling shutter, plus wavelength sensitivity up to 850nm.

Features
  • Global shutter for RGB and IR cameras
  • Wide field of view at 91° horizontal and 66° vertical
  • High quality depth data output from 1.3 to 65.5'
  • USB-C 2.0 & Gigabit Ethernet data connectivity
  • Internal IMU
  • Multi-camera synchronization

Items Included

  • Orbbec Gemini 2 XL 3D Camera
  • 12V/2A Power Supply
  • USB-C to USB-A Cable (to Host)
  • USB-C to USB-C Cable (Camera to OBox)
  • Tripod
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Orbbec Gemini 2 XL Specs

    General
    Wavelength
    850 nm
    Processing
    OBox Computing Module
    Technology
    Infrared Enhanced Stereo
    Shutter Type
    Global Shutter
    Baseline
    100mm
    Data Connection
    USB-C 2.0/Gigabit Ethernet
    IMU
  • 6 DoF
  • Frequency Range: 50 to 2000 Hz
  • Data Format: Float
    •
    Mirror Mode
    Supported, Non-Mirror by Default
    Operating Modes
    Unbinned Dense Default
  • High Accuracy, High Quality Depth Data

    Unbinned Sparse Default
  • Balanced Depth Accuracy and Power Consumption

    Binned Sparse Default
  • Low Power Mode, Supports 20 fps
    •
    RGB
  • 1280 x 800, 1280 x 720, and 800 x 600 at 5, 10, 15, and 20 fps
  • FoV: 94 x 68°
  • Format: RGB888/MJPEG

  • 640 x 400, and 640 x 360 at 5, 10, 15, and 20 fps
  • FoV: 94 x 68°
  • Format:RGB888/YUYV/MJPEG
    •
    Supported Functions
    D2C, Multi-Camera Sync
    Binned Sparse Default
  • 640 x 400 and 320 x 200 at 5, 10, 15, and 20 fps
  • FoV: 91 x 66°
  • Optimal Range: 1.3 to 16.4' / 0.4 to 5.0 m
  • Format: Y16/RVL
    •
    Unbinned Dense Default
  • 1280 x 800 and 640 x 400 at 5 and 10 fps
  • FoV: 91 x 66°
  • Range: 1.3 to 65.6' / 0.4 to 20 m
  • Optimal Range: 1.3 to 32.8' / 0.4 to 10 m
  • Format: Y16/RVL
    •
    Unbinned Sparse Default
  • 1280 x 800 and 640 x 400 at 5 and 10 fps
  • FoV: 91 x 66°
  • Range: 1.3 to 65.6' / 0.4 to 20 m
  • Optimal Range: 1.3 to 32.8' / 0.4 to 10 m
  • Format: Y16/RVL
    •
    Inputs/Outputs
    USB I/O
    3 x USB-C 2.0 Female Input/Output
    Network
    1 x Gigabit Ethernet
    Sync
    8-Pin Multi-Camera Synchronization Interface
    Wireless
    Mobile App Compatible
    No
    Power
    Power Source
    DC Input, PoE
    Power Consumption
  • DC: Average < 6 W (Peak 12 W)
  • PoE: Average < 7 W (Peak 14 W)
    •
    Power Input
  • DC: 12 V/2 A
  • PoE+: 802.3at (30 W Max)
    •
    Physical
    Mounting
    1x 1/4"-20 UNC (Camera)
    2x M4 (Camera)
    4x M3 (OBox)
    Color
    Black
    Certifications
    RoHS, FCC, CE, REACH
    Cable Length
    Not Specified by Manufacturer
    Dimensions
    4.9 x 1.1 x 1" / 124 x 29 x 26 mm (Camera)
    5.1 x 2.8 x 0.9" / 130 x 71 x 22.5 mm (OBox)
    Weight
    5.4 oz / 152 g (Camera)
    9.8 oz / 279 g (OBox)
    Packaging Info
    Package Weight
    2.265 lb
    Box Dimensions (LxWxH)
    9.4 x 6.1 x 4.8"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $235.93

    Original: $786.43

    -70%
    Orbbec Gemini 2 XL 3D Camera—

    $786.43

    $235.93

    More Images

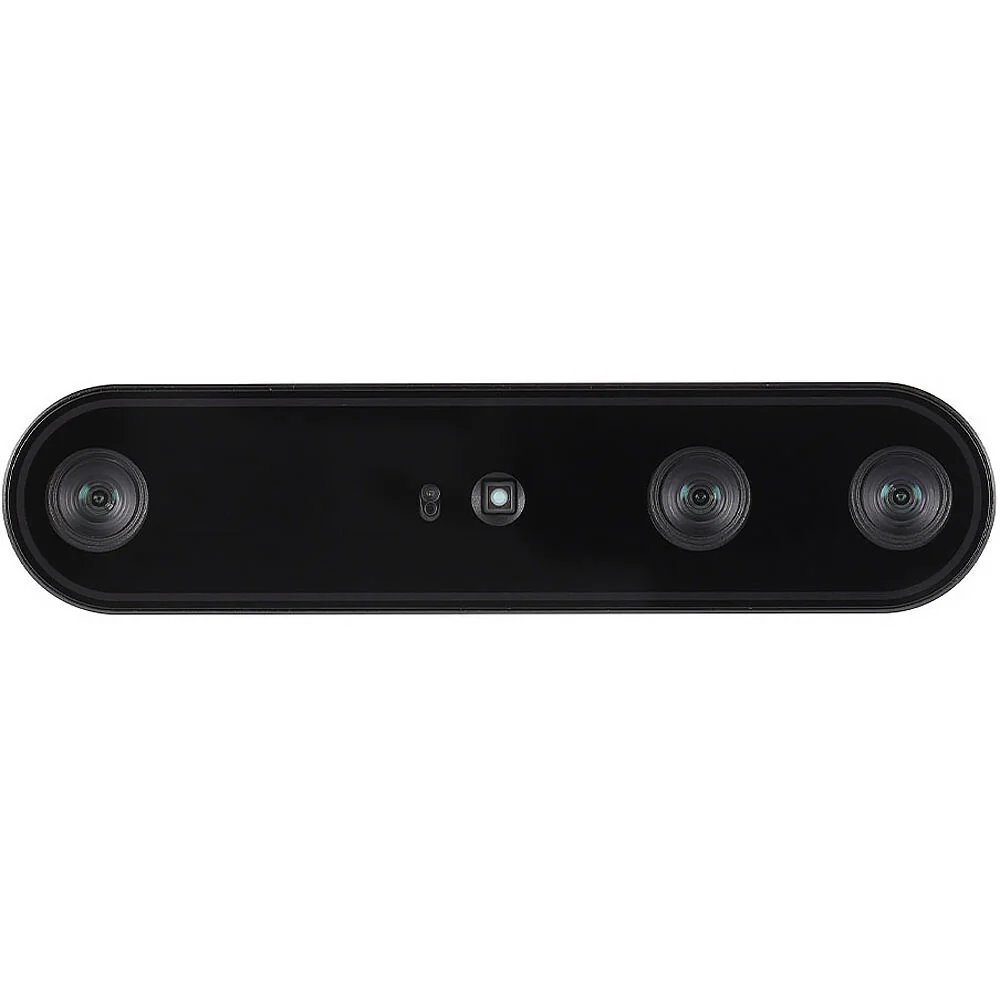

    Orbbec Gemini 2 XL 3D Camera - Image 2

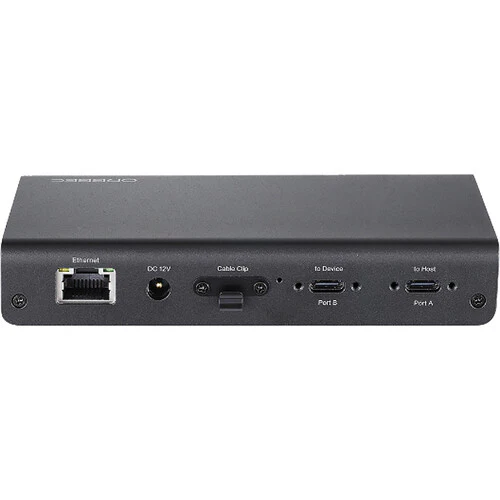

    Orbbec Gemini 2 XL 3D Camera - Image 3

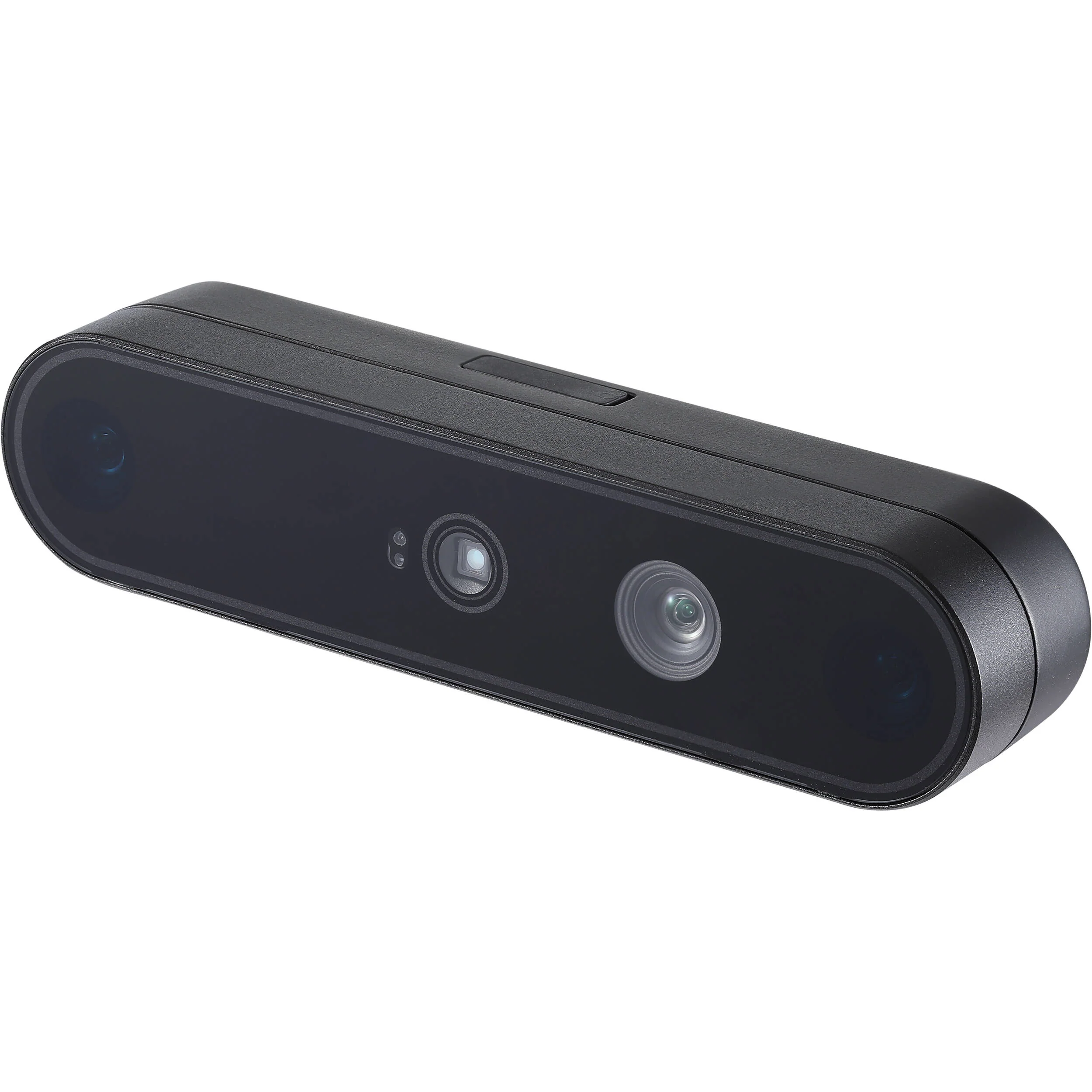

    Orbbec Gemini 2 XL 3D Camera - Image 4
