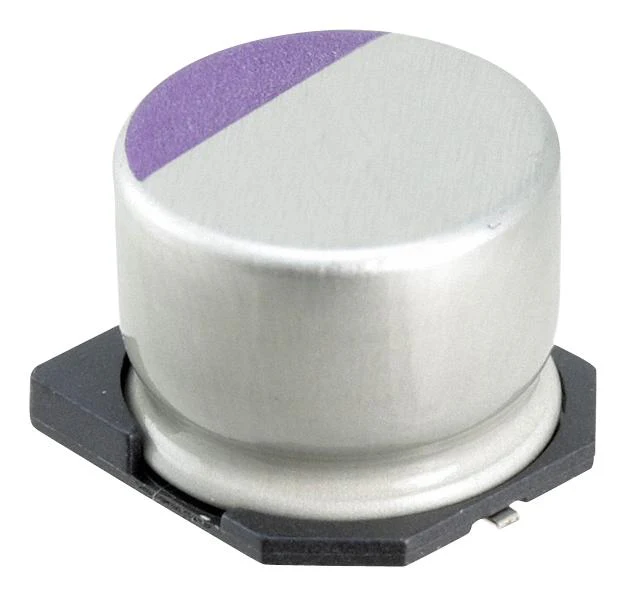

Panasonic 16SVPG330MX Polymer Aluminium Electrolytic Capacitor 330 µF 16 V Radial Can - SMD 0.016 ohm

SVPG series OS-CON� surface mount type conductive polymer aluminium solid capacitors offer low ESR and a high ripple current with an endurance of 5000h at 105°C. These OS-CON� Capacitors utilize aluminium and a highly conductive polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. The OS-CON� series parts are characterized by a long life and minimal ESR changes throughout the entire product line's rated temperature range.

• Low profile (height is 4.5mm maximum)
• Low ESR of 6.5mohm maximum
• Highly stable temperature characteristics
• Long lifetime at high temperatures
• Can be used in industrial applications

Other details

Brand	PANASONIC
Part Number	16SVPG330MX
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
