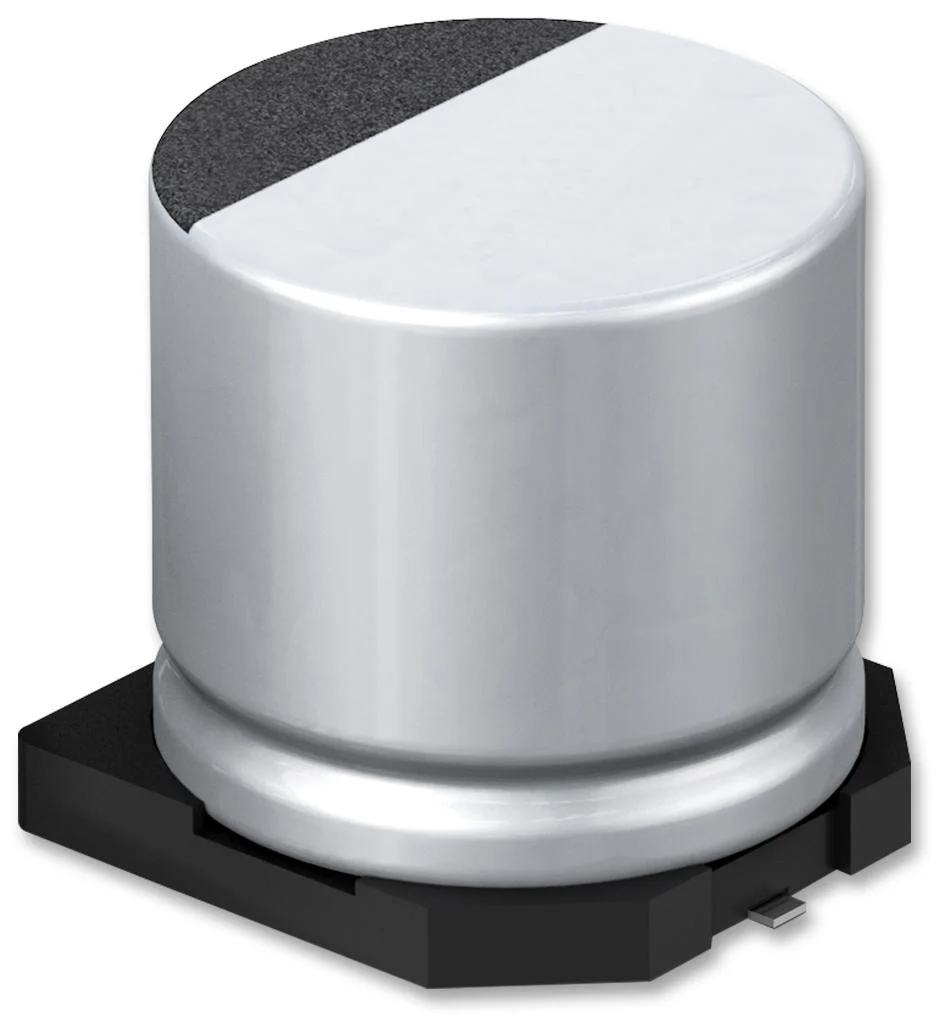

Panasonic EEEFT1C102AP SMD Aluminium Electrolytic Capacitor Radial Can - 1000 µF 16 V 0.06 ohm 2000 Hours @ 105°C

The Panasonic FT series capacitors are automotive grade type V, surface mount polarized aluminium electrolytic capacitors suitable for high temperature lead free reflow. The capacitance value ranges from 10µF to 2200µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form. FT series capacitors are very useful in a wide variety of applications where space is limited and high performance is crucial.

• High reliability
• Automotive grade AEC-Q200 compliant
• Rated voltage range of 6.3VDC to 50VDC
• Tolerance of ±20%
• Endurance of 2000h at 105°C
• Operating temperature range -55°C to 105°C

Other details

Brand	PANASONIC
Part Number	EEEFT1C102AP
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
CAD Multiple Formats EN
