Phoenix Contact RIF-1-RPT-LDP-24DC/2X21 RIF-1-RPT-LDP-24DC/2X21 General Purpose Relay RIF-1 Series Interface Non Latching Dpdt 24 VDC 8 A

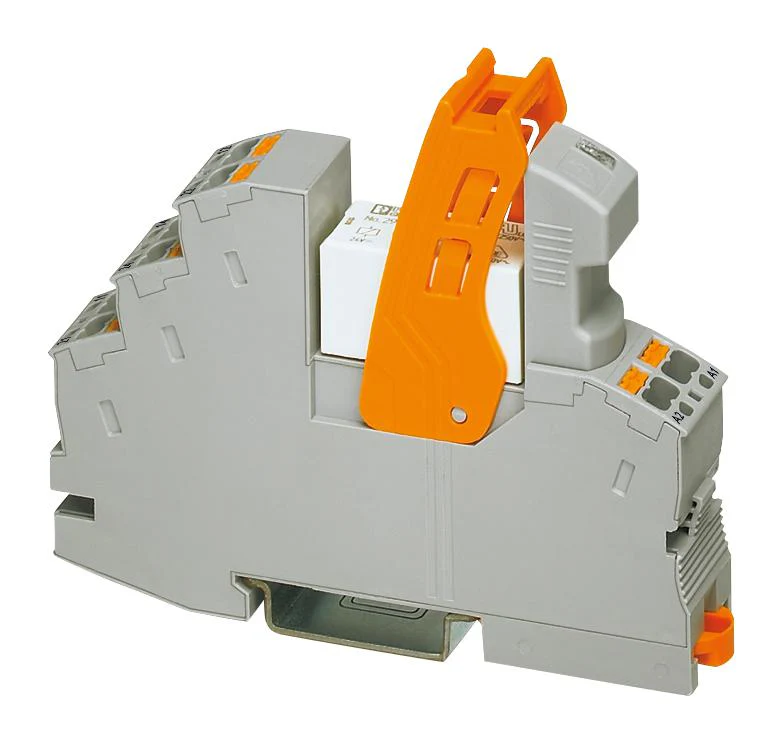

The RIF-1-RPT-LDP-24DC/2X21 is a yellow LED Pre-assembled Relay Module with push-in connection. It consists of relay base, power contact relay, plug-in display/suppressor module and retaining bracket.

• Damping and polarity protection diode protective circuit
• AgNi contacts
• IP20 Protection rating
• -40 to 70°C Operating temperature range

Applications

Industrial, Power Management

Other details

Brand	PHOENIX CONTACT
Part Number	RIF-1-RPT-LDP-24DC/2X21
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
