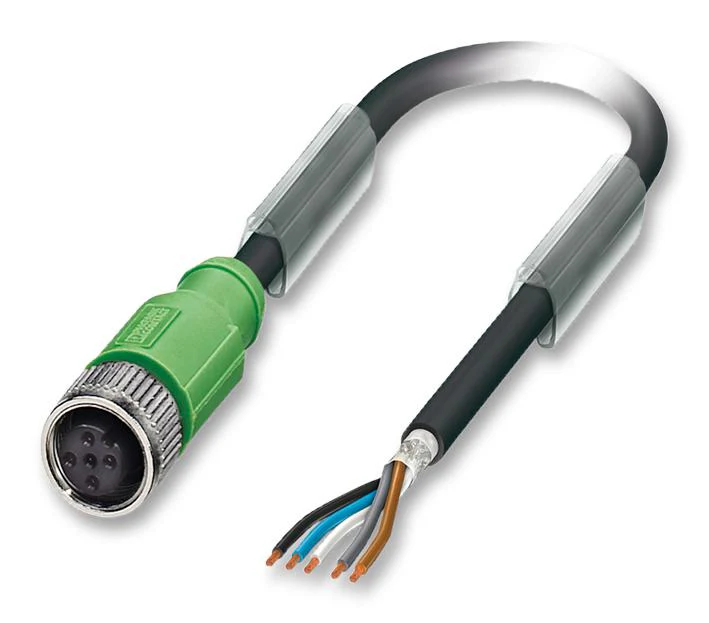

Phoenix Contact SAC-5P- 50-PUR/M12FS SH SAC-5P- SH Sensor Cable PUR M12 Receptacle Free End 5 Positions m 16.4 ft

The SAC-5P- 5,0-PUR/M12FS SH is a 5m A-coded halogen-free PUR shielded Sensor/Actuator Cable with 5-position M12 straight socket to free end connection. This sensor cable comes with CuSn contacts, glass-filled TPU contact carrier, hardly inflammable self-extinguishing TPU grip body and nickel-plated zinc die-cast knurls.

• Easy and safe - 100% Electrically tested plug-in components
• Reliable signal transmission - 360° Shielding in environments with electromagnetic interference
• Black-grey RAL 7021 external sheath
• PUR outer sheath and PP conductor insulation
• Tin-plated copper braided shield (85% coverage)
• 4A Rated current at 40°C
• 60V Rated voltage
• >=100MR Insulation resistance

Applications

Sensing & Instrumentation

Other details

Brand	PHOENIX CONTACT
Part Number	SAC-5P- 5,0-PUR/M12FS SH
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
