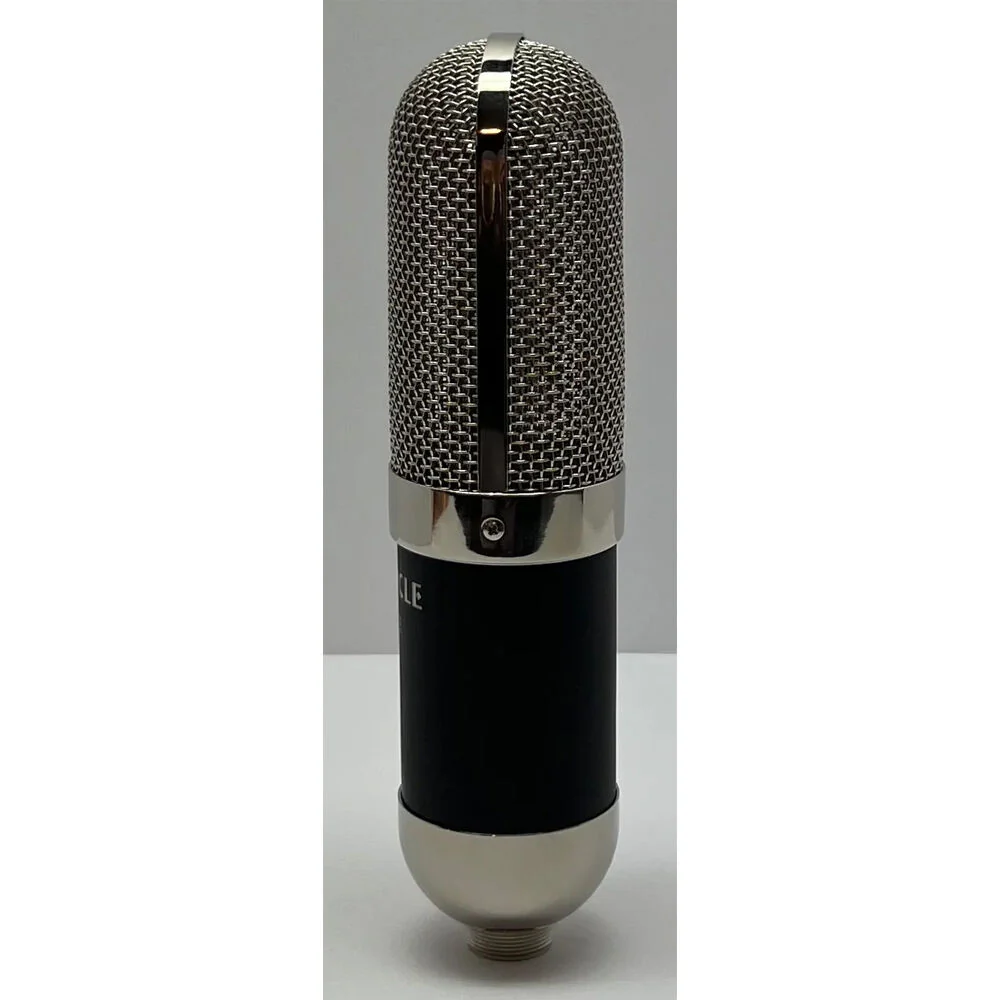

Pinnacle Microphones Vin-Jet Long-Ribbon Microphone with Stock Transformer (Stereo Pair)
Pinnacle Microphones D-VIN-ST Overview
This stereo pair of Vin-Jet Long-Ribbon Microphones with Stock Transformers from Cascade Microphones is best suited for recording vocals, guitars, drum overheads, strings sections, and orchestral performances in controlled studio situations.
The Vin-Jet's sensitive aluminum ribbon is suspended between two powerful neodymium magnets and delivers a warm & natural sound with fast transient response, extended sweet spots, and distortion-free, high-SPL handling (up to 135 dB).
Using the included Blumlein stereo bar, these two microphones can be positioned on top of each other at 90° for stereo recording. Their wide figure-8 patterns pick up the sound on the front and rear and leave large nulls on either side, for accurate spatial imaging and ambience capture.
The microphones are phantom-power-safe and equipped with an open grille (without screening added) for an open and detailed sound. The pair comes with two premium shockmounts, a microfiber cleaning cloth, and an aluminum flight case.
In the Box
- Pinnacle Microphones Vin-Jet Long-Ribbon Microphone with Stock Transformer (Stereo Pair)

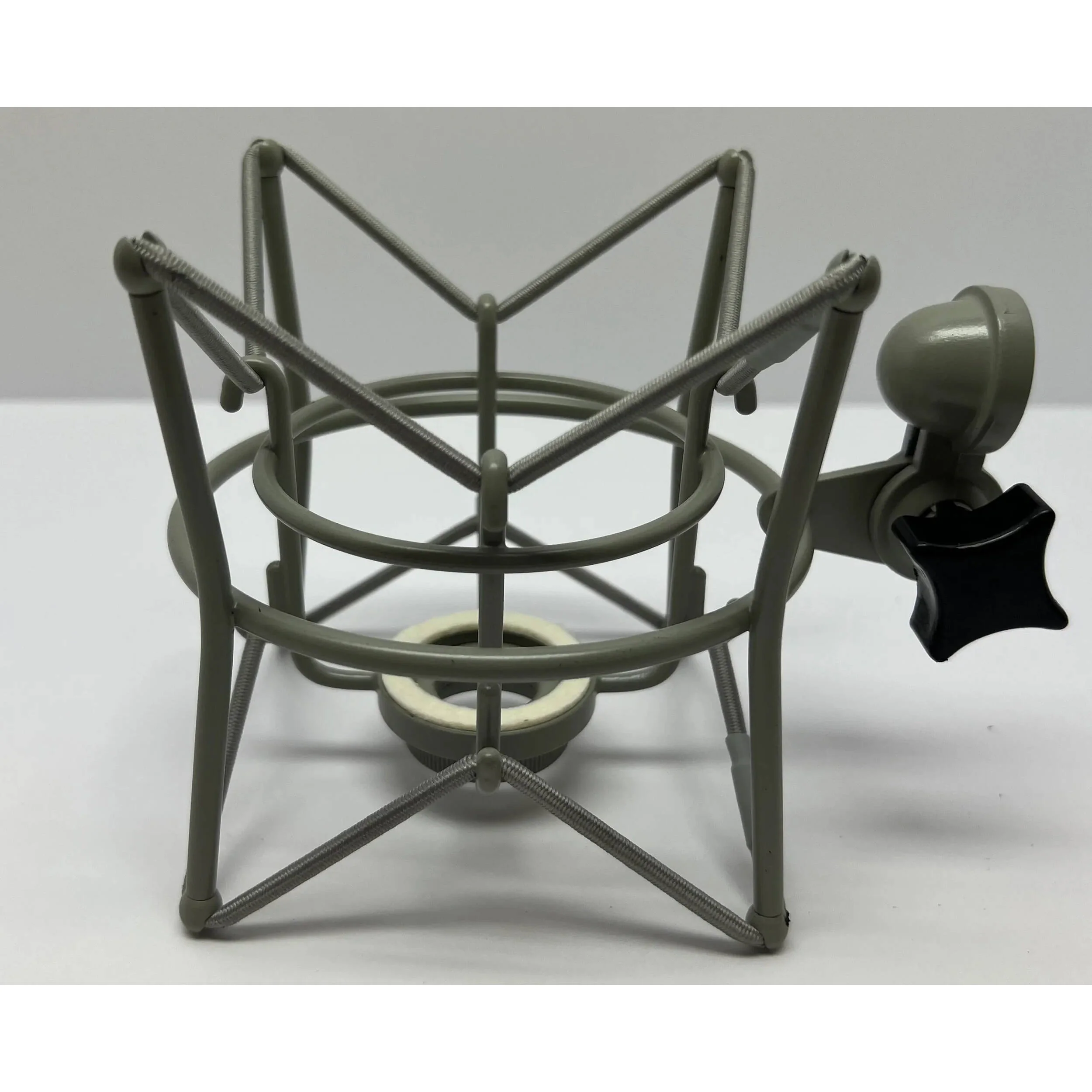

- 2 x Premium Shockmounts
- Stereo Blumlein Bar

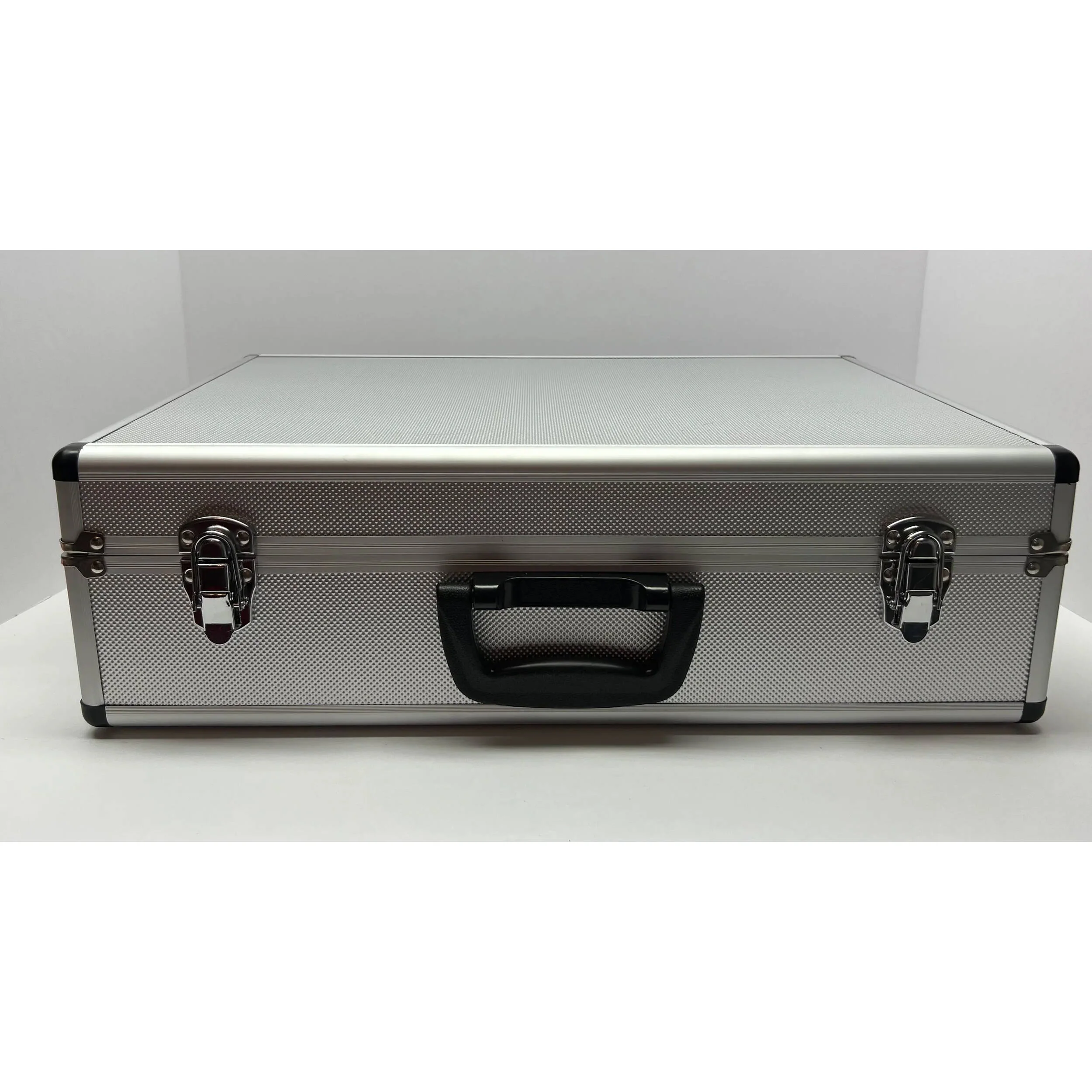

- Aluminum Flight Case
- Microfiber Cleaning Cloth
- Limited 5-Year Manufacturer Warranty
- Limited 1-Year Manufacturer Warranty (Ribbon Capsule)
Pinnacle Microphones D-VIN-ST Specs
| Capsule | Ribbon |
| Polar Pattern | Figure-8 |
| Frequency Range | 25 Hz to 16 kHz |
| Maximum SPL | 135 dB SPL |
| Sensitivity | 54.8 dB |
| Dimensions | ø: 2.12 x L: 8.38" / ø: 53.97 x L: 212.72 mm |
| Package Weight | 11.3 lb |
| Box Dimensions (LxWxH) | 19.4 x 14 x 6.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
