PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control
PTZCam PTZC-VIEWNDI Overview
Control your NDI PTZ cameras using NDI|HX2 and IP communication with this handy View NDI PTZ Controller with NDI|HX Preview and Joystick Control from PTZCam. The View NDI features 4D joystick, zoom rocker, and backlit button control with support for NDI|HX2 or later and the VISCA/ONVIF control protocols over IP. It enables you to control the speed of your pan, tilt, zoom, and lock moves, allows you to store up to 255 presets, it has 8-channel external tally support, and it incorporates a 3" display that shows a live preview.
The controller offers seven camera select buttons, knobs for pan/tilt/zoom speed control, iris buttons, and settings to control the finer settings on the PTZ cameras. It also features a key-touch beep feature that can be turned on and off. You can power the camera using a power adapter or via PoE (Power-over-Ethernet) on a supported network to save cable runs.
In the Box
- PTZCam View NDI PTZ Controller with NDI|HX Preview and Joystick Control
- Limited 1-Year Manufacturer Warranty
PTZCam PTZC-VIEWNDI Specs

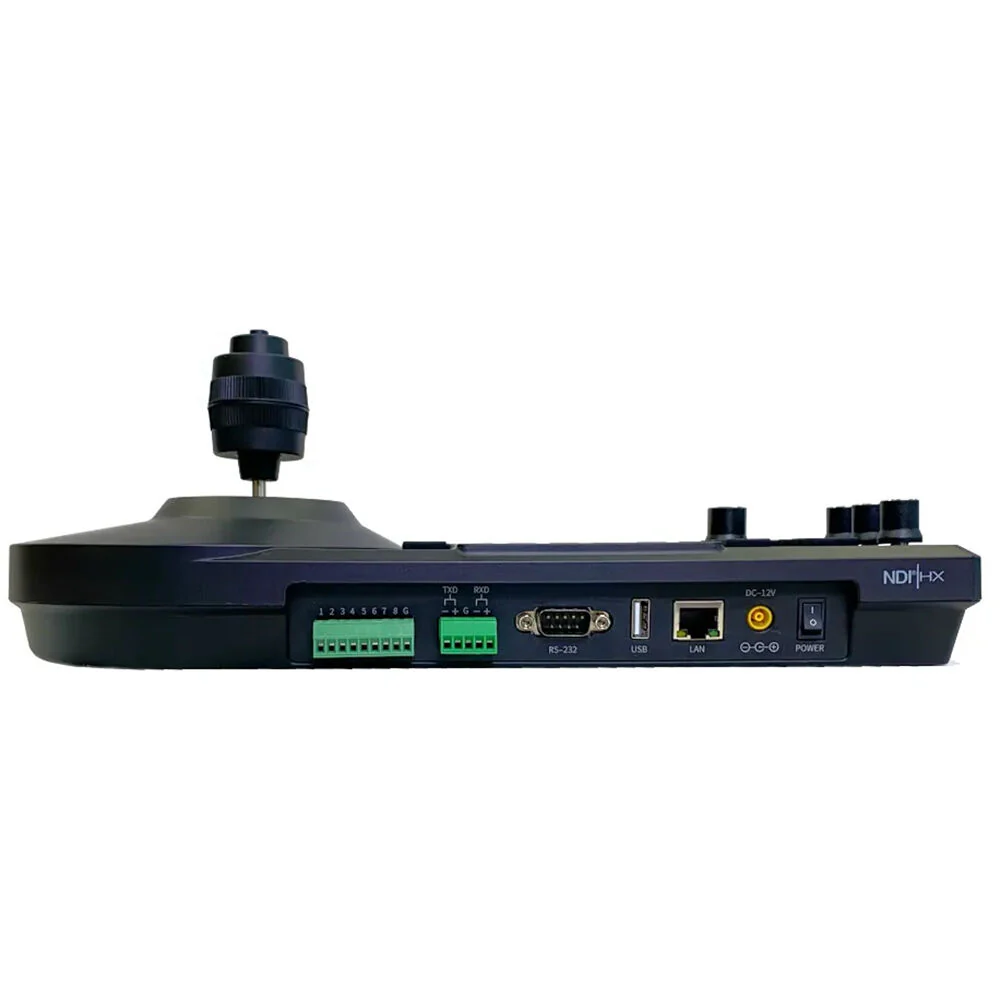

| Control I/O |
1x Block 9-Pin
1x Block 5-Pin 1x D-Sub 9-Pin (RS-232) |
| Video I/O |
1x RJ45 (NDI|HX2)
|
| Controls |
1x Joystick
1x Zoom Rocker 1x Focus Knob 1x Camera Movement Speed Knob 1x Gain Knob 1x Backlit Button 1x White Balance Button 1x Auto-Focus Button 7x Camera Selection Buttons |
| PoE Support |
PoE 802.3af
|
| Power Consumption |
3 W
|
| Security Lock Support |
No
|
| Supported Control Protocols |
Pelco-D
Pelco-P RS-232 RS-422 RS-485 VISCA |
| Control I/O |
1x Block 9-Pin
1x Block 5-Pin 1x D-Sub 9-Pin (RS-232) |
| Other I/O |
1x USB-A
|
| Video I/O |
1x RJ45 (NDI|HX2)
|
| Controls |
1x Joystick
1x Zoom Rocker 1x Focus Knob 1x Camera Movement Speed Knob 1x Gain Knob 1x Backlit Button 1x White Balance Button 1x Auto-Focus Button 7x Camera Selection Buttons |
| Presets |
255
|
| Display Size |
3"
|
| PoE Support |
PoE 802.3af
|
| Power Connectors |
1x Barrel / Coaxial
|
| Power Consumption |
3 W
|
| DC Input Power |
12 VDC at 0.25 A
|
| Security Lock Support |
No
|
| Dimensions |
17 x 10 x 7" / 43.2 x 25.4 x 17.8 cm
|
| Weight |
5 lb / 2.3 kg
|
