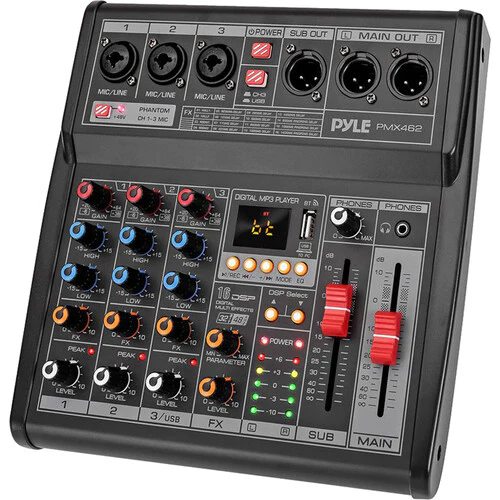

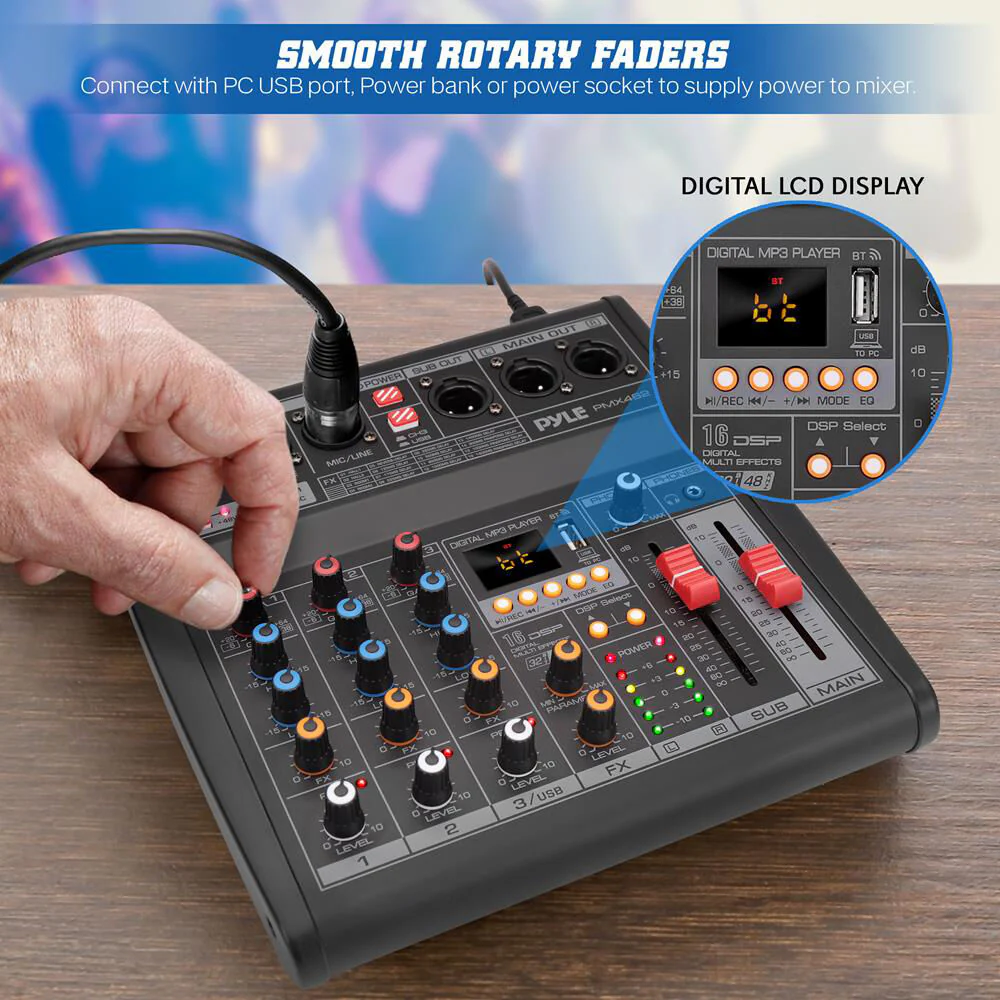

Pyle Pro PMX462 3-Channel Audio Mixer with Built-In FX and USB Interface
Pyle Pro PMX462 Overview
The PMX462 3-Channel Audio Mixer with Built-In FX and USB Interface from Pyle Pro is a compact and easy-to-use analog mixer, which can also function as a USB interface�combine versatility with functionality for a wide range of uses ideally suited for DJs, amateur engineers, musicians, and performers. With connection options for computers, MP3 players, wireless Bluetooth devices, dynamic and condenser mics, as well as line input signals, the PMX462 is a flexible introductory mixer at an affordable price.
Three channels with XLR-1/4" combo jacks along with 48V phantom power allow for a variety of inputs, from condenser mics, to dynamic mics, to keyboard instruments, dedicated 2-band shelving EQ, and pan per channel allow for plenty of efficient control over your input signals. The unit comes with 16 digital FX presets, powered by 32-bit / 48 kHz DSP with dedicated FX level control on each channel. An integrated sound card provides an easy connection to most Windows and Mac computers for recording, and the unit can even be fully powered by the USB bus. A separate subgroup output and wireless Bluetooth support provide further I/O options, handy for DJ and performance applications. With a light weight of only 3.7 pounds, an incredibly intuitive interface, and diverse connection options, the Pyle Pro PMX462 can be a useful and cost-effective all-in-one solution.
- Three mic/line combo inputs with rotary style controls
- Gain, level, FX amount, 2-band shelving EQ, and pan on each input channel
- Balanced XLR stereo main outputs
- XLR subgroup output with dedicated fader

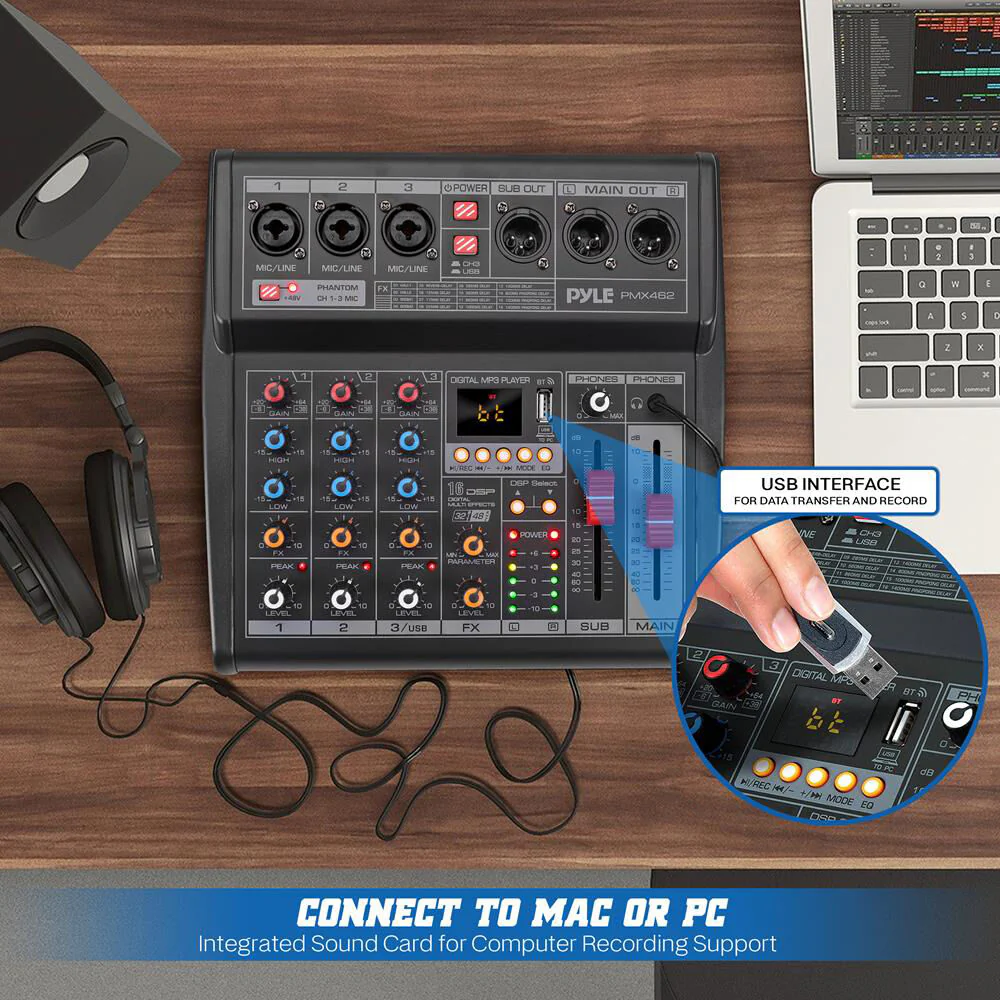

- USB interface with integrated sound card for PC and macOS recording support

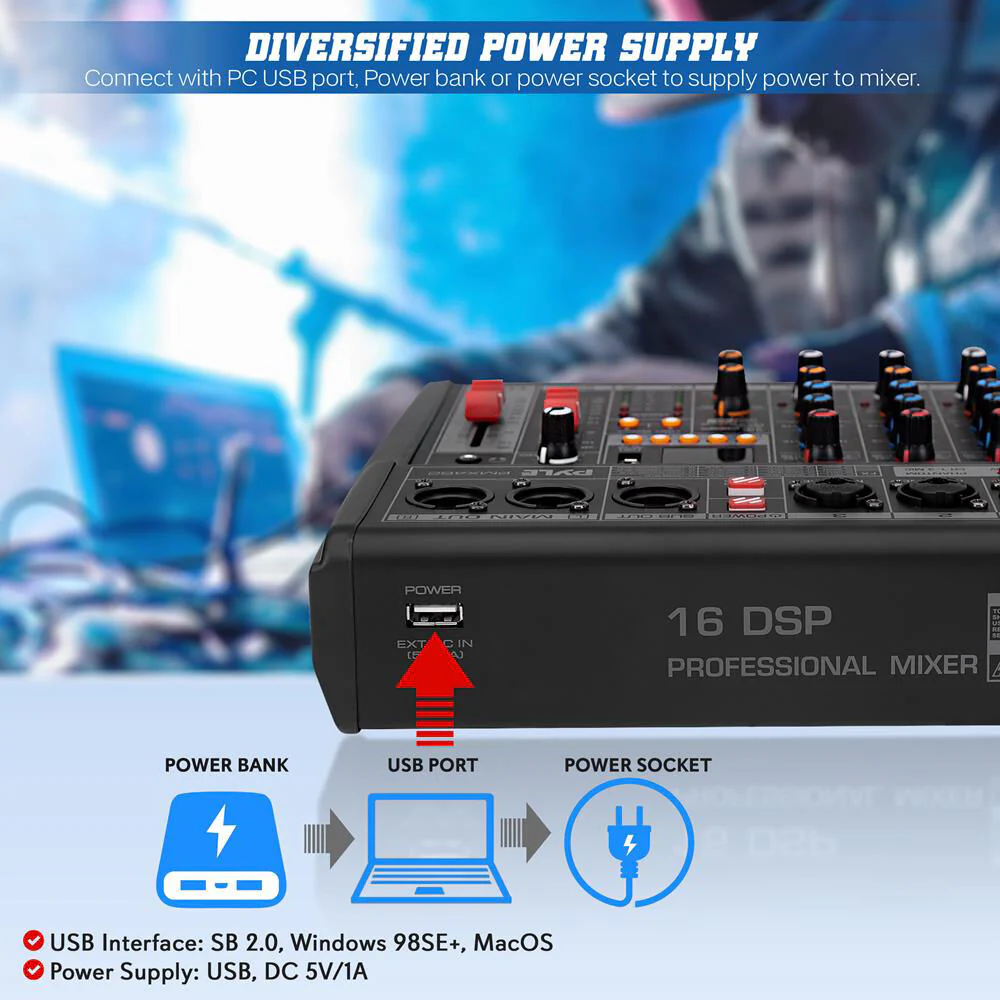

- USB bus power or 5V power supply

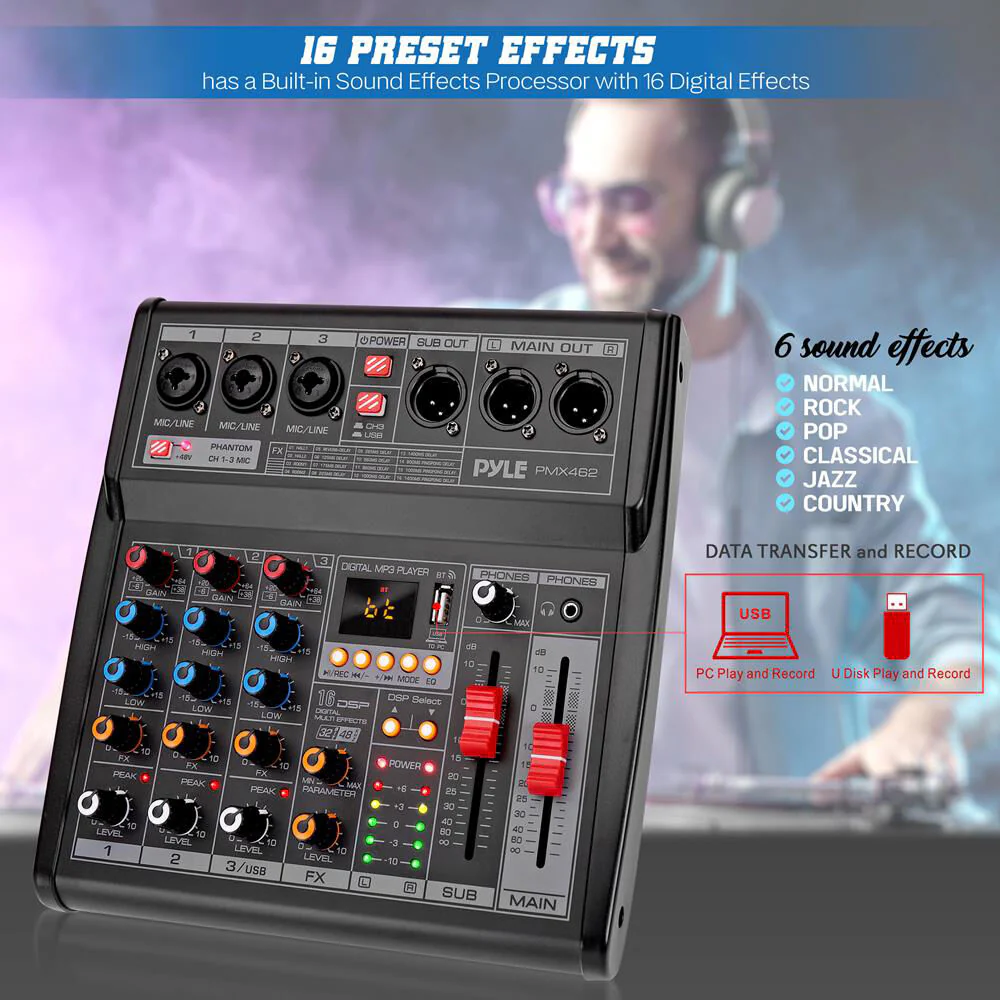

- DSP FX with 16 presets
- Bluetooth wireless input support
- Class-compliant driver installation

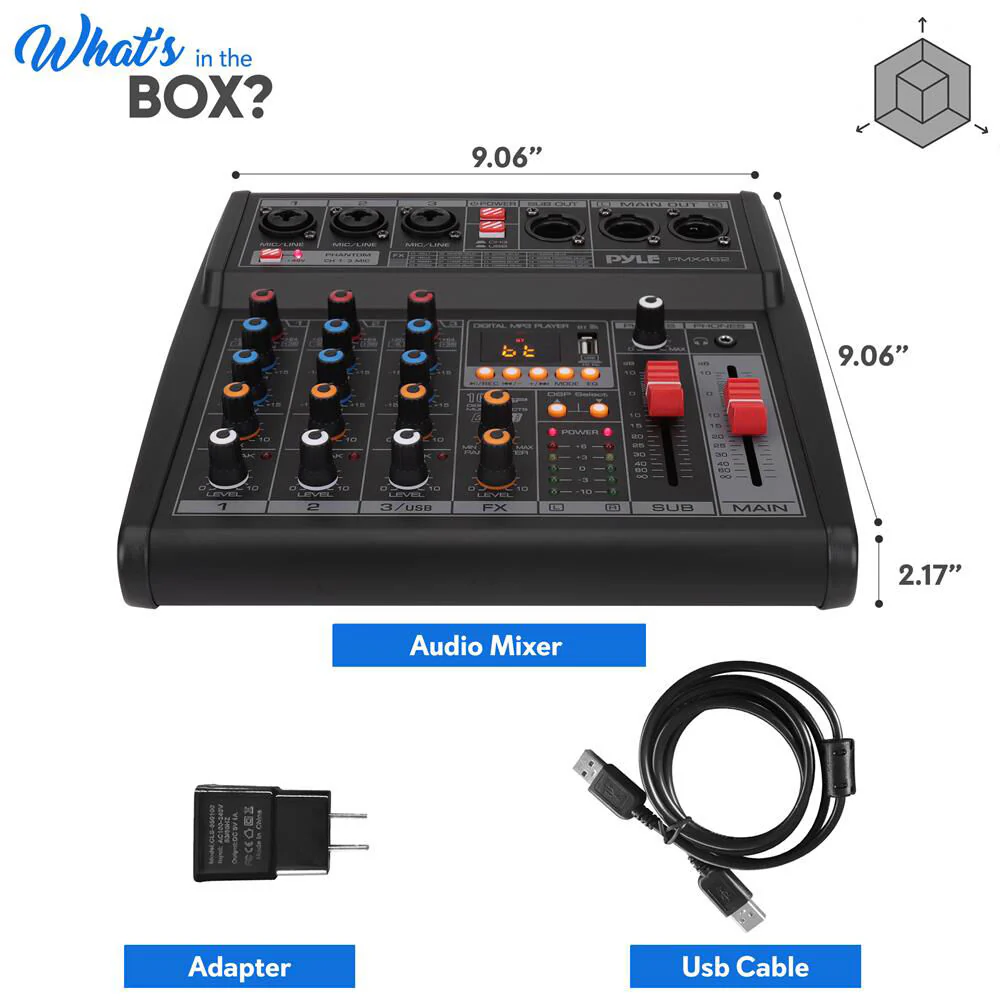

In the Box
- Pyle Pro PMX462 3-Channel Audio Mixer with Built-In FX and USB Interface
- USB Cable
- Power Supply
- Limited 1-Month Manufacturer Warranty
Guides & Manuals
Pyle Pro PMX462 Specs
| Number of Analog Input Channels |
3 (2 Mono)
|
| Number of Mic Preamps |
3
|
| Analog Output Channels |
1 x Stereo Master Output
1 x Stereo Headphone Output 1 x Mono ALT Bus/Subgroup Output |
| Max I/O Capacity |
3 x Input / 4 x Output
|
| Mix Routing |
Stereo FX Bus per Input Channel, Main Mix Channel (LCR Main Mix Combines Stereo and Mono Main Mixes)
|
| Faders & Level Adjustment |
1 x Master Fader
1 x Bus/Subgroup Fader |
| Meters |
Main Meter:
1 x 10-Segment LED |
| Meter Range |
Main Meter:
-10 dB to +6 dB Peak/Clip |
| Dynamic Processing |
No
|
| Sidechain Filters |
No
|
| EQ |
Input Channels:
2-Band Shelving (Mono Channels) |
| EQ Parameters |
Mono Channels:
High: ±15 dB at 12 kHz (Shelving) Low: ±15 dB at 80 Hz (Shelving) |
| Graphic EQ |
No
|
| Solo/Mute |
No
|
| Channel Output/Source Monitoring |
AFL, Post-EQ, Post-FX
|
| Built-In Effects |
16 x Stereo Delay+Reverb
|
| Frequency Response |
Analog Input:
20 Hz to 20 kHz ±1/4 dBu (at 1 kHz) |
| THD |
Analog Input:
< 0.5% (+4 dBu, 22 Hz to 22 kHz) |
| Analog Inputs |
3 x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line Input
|
| Analog Outputs |
2 x XLR 3-Pin Balanced Stereo Main/Monitor Output (1 Stereo Pair, Post-Fader)
1 x 1/4" TRS Unbalanced Stereo Headphone Output (Post-Fader) 1 x XLR 3-Pin Balanced Mono Subgroup Output (Post-Fader) |
| Phantom Power |
+48 V, Selectable On/Off (on 2 Channels)
|
| Digital I/O |
No
|
| MIDI I/O |
No
|
| USB |
2 x USB-B 2.0 (Audio Playback, Audio Streaming, Device Charging, I/O, Multitrack Record, Recording)
|
| Media Support |
HDD, USB Drive
|
| OS Compatibility |
Windows 98 or Later
macOS *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
| DC Input Power |
4.8 to 5.2 VDC at 1A (USB Bus Power)
|
| Power Supply Output |
5 VDC at 1 A (Included)
|
| Rack Mountable |
No
|
| Dimensions |
9.1 x 2.2 x 9.1" / 23.1 x 5.6 x 23.1 cm
|
| Weight |
3.7 lb / 1.7 kg
|
| Package Weight |
3.62 lb
|
| Box Dimensions (LxWxH) |
10.7 x 10.3 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
