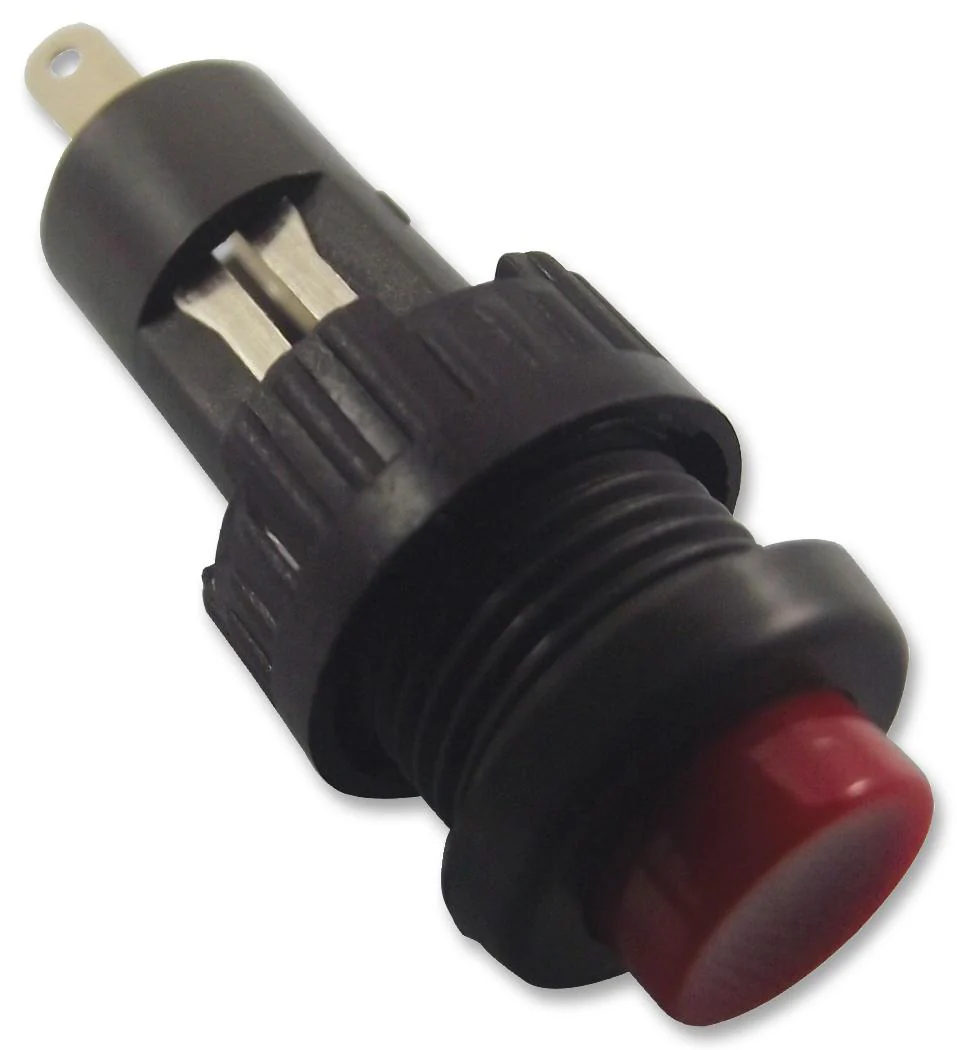

Rafi 1.10.107.011/0301 Pushbutton Switch Opaque Red 9.1 mm SPST-NO Off-(On) Round
- 200mR Maximum contact resistance
- IP40 Protection rating
- -25 to +70°C Operating temperature range
Industrial
Product details
| Product Range | - |
| Panel Cutout Diameter | 9.1mm |
| Contact Configuration | SPST-NO |
| Switch Operation | Off-(On) |
| Pushbutton Actuator Style | Round |
| Actuator / Cap Colour | Red |
| Contact Current AC Max | 100mA |
| Contact Voltage VAC | 24V |
| Contact Current DC Max | 100mA |
| Contact Voltage VDC | 24V |
| IP Rating | IP40 |
| Switch Mounting | Panel Mount |
| Switch Terminals | Solder Lug |
| Illumination Colour | Non Illuminated |
| Panel Cutout (H x W) | - |
Other details
| Brand | RAFI |
| Part Number | 1.10.107.011/0301 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
