RCF AYRA PRO5 Active Two-Way Professional Monitor
RCF AYRA-FIVE-PRO Overview
- 1Description
- 2Powerful, Composite-Cone Woofer
- 3Potent Power Amplifiers
- 4Accurate Phase Response
The black AYRA PRO5 Active Two-Way Professional Monitor is designed to provide producers and engineers with a powerful speaker that delivers neutral and precise audio monitoring to ensure accurate recordings and mixes. FiRPHASE processing, paired with dedicated internal DSP, ensures neutrality with a 0° phase response, while an extended range of inputs and frequency optimization controls allow the speaker to adapt to a wide range of studio and project facilities as well as home recording setups.

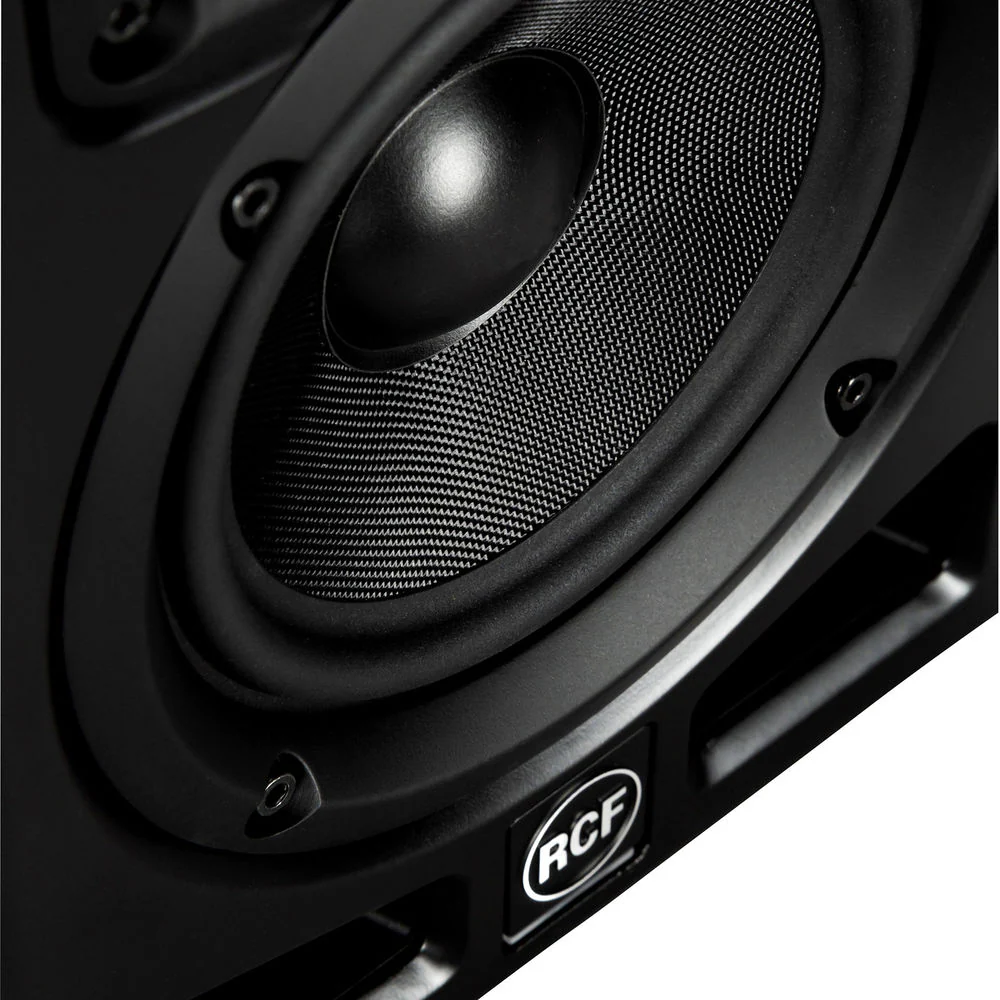

Optimized for a wide range of near-field applications, the PRO5 features a high-energy soft-dome tweeter with advanced magnetics, ferrofluid cooling, and a low-distortion waveguide for high-frequency clarity and definition. The tweeter is driven by a 25W Class-D amp, while a second 75W Class-D amp drives the 5" composite fiberglass woofer. The front bass reflex port delivers a larger portion of the energy forward and away from rear walls, making the speaker well suited to in-wall installations.
In the Box
- RCF AYRA PRO5 Active Two-Way Professional Monitor
- Limited 3-Year Warranty
- Description
- Powerful, Composite-Cone Woofer
- Potent Power Amplifiers
- Accurate Phase Response
RCF AYRA-FIVE-PRO Specs
| Monitor Type & Configuration |
Active 2-Way
|
| Total Power Output |
100 W RMS
|
| Tweeter |
1 x 1" / 25.4 mm Soft Dome
Voice Coil: 1" / 25.4 mm |
| Woofer |
1 x 5" / 12.7 cm Fiberglass Cone
Voice Coil: 1.2" / 30.5 mm |
| Audio I/O |
1 x 1/4" TRS Balanced/Unbalanced Input
1 x XLR 3-Pin Balanced Input 1 x RCA Unbalanced Input |
| Number of Included Monitors |
Single Monitor
|
| Enclosure |
Bass-Reflex/Ported
|
| Total Power Output |
100 W RMS
|
| Tweeter |
1 x 1" / 25.4 mm Soft Dome
Voice Coil: 1" / 25.4 mm |
| Woofer |
1 x 5" / 12.7 cm Fiberglass Cone
Voice Coil: 1.2" / 30.5 mm |
| Amplifiers |
LF: 1 x 75 W RMS / 150 W Peak Class-D
HF: 1 x 25 W RMS / 50 W Peak Class-D |
| Frequency Response |
50 Hz to 20 kHz
|
| Maximum Sound Pressure Level (SPL) |
107 dB
|
| Maximum Input Level |
+4 dBu
|
| Analog Input Sensitivity/Gain |
0 dB (Continuously Variable)
|
| Dispersion |
110 x 70° (Horizontal x Vertical)
|
| Protections and Limiting |
Limiter
|
| EQ |
1 x HF Shelf: -1 to +1 dB (1 dB Increments)
|
| Crossover Frequency |
Low-Pass: 2000 Hz
|
| Audio I/O |
1 x 1/4" TRS Balanced/Unbalanced Input
1 x XLR 3-Pin Balanced Input 1 x RCA Unbalanced Input |
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power Consumption |
120 W
|
| Color |
Black
|
| Enclosure Material |
MDF
|
| Dimensions (W x H x D) |
7.3 x 11.8 x 9.6" / 18.5 x 30 x 24.3 cm
|
| Weight |
9.5 lb / 4.3 kg
|
| Package Weight |
13.165 lb
|
| Box Dimensions (LxWxH) |
16.1 x 13.3 x 10.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
