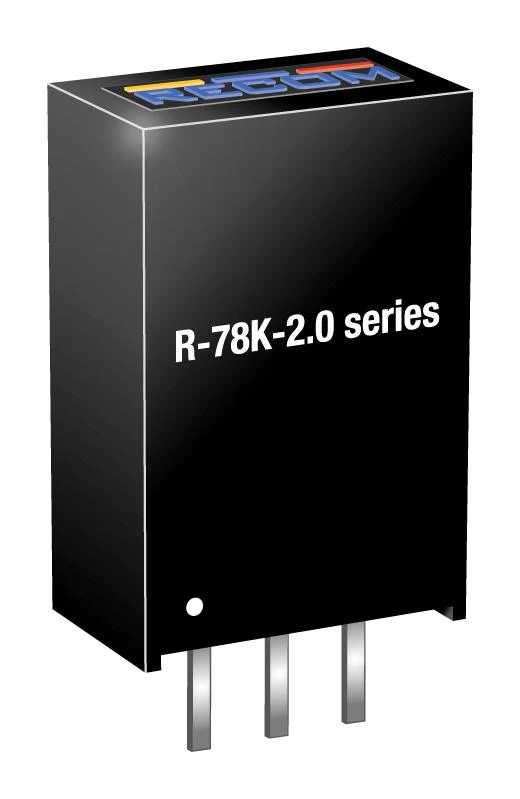

Recom Power R-78K12-2.0 R-78K12-2.0 DC/DC Converter ITE 1 Output 24 W 12 V 2 A R-78K-2.0 Series New

R-78K12-2.0 is a R-78K-2.0 series SIP3 single output DC/DC converter. It is a switching regulator module that has been designed to offer all the advantages of a switching regulator (high efficiency, wide input range, accurate output voltage regulation) but with a low cost for production quantities. Due to its high efficiency, no heat-sink is required, and operation from -40 to 90°C is possible without derating. IEC/EN62368-1 3rd edition certified and EN55032 compliant.

• Input voltage range from 14 to 36VDC, output voltage is 12VDC
• Output current is 2000mA, efficiency is 94% at maximum VIN
• Pin compatible with 78 series regulators, non isolated DC/DC converter
• Undervoltage and short circuit protection
• Black plastic, (UL94 V-0) case material
• Typical internal switching frequency is 400KHz
• 3 years warranty
• Dimension (L x W x H) is 11.5 x 8.5 x 17.5mm

Other details

Brand	RECOM POWER
Part Number	R-78K12-2.0
Quantity	Each
Technical Data Sheet EN
