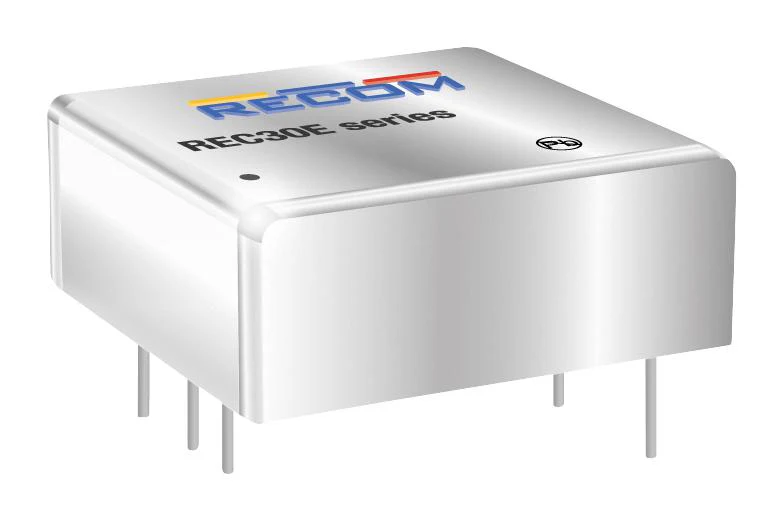

Recom Power REC30E-2405SZ REC30E-2405SZ Isolated Through Hole DC/DC Converter ITE 4:1 30 W 1 Output 5 V 6 A New

REC30E-2405SZ is a REC30E-Z series 30W DC/DC converter. It has high power density, a wide input voltage range in an industry-standard. Despite its small size, this is fully specified device with no minimum load, 2000VDC/1min isolation, tight regulation, and low ripple/noise figures. The outputs are also fully protected against over-temperature, short circuits, overcurrent, and overvoltage, and the single output version offers a ±10% trim range. This converter will find industrial applications where board space is at a premium.

• Input voltage range from 9 to 36VDC, output voltage is 5VDC
• Output current is 6000mA, typical efficiency is 89%, single output
• 4:1 wide input voltage range
• Nickel plated metal case material
• 3 years warranty
• Operating temperature range from -40 to +105°C
• Dimension (L x W x H) is 25.4 x 25.4 x 10.0mm
• IEC/EN62638-1 certified

Other details

Brand	RECOM POWER
Part Number	REC30E-2405SZ
Quantity	Each
Technical Data Sheet EN
