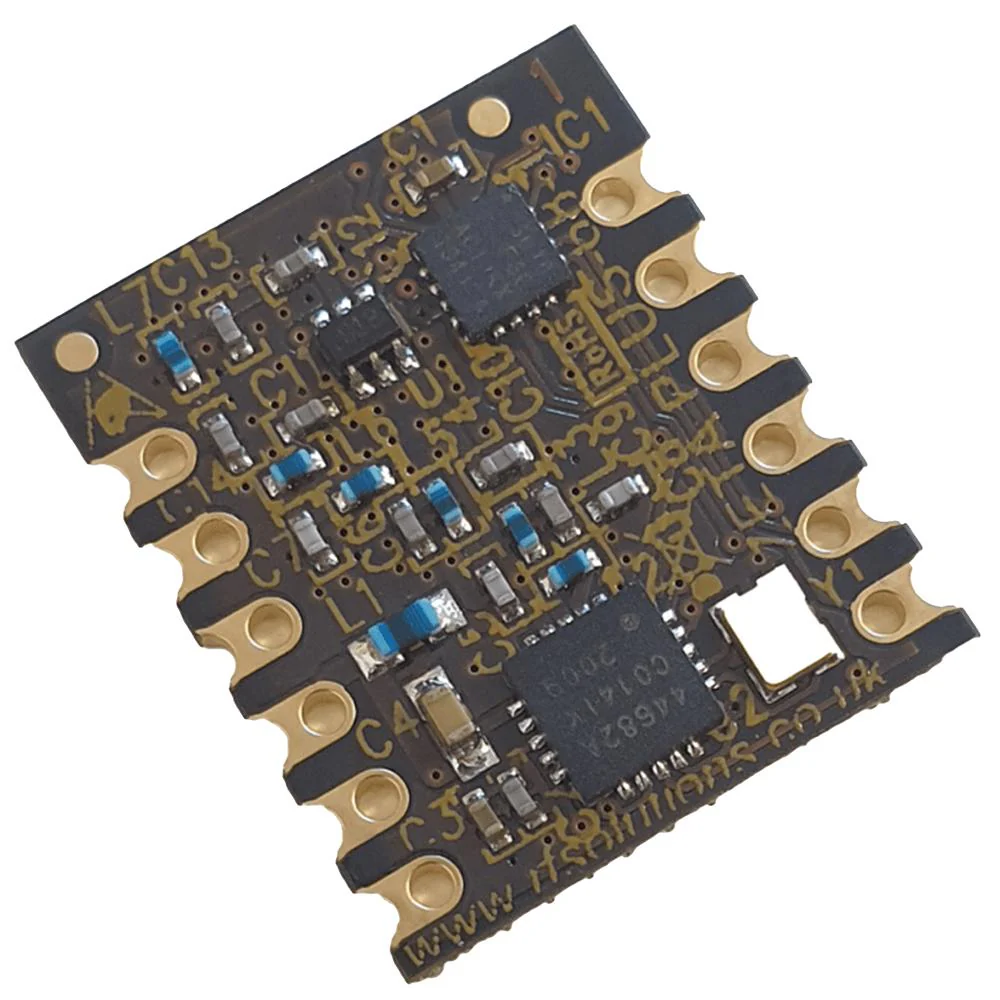

RF Solutions ZETAPLUS20-8S ZETAPLUS20-8S Transceiver Module 868 MHz SPI Uart Sensitivity -132dBm 1.8 V to 3.6 SMT
RF Solutions ZETAPLUS20-8S ZETAPLUS20-8S Transceiver Module 868 MHz SPI Uart Sensitivity -132dBm 1.8 V to 3.6 SMT
ZETAPLUS20 makes a radio data link easy. It has a simple interface using either SPI or UART (LV RS232) and provides a plug 'n' play RF comms to any application. With connection to power, comms and antenna, the user can start sending and receiving data immediately. No other external components are required. With a highly tuned on-board RF matching network ZETAPLUS20 outperforms other modules achieving range far in excess of its competitors for the given power output/power consumption. Specifications are stated from the module I/O (not the pin of the IC on the module).
- Suitable for home automation, sensor / mesh RF networks, telemetry, keyless entry, health monitors, RF data comms
- Wire replacement SMARTRADIO
- Upto 4Km range
- Specifications (from the pin of the module):- Transmit Power +20dBm, Sensitivity -132dBm
- Max data rate @ 500Kbps
- Easy UART and SPI interface
- Full CRC Error Checking Option
- User Selectable Data Payload
- Best in Class cost performance
- 1.8V - 3.6V Operating Voltage
- Low power consumption:- 0.5nA Standby, <10mA Rx, 18mA Tx @ 10dBm
- 64 Byte Buffer (FIFO)
- Based on Silicon Labs' Si4468 chipset
- No configuration necessary
- No external components
- Fast Plug and Play SPI or UART RF Link
- Form factor: 16mm x 18mm
Other details
| Brand | RF SOLUTIONS |
| Part Number | ZETAPLUS20-8S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
