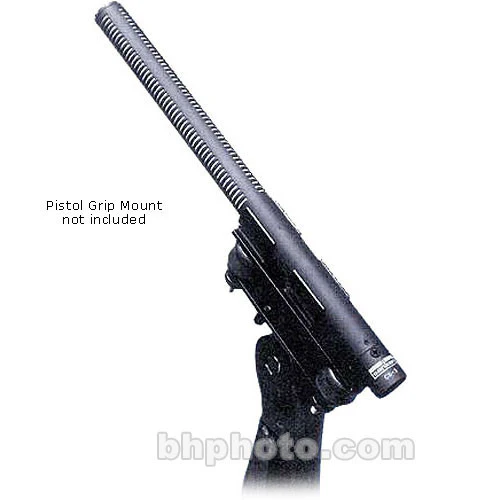

Sanken CS-3e Mono Shotgun Microphone
The CS-3e Mono Shotgun Microphone from Sanken provides convenient camera mountable size with the directional signal reproduction and range expected of larger, professional shotgun microphones. The CS-3e is designed for directional dialog capturing in studios or on location. The microphone implements 3 directional capsules arranged in a front-to-back array resulting in phenomenal super-cardioid directivity at high, mid and low frequencies.
The CS-3e is capable of maintaining high signal quality at longer distances, making it ideal for ceiling and overhead placement. In addition to exceptional super-cardioid off-axis rejection, the microphone capsule eliminates low-frequency proximity effect when used in close proximity to the signal source. Measuring only 10 inches in length, the CS-3e is suitable for camera or boom pole mounting applications.
- High Super-Cardioid Directivity
- Three capsules arranged in a linear array provide a super-cardioid directional pattern that rivals conventional phase interference shotgun microphones.
- High Pass Filter
- A high pass filter switch eliminates noise and rumble caused by wind, handling and more.
- Eliminates Proximity Effect
- The CS-3e eliminates proximity effect and low-frequency overload caused by close microphone placement.
- Convenient Size
- Measuring about 10 inches, the CS-3e is perfect for both camera or boom pole mounting applications.
| Transducer | Condenser |
| Polar Pattern | Supercardioid |
| Frequency Range | 50 Hz to 20 kHz |
| Equivalent Noise Level | 15 dB A-Weighted |
| Maximum SPL | 120 dB SPL 1% |
| Impedance | 120 ohms% @1 kHz |
| Sensitivity | 50 mV/PA @ 1 kHz |
| Power Requirements | 48 V+/- 4 V |
| Output Connectors | 3-Pin XLR |
| Operating Current Consumption | 3.0mA |
| General | |
|---|---|
| Length | 10.63" (270 mm) |
| Diameter | 0.75" (19 mm) |
| Weight | 4.23 oz (120 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 13.1 x 3.6 x 2.1" |
- Vinyl Case
- Limited 1-Year Warranty
