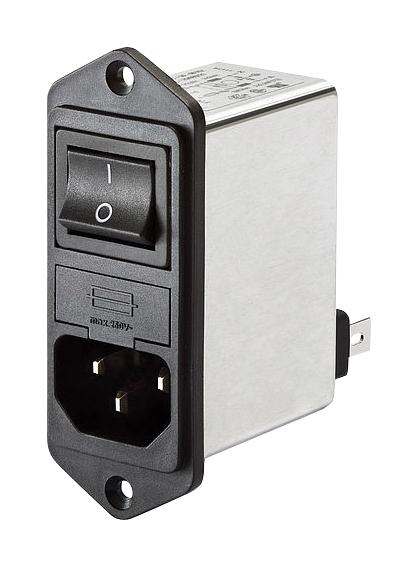

Schaffner FN285-1-06 IEC Filter 0.22 µF 250 VAC Mains 1 A Quick Connect 7.5 mH

The FN 280 series compact filtered Power Entry Module combines an IEC inlet, a mains filter with single or dual-fuse holder and a 2-pole rocker switch in a small form factor. Choosing FN 280 product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

• High conducted attenuation performance
• Rear/front or snap-in mounting
• Single or dual-fuse holder
• 2-pole rocker switch
• Custom-specific versions are available on request

Applications

Power Management, Consumer Electronics, Test & Measurement, Medical

Product details

Capacitance	0.22µF
Voltage Rating	250VAC
Filter Type	IEC, Mains
Current Rating	1A
Filter Terminals	Quick Connect
Inductance Min	7.5mH
Leakage Current Max	373µA
Product Range	FN 280 Series
RoHS Phthalates Compliant	To Be Advised

Other details

Brand	SCHAFFNER
Part Number	FN285-1-06
Quantity	Each
Technical Data Sheet EN
