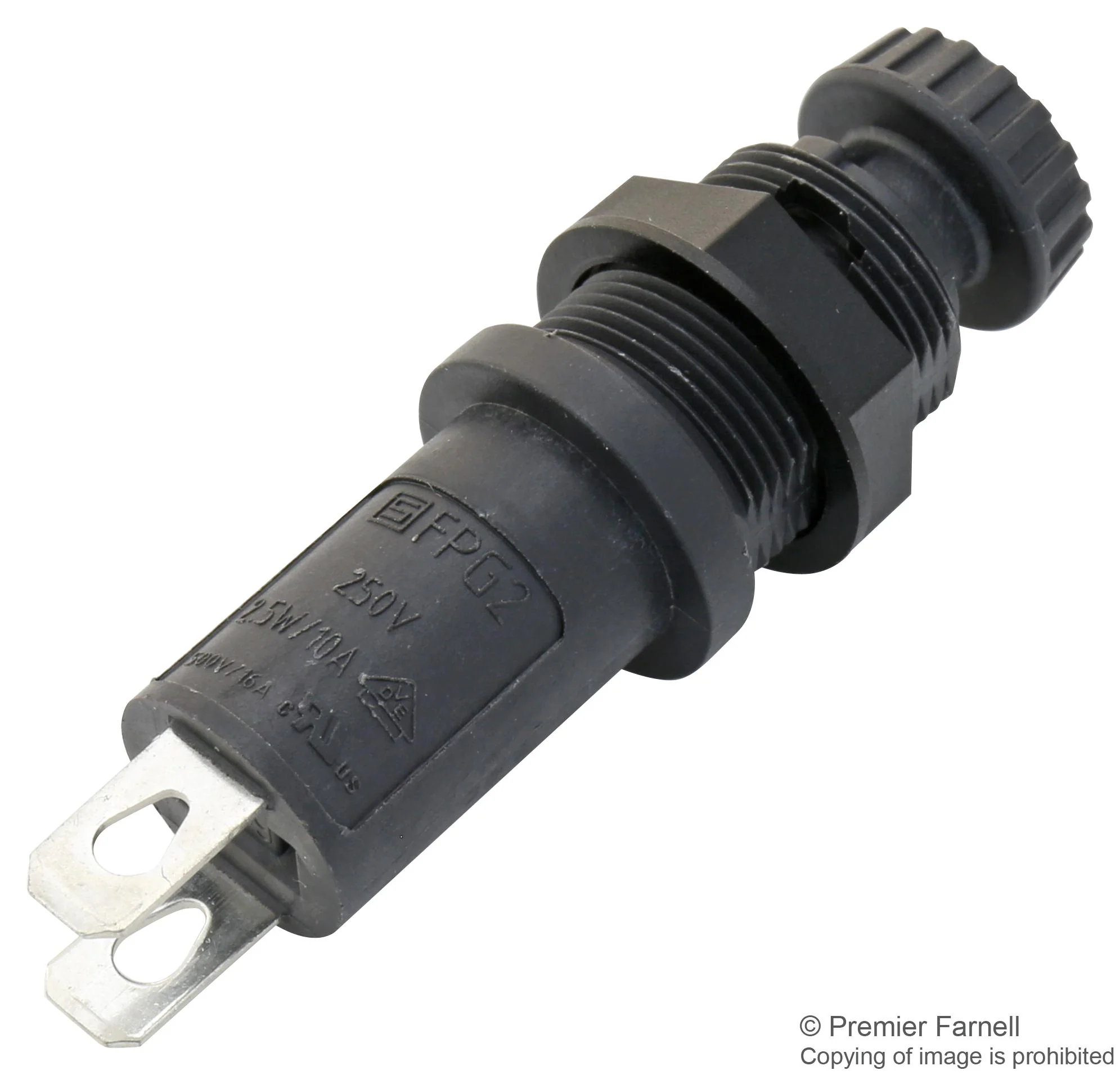

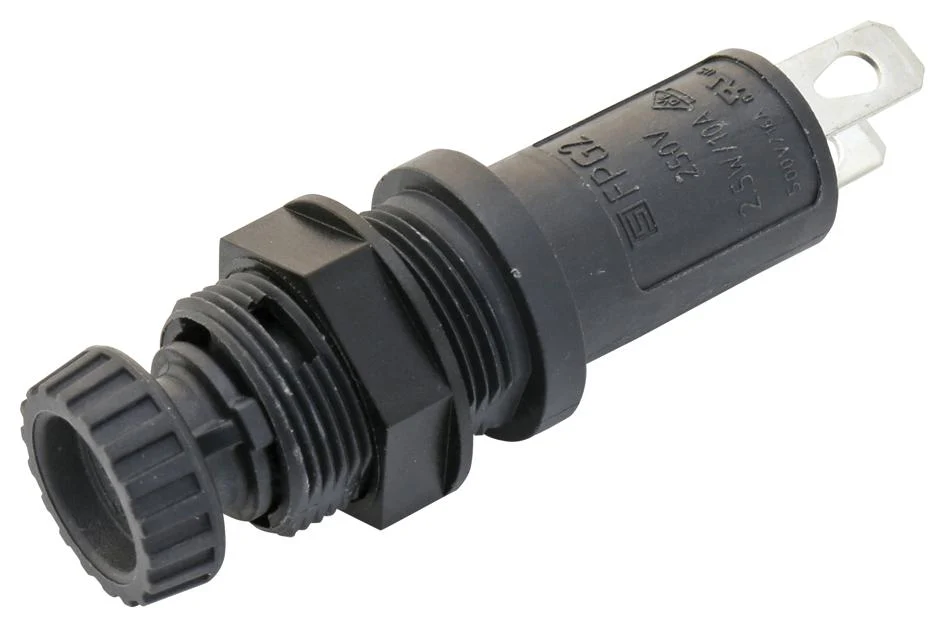

Schurter 3101.0025 3101.0025 Fuseholder Panel Mount Rear Side 250V 10A 5 x 20mm Solder Fingergrip Cap IP40 PC2

The FPG2 series Shock Safe rear side Panel-mount Fuseholder with black thermoplastic body and tin-plated copper alloy solder or quick-connect terminals. It supports mounting by means of fixing nut. It meets the new requirements of IEC 60335-1 for appliances in unattended use (clause 30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.

• Rated: 10A at 250V AC
• PC2 Shock-Safe category
• IP40/IP67 Protection rating
• Iron soldering methods
• UL94V-0 Flammability rating
• Slotted cap/finger grip
• <=10mR at 20mV Contact resistance
• -40 to 85°C Admissible ambient air temperature

Applications

Industrial, Consumer Electronics, Medical

Other details

Brand	SCHURTER
Part Number	3101.0025
Quantity	Each
Technical Data Sheet EN
Application Note EN
Product Change Notice EN
Application Note EN
