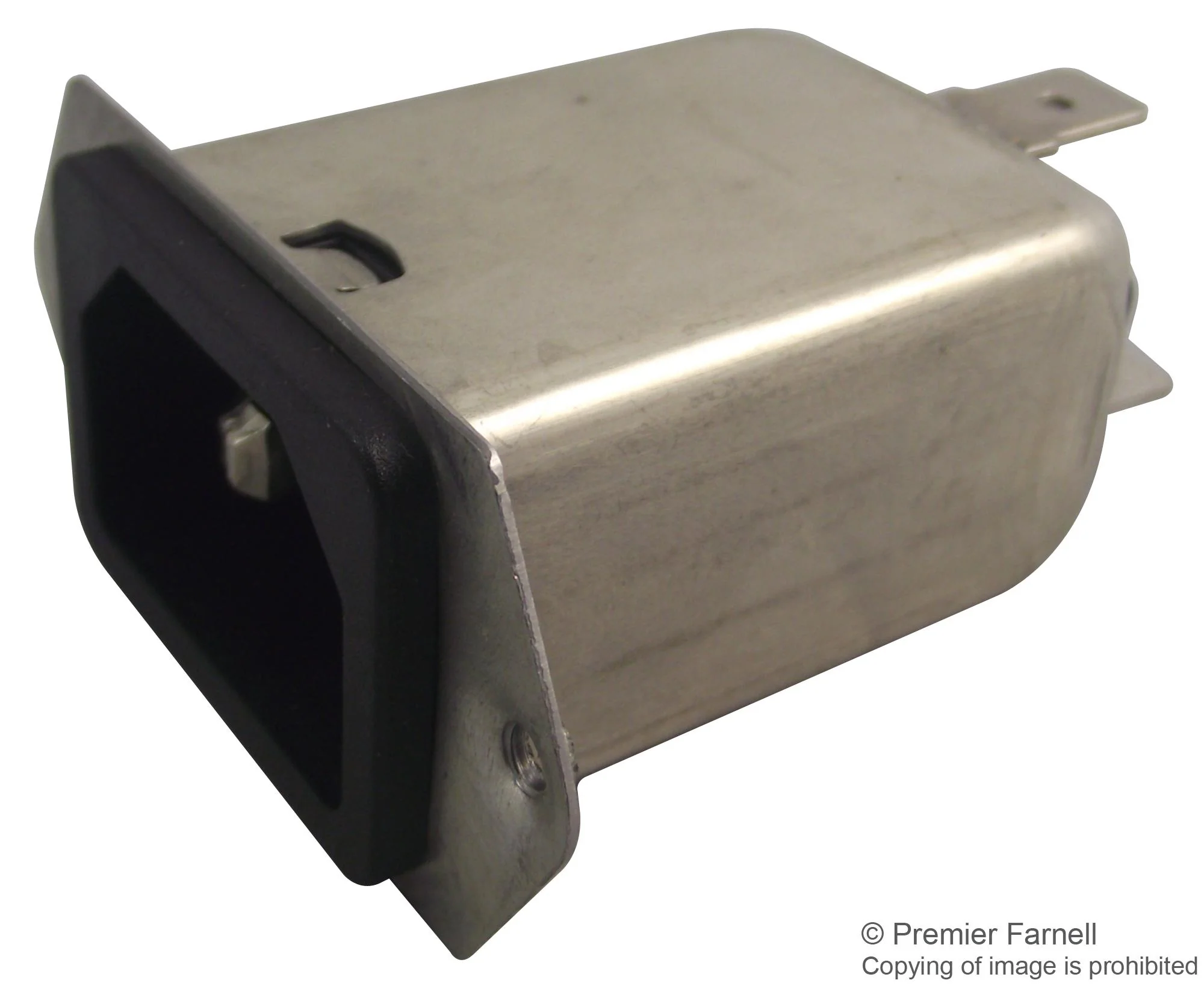

Schurter 5120.0006.0 Filtered IEC Power Entry Module C14 General Purpose 10 A 250 VAC

The 5120.0006.0 is an IEC Filter with screw-on rivet from front or rear-side panel mounting. The compact high-performance DC-filter is optimal shielding due to completely closed filter case and un-potted. It is suitable for use in equipment according to IEC/UL 60950.

• IP40 Protection rating
• UL94V-0 Flammability rating
• Suitable for appliances with protection Class-I according to IEC 61140
• Quick connect terminals
• Suitable for assembly in metal plated plastic housings
• -25 to 85°C Operating temperature range

Applications

Industrial

Other details

Brand	SCHURTER
Part Number	5120.0006.0
Quantity	Each
Technical Data Sheet EN
Application Note EN
Product Change Notice EN
