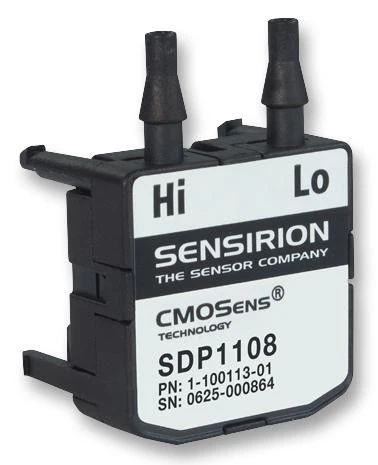

SENSIRION SDP1108-R Pressure Sensor, Medical, -10 to 60�C, 500 Pa, Voltage, Differential, 5 V, Hose / Tube, 5.1 mA
SENSIRION SDP1108-R Pressure Sensor, Medical, -10 to 60�C, 500 Pa, Voltage, Differential, 5 V, Hose / Tube, 5.1 mA
The SDP1108 series differential Pressure Sensor a high-performance sensor solution, specially designed for air flow measurements in medical applications. Based on the differential pressure sensors of the series, sensor features the same high-value mechanical, electrical and physical characteristics. The SDP1108 sensor provides an analog output signal with a range of 0-4V and is fully calibrated and temperature compensated. In addition, it has a high resolution. Thanks to the principle of thermal flow measurement the sensor series achieves outstanding sensitivity and accuracy even at extremely low differential pressures, exhibits very high stability and is freedom of zero point drift. Furthermore, the series square-root output characteristics for a wider dynamic measurement range and faster response time.
- Highest dynamic range thanks to root-square output characteristics
- 8ms Fast response time
- 0.05Pa Highest resolution
- Outstanding accuracy and sensitivity thanks to principle of dynamic measurement
- No offset, zero drift, hysteresis free
- Fully calibrated and temperature compensated
Applications
Medical, HVAC, Automation & Process Control, Industrial
Product details
| Sensor Output | Voltage |
| Pressure Measurement Type | Differential |
| Port Style | Hose / Tube |
| Operating Pressure Max | 500Pa |
| Product Range | SDP1108 Series |
| Supply Current | 5.1mA |
| Voltage Rating | 5V |
Other details
| Brand | SENSIRION |
| Part Number | SDP1108-R |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
