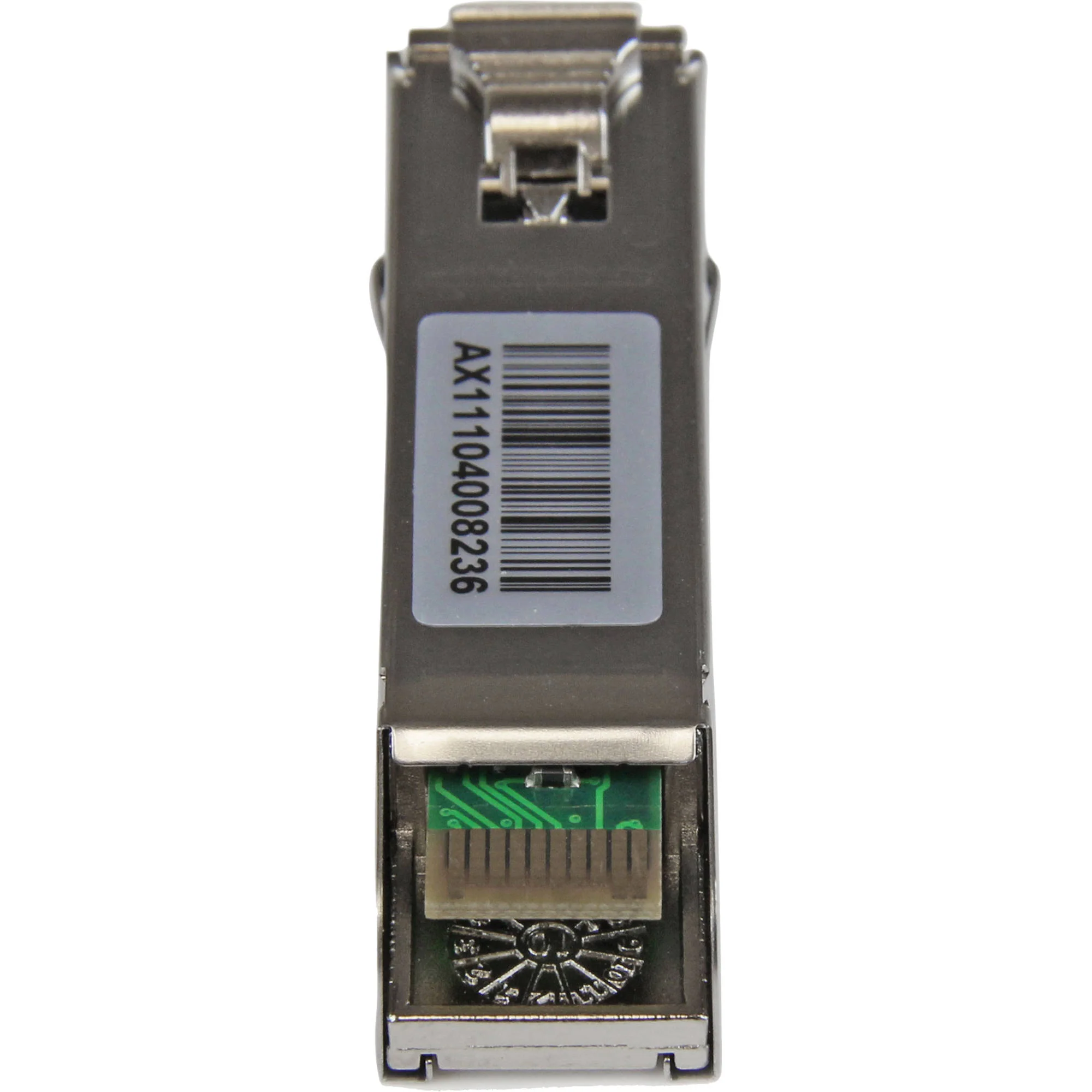

StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m
StarTech SFPSXMM Overview
The Startech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m allows you to add, replace, or upgrade SFP modules on gigabit fiber equipment. It is built to comply with MSA (Multi-Sourcing Agreement) standards and increase performance and connectivity of your fiber-connected network devices.
Using a short wavelength (850nm) VCSEL laser diode and enabling a maximum cable distance of 1804� (550m) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA-compliant SFP port. It provides a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.
Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot. It is suitable for applications such as network extension and fiber backbones and replacing defective or damaged SFPs in MSA compliant equipment. It can be used in Multimode fiber installations and enables you to expand your network to remote segments over fiber.
In the Box
- StarTech Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m
- Limited 2-Year Manufacturer Warranty
Guides & Manuals
StarTech SFPSXMM Specs
| Ports |
1 x LC
|
| Maximum Data Rate |
1.25 Gb/s
|
| Mode |
Multi-Mode
|
| Ports |
1 x LC
|
| Networking Technology |
1000BASE-SX
|
| Wavelength |
850 nm
|
| Maximum Networking Distance |
1804' / 550 m
|
| Maximum Data Rate |
1.25 Gb/s
|
| Mode |
Multi-Mode
|
| Operating Mode |
Full Duplex
|
| Operating Temperature |
32 to 158°F / 0 to 70°C
|
| Operating Humidity |
5 to 95%
|
| Storage Temperature |
-40 to 85°F / -40 to 29.4°C
|
| Dimensions (L x W x H) |
2.2 x 0.5 x 0.3" / 55.9 x 12.7 x 7.6 mm
|
| Weight |
1.6 oz / 45.4 g
|
| Package Weight |
0.1 lb
|
| Box Dimensions (LxWxH) |
4.6 x 2.8 x 1.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
