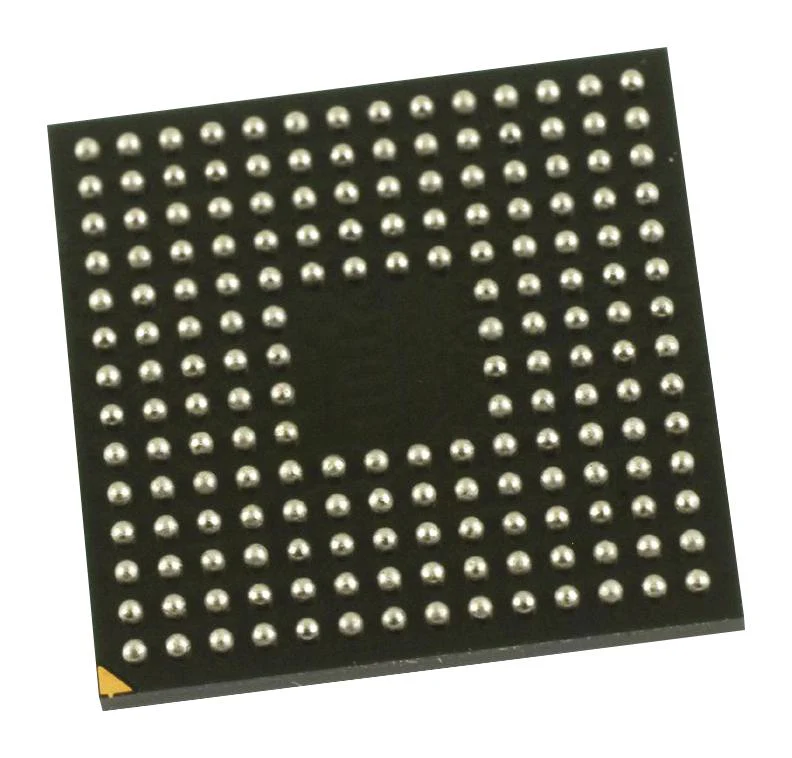

STMICROELECTRONICS STM32U5G9NJH6Q ARM MCU, STM32 Family STM32U5 Series Microcontrollers, ARM Cortex-M33F, 32 bit, 160 MHz, 4 MB
STMICROELECTRONICS STM32U5G9NJH6Q ARM MCU, STM32 Family STM32U5 Series Microcontrollers, ARM Cortex-M33F, 32 bit, 160 MHz, 4 MB
Product Overview
STM32U5G9NJH6Q is a STM32U5 series 2.5D and vector graphics, JPEG codec, LTDC, MIPI®DSI, crypto, ultra-low-power microcontroller. It is based on the high-performance Arm® Cortex®-M33 32bit RISC core. This operates at a frequency of up to 160MHz. The Cortex®-M33 core features a single-precision floating-point unit, that supports all the Arm® single-precision data-processing instructions and all the data types. The Cortex®-M33 core also implements a full set of digital signal processing instructions and a memory protection unit that enhances the application security. It embeds high-speed memories an FSMC for static memories, two Octo-SPI and one Hexadeca-SPI memory interfaces and an extensive range of enhanced I/Os and peripherals connected to three APB buses, three AHB buses and a 32bit multi-AHB bus matrix. It offers a security foundation compliant with the trusted-based security architecture requirements from Arm®.
- USB HS, DSI, and AES hardware encryption, 4Mbytes flash memory size
- Dedicated pinout supporting SMPS step-down converter
- VBAT mode-supply for RTC, 32 x 32bit backup registers and 2-Kbyte backup SRAM
- Arm® 32bit Cortex®-M33 CPU with TrustZone®, MPU, DSP, and FPU
- Embedded regulator and SMPS step-down converter supporting switch on-the-fly and voltage scaling
- 1.5 DMIPS/MHz (Drystone 2.1), 655 CoreMark® (4.09 CoreMark®/MHz)
- Chrom-ART Accelerator (DMA2D) for enhanced graphic content creation
- Chrom-GRC (GFXMMU) allowing up to 20% of graphic resources optimization
- MIPI® DSI Host controller with two DSI lanes running at up to 500Mbit/s each
- 216-pin TFBGA package, industrial temperature range from -40 to 85°C
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | STM32U5G9NJH6Q |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $29.40
-70%$29.40
$8.82STMICROELECTRONICS STM32U5G9NJH6Q ARM MCU, STM32 Family STM32U5 Series Microcontrollers, ARM Cortex-M33F, 32 bit, 160 MHz, 4 MB
