Sunwayfoto DDP-64SI and DDY-64I Indexing Rotator Combo
- Creates Spherical and HDR Panoramas
- Load Capacity: 17.6 lb
- 4x Detent Intervals: 18, 30, 35, 90°
- Rotation Locking Knob
- Laser-Engraved Index Marks
- Arca-Type Compatible Dovetail Mount
- CNC Machined T6061 Aluminum
- Black Anodized Finish
- Lightweight Hollowed Out Design
The DDP-64SI and DDY-64I Indexing Rotator Combo from Sunwayfoto helps to create spherical or HDR panoramas or can be used as a conventional panning base, which has four detent intervals of 18, 30, 35, and 90°. Moreover, the laser-engraved index marks show your 360° of rotation, which is secured with the rotation locking knob.
The Rotator has a weight capacity of 17.6 lb, and the dovetail mount is Arca-type compatible with most plates on the market. The Rotator Combo is made of CNC machined T6061 aluminum with a black anodized finish, making it corrosion- and scratch-resistant. The hollowed out design of the rotator makes it lightweight and portable.

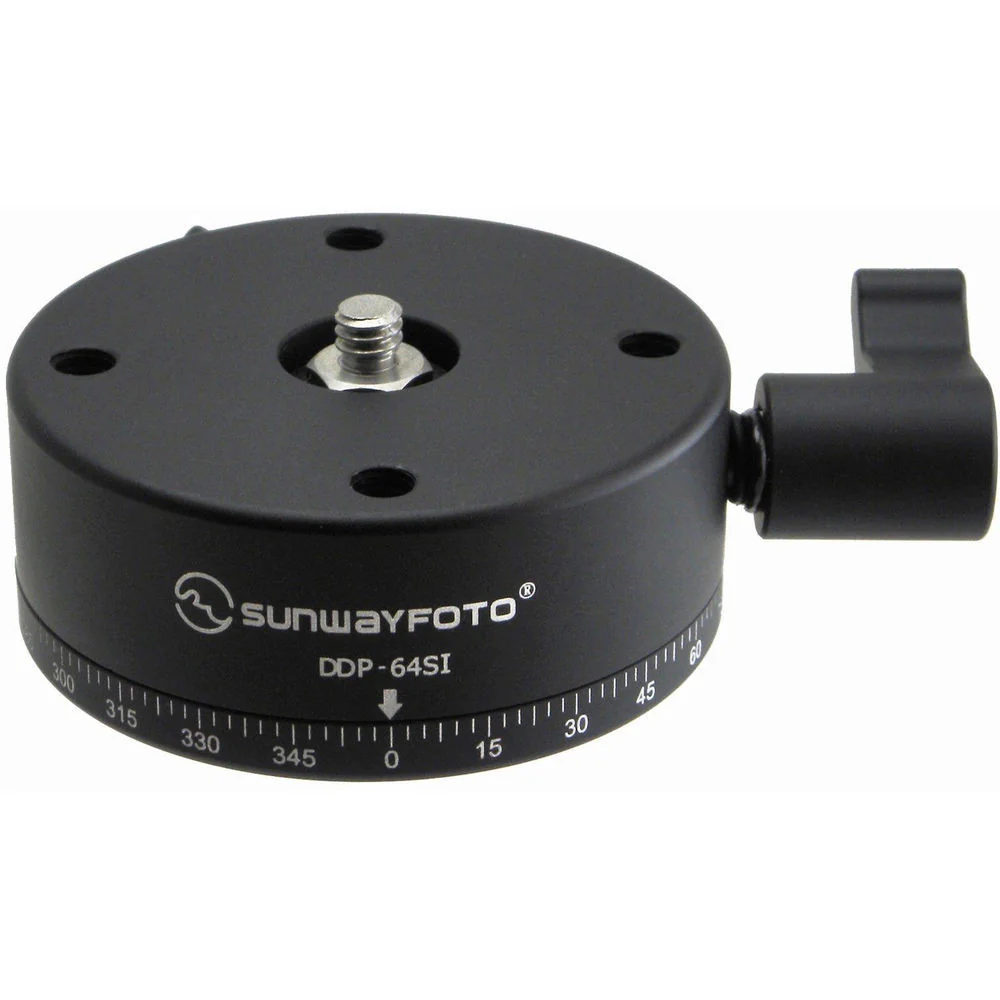

- DDP-64SI Indexing Rotator for Panoramas
The DDP-64SI Indexing Rotator for Panoramas from Sunwayfoto has 4 different selectable click options - 18, 30, 45 and 90°. This rotator also has 64mm footprint (diameter), and is best suited for ultra wide fisheye lenses when capturing full 360 x 180° spherical or HDR panoramas.
Combining CNC machined aircraft aluminum parts, with a compact and durable design, the DDP-64SI also provides for very precise, fluid rotation required of professional photographers. You can also change click stops on-the-fly, which is ideal in time-sensitive situations when shooting must be completed quickly. These include shooting high resolution multi-image mosaics, or shooting the same scene at different focal lengths.- For 360 x 180° Spherical & HDR Panoramas
- With precision CNC machined components, laser engraved markings and lubricated bearings for smooth rotation, allow full spherical panoramas to be quickly and accurately captured
- 64mm Diameter/Nadir Footprint
- Diameter of 64 mm provides sufficient precision and stability while keeping the nadir footprint small
- 4x Detent Interval Options
- Four different degree stop increments: 20, 12, 8 & 4 stops (18, 30, 45 & 90°). The detent interval (click stop) option can also be changed in seconds, with a knob for locking rotation
- Up to 17.6lb Supported Weight Capacity
- More than 17.6 lb of weight is supported

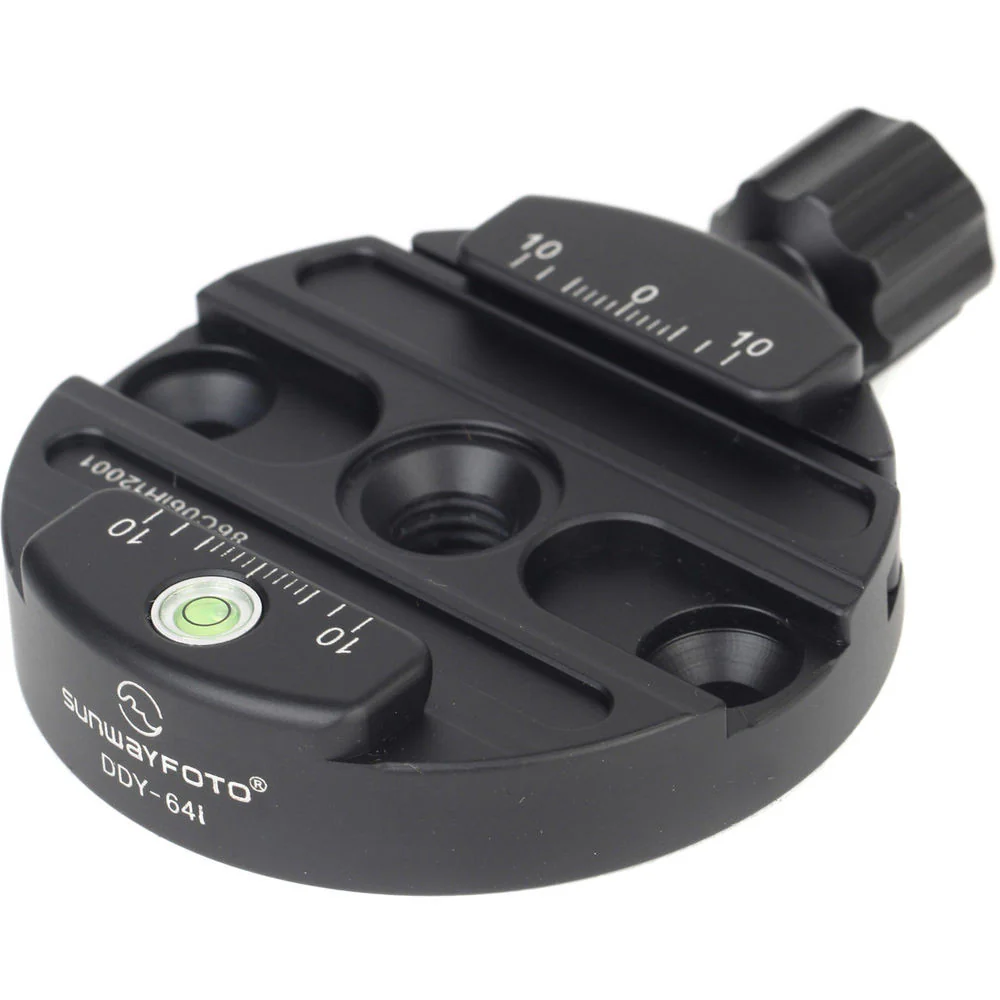

- Discal Clamp 64mm
The Discal Clamp 64mm from Sunwayfoto is a Swiss-Arca-compatible integral screw-knob clamp with an anodized black finish. It has a captive knob, safety-stop grooves, and a hollowed-out design that reduces the weight of the clamp. You can use an M6 screw to mount it to an AS-style ball head, and it will accept any standard Arca-Swiss quick-release plate. This Discal Clamp also has an integrated bubble level.
- CNC-machined integral screw-knob clamp
- Arca-Swiss-compatible
- Anodized black finish
- Captive knob
- Integrated bubble level
- Safety stop grooves
- Lightweight hollow design
- DDP-64SI Indexing Rotator for Panoramas
Click-Stops 20, 12, 8 & 4 stops Degree Stops 18°, 30°, 45° or 90°, respectively Mounting Thread Top: 1/4"-20
Bottom: UNC 3/8Load Capacity Approximately 17.6 lb (8 kg) Height 1" (25.8 mm) Diameter 2.5" (64 mm) Weight 6.7 oz (190 g) Packaging Info Box Dimensions (LxWxH) 5.6 x 4.6 x 2.8" - Discal Clamp 64mm
Diameter 2.51" (64 mm) Length 3.18" (81 mm) Height 0.61" (15.5 mm) Clamp Screw-knob Thread UNC3/8" Weight 2.82 oz (80 g) Packaging Info Box Dimensions (LxWxH) 5.1 x 4.5 x 1.2"
- 1-Year Limited Warranty + Additional 18 Months with Online Registration
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
