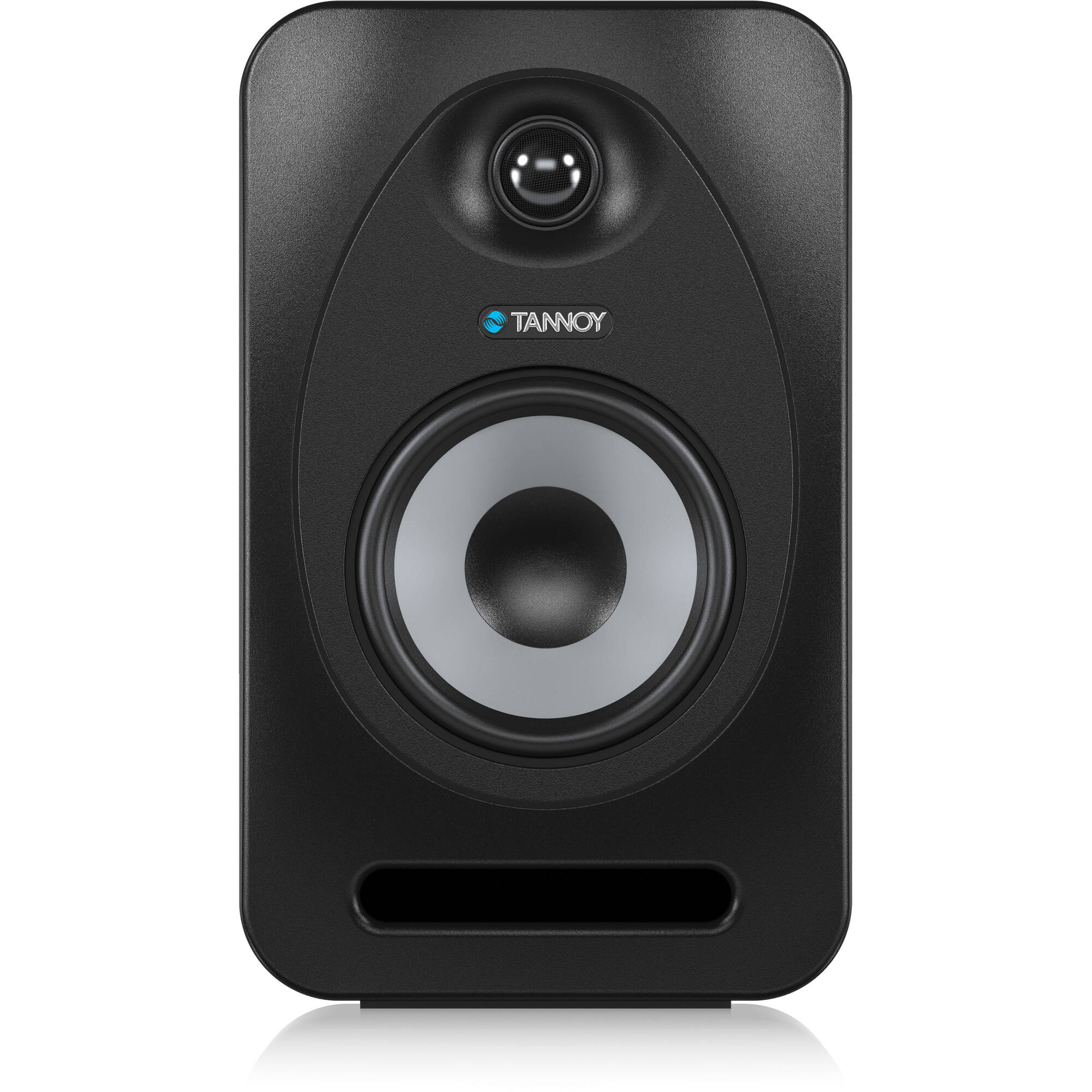

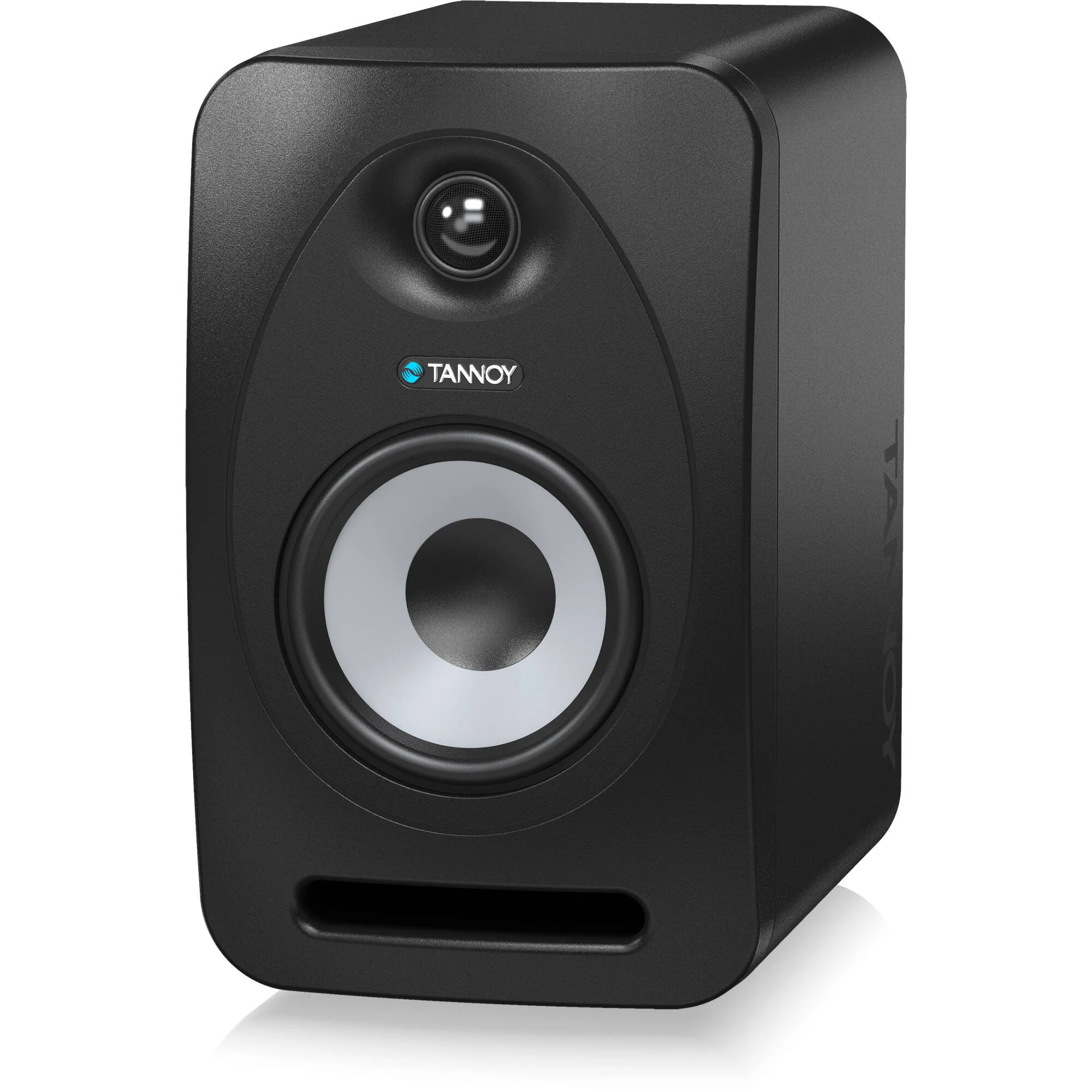

Tannoy REVEAL 402 70W 4" Bi-Amplified Studio Reference Monitor (Single)
Tannoy REVEAL 402 Overview
Move around in your workspace without losing the stereo imaging of your mix with the highly accurate Tannoy Reveal 402, a powered, 2-way reference monitor that's designed for mixing and monitoring at home or in the studio. It features an active crossover filter that aims to improve timing for a wide sweet spot, plus an accurately tuned front-firing bass port to help ensure optimal low-frequency performance.
Equipped with a bi-amped, 70W amplifier that powers a 4" woofer and a 1" soft-dome tweeter, the Reveal 402 is designed to ensure maximum power, tonal clarity, and low-frequency response. It features adjustable volume and EQ settings to customize the tuning of the speaker to compensate for acoustical deficiencies that may be present in your monitoring environment. A 16.4' 3.5mm monitor link cable is included, allowing you to daisy-chain a stereo signal from the stereo aux input to another monitor. A power cord is also included.
- Reference monitor ideal for personal studio monitoring
- 70W custom bi-amped design delivers rock-solid bass and premium tonal clarity at any volume
- 4" custom high-efficiency low-frequency driver for maximum bass response
- 0.75" soft-dome poke-resistant tweeter for detailed high-frequency reproduction
- Accurately tuned front-firing bass port allows near wall placement and ensures optimal low-frequency performance
- Ultrawide sweet spot allows you to move around in your workspace without losing the stereo imaging of your mix
- Rubberized foam base provides acoustic isolation
- Adjustable equalization to match your listening environment
- Balanced XLR input and unbalanced 1/4" TS input for maximum flexibility
- 3.5mm stereo input with monitor link facility for connection of mobile devices (cable included)
Items Included
- Tannoy REVEAL 402 70W 4" Bi-Amplified Studio Reference Monitor (Single)
- 3.5mm Monitor Link Cable (16.4')
- Power Cord
-
Limited 1-Year Manufacturer Warranty (Register within 90 Days for Extension)
Registration Extension: 2-Year
Additional Resources
Tannoy REVEAL 402 Specs
| Monitor Type & Configuration |
Active 2-Way
|
| Total Power Output |
50 W RMS / 70 W Peak
|
| Tweeter |
1x 0.75" / 19.05 mm Soft Dome
|
| Woofer |
1x 4" / 10.2 cm Cone
|
| Audio I/O |
1x XLR 3-Pin Balanced Line Input (20 Kilohms)
1x 1/4" TS Unbalanced Line Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Line/Aux Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Speaker Output |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| Wireless |
No
|
| Number of Included Monitors |
Single Monitor
|
| Enclosure |
Bass-Reflex/Ported
|
| Total Power Output |
50 W RMS / 70 W Peak
|
| Tweeter |
1x 0.75" / 19.05 mm Soft Dome
|
| Woofer |
1x 4" / 10.2 cm Cone
|
| Frequency Response |
56 Hz to 48 kHz
|
| Maximum Sound Pressure Level (SPL) |
101 dB
|
| Total Harmonic Distortion (THD) |
<0.9%
|
| Crossover Frequency |
2.8 kHz
|
| Audio I/O |
1x XLR 3-Pin Balanced Line Input (20 Kilohms)
1x 1/4" TS Unbalanced Line Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Line/Aux Input (10 Kilohms) 1x 1/8" / 3.5 mm TRS Unbalanced Speaker Output |
| Digital Audio I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Wireless |
No
|
| Mobile App Compatible |
No
|
| AC Input Power |
100 to 120 VAC, 50/60 Hz
200 to 240 VAC, 50/60 Hz |
| Power Consumption |
96 W (Maximum)
|
| Color |
Black
|
| Monitor Orientation |
Vertical
|
| Enclosure Material |
MDF
|
| Mounting Points |
No
|
| Dimensions (W x H x D) |
5.8 x 9.4 x 8.3" / 14.7 x 24 x 21.2 cm
|
| Package Weight |
12.62 lb
|
| Box Dimensions (LxWxH) |
15 x 12.7 x 9.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
