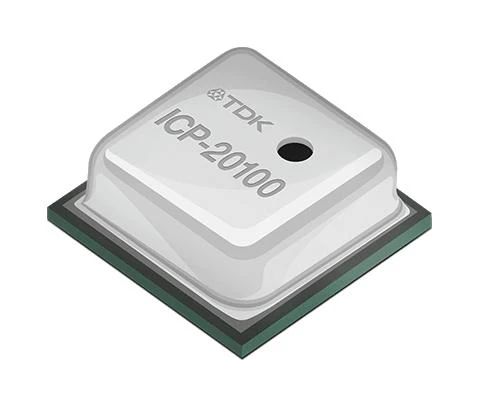

TDK Invensense ICP-20100 ICP-20100 Pressure Sensor Barometric 30 kPa 110 1.62 V 1.98
ICP-20100 pressure sensor provides a high accuracy, low power, barometric pressure and temperature sensor solution that integrates a capacitive pressure sensor for monitoring pressure changes in the range of 30 to 110kPa. The ICP-20100 integrates a DSP module for on-chip calibration with an analogue-to-digital converter (ADC), digital filtering, a FIFO and has I²C, I3CSM and SPI interfaces available. The solution can be configured to achieve ultra-low noise or ultra-low power performance and is flexible to perform anywhere in-between. Additionally, the filters can be enabled to allow even lower noise performance or activate features such as filtering of pressure glitches (e.g. opening/closing a window). The ICP-20100 is available in a closed package with a vent hole. Applications include smartphones, tablets, wearable sensors, weather stations, home and building automation.
- High performance feature�rich, low noise, low power SmartPressure� sensor
- Digital-output pressure and temperature sensors with programmable output
- Programmable noise performance down to 0.5 Parms through programmable oversampling ratio (OSR)
- Digital filtering for pressure signals
- Package dimension is 2x2x0.8 mm (10-pin LGA)
- 96byte FIFO buffer enables application processor to read upto 16 pressure temperature pair in burst
- User-programmable Interrupt
- Host interface: 12MHz SPI/1 MHz I2C/12.5MHz I3CSM
- Temperature operating range from -40 to 85°C, main supply voltage range from 1.8V ±10% or 3.3V ±10%
Other details
| Brand | TDK INVENSENSE |
| Part Number | ICP-20100 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
