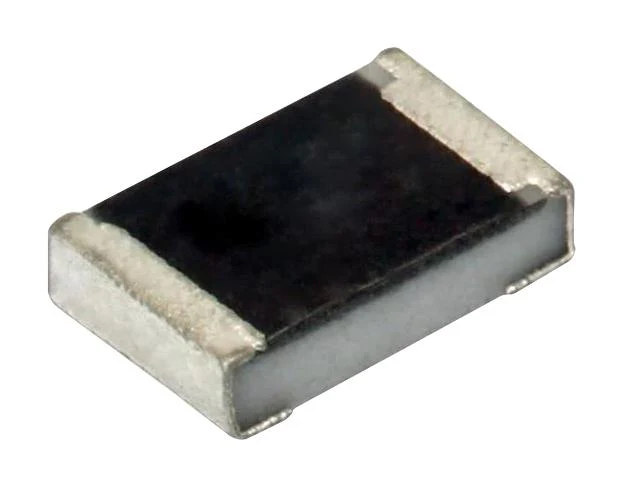

TE Connectivity RN73C2A499KBTDF SMD Chip Resistor 499 Kohm ± 0.1% 100 mW 0805 [2012 Metric] Thin Film Precision

The RN73C2A499KBTDF from TE Connectivity is RN73 series high stability 499Kohm thin film (nichrome) precision chip resistor. Value of resistance restricted to the E96 and E24 value grids. This resistor is produced with three sputtered layers giving optimum performance. This resistor has an accurate and uniform physical dimension to facilitate placement.

• Available in 0805 [2012 Metric] chip size
• Resistance tolerance is ±0.1%
• Maximum operating voltage is 100V
• ±10ppm/°C temperature coefficient
• Operating temperature range from -55°C to +155°C
• Insulation resistance is 1000Mohm
• Stability of 0.5%
• Rated power of 0.1W at 70°C
• Electroplated 100% matte Sn finish

Other details

Brand	TE CONNECTIVITY
Part Number	RN73C2A499KBTDF
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
3D Product Image EN
