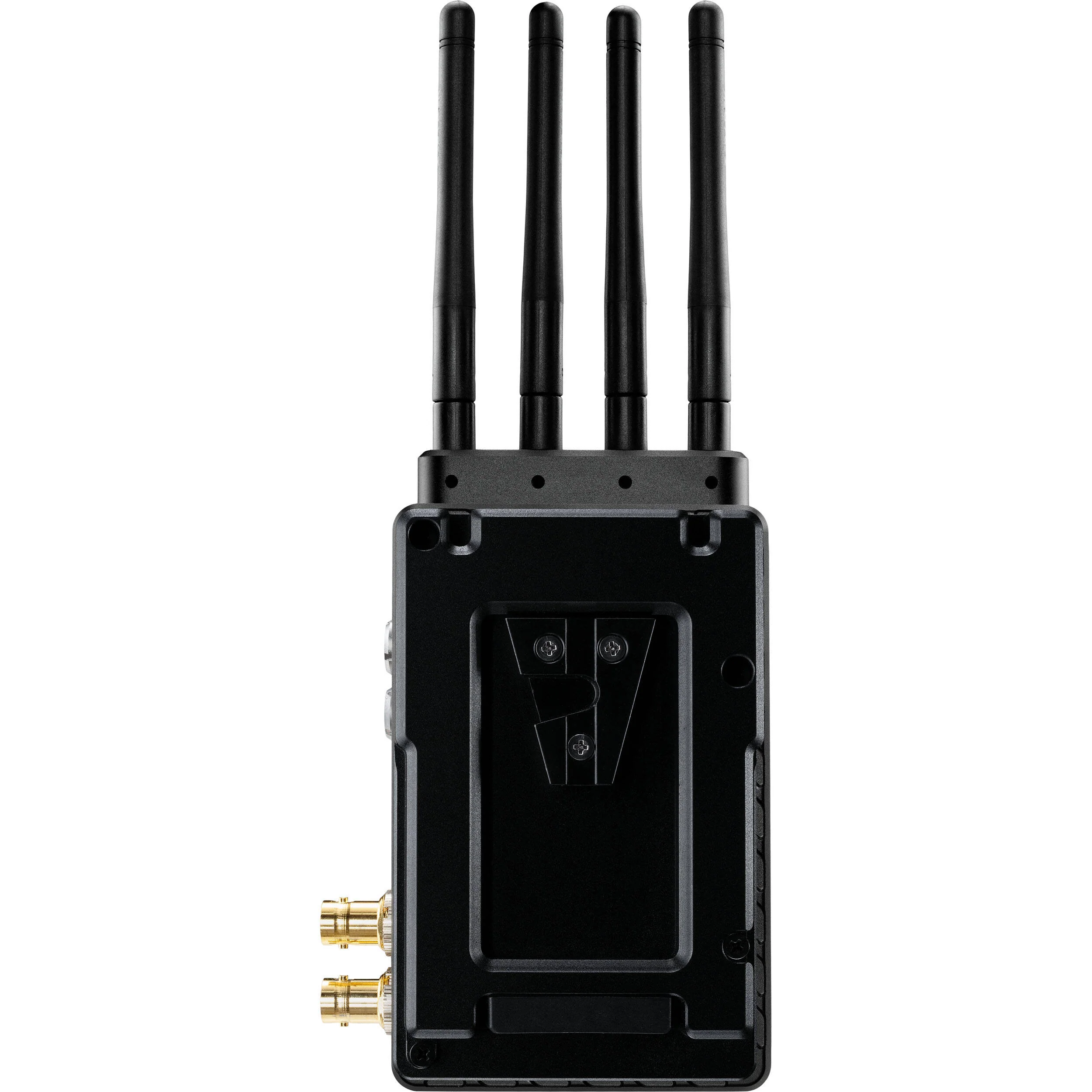

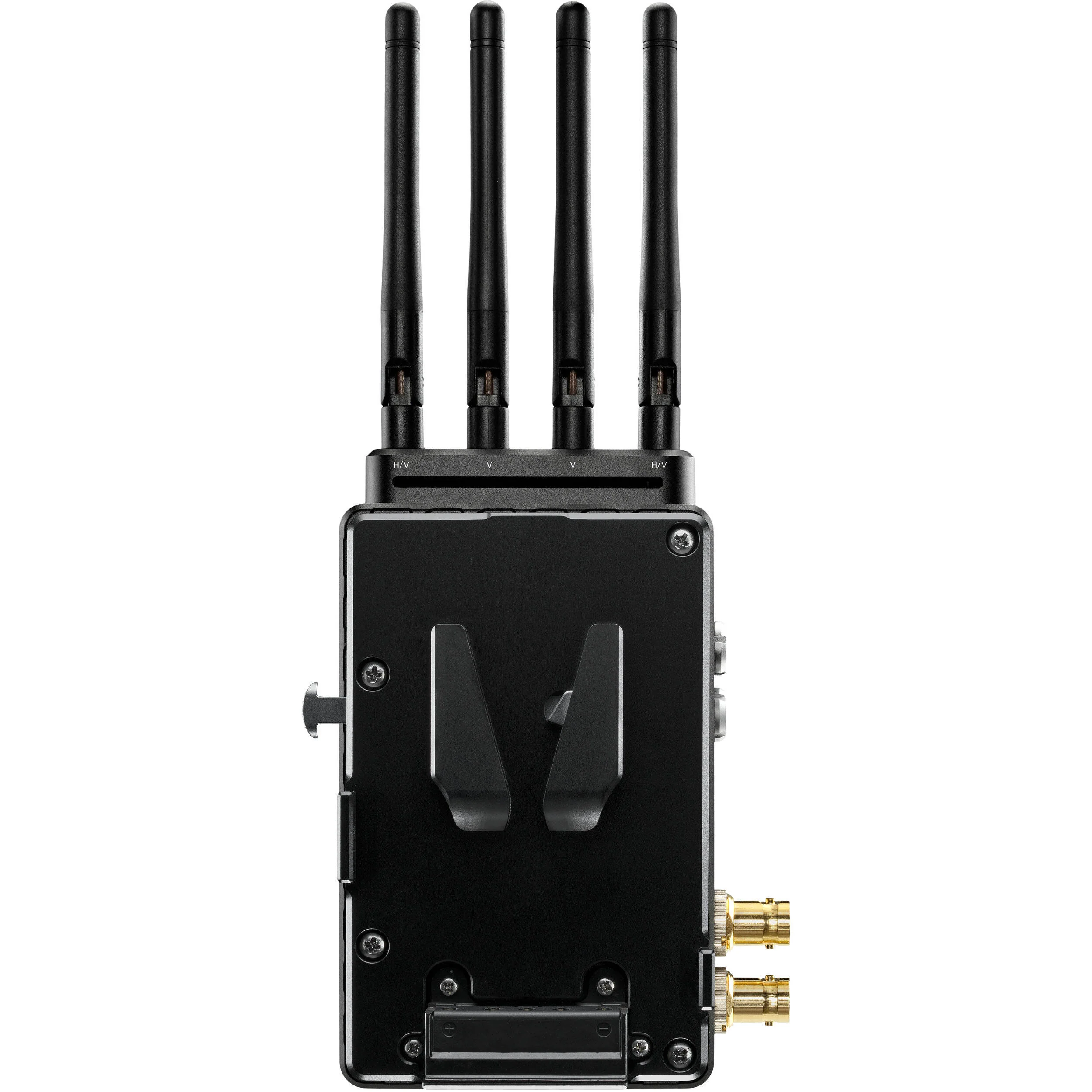

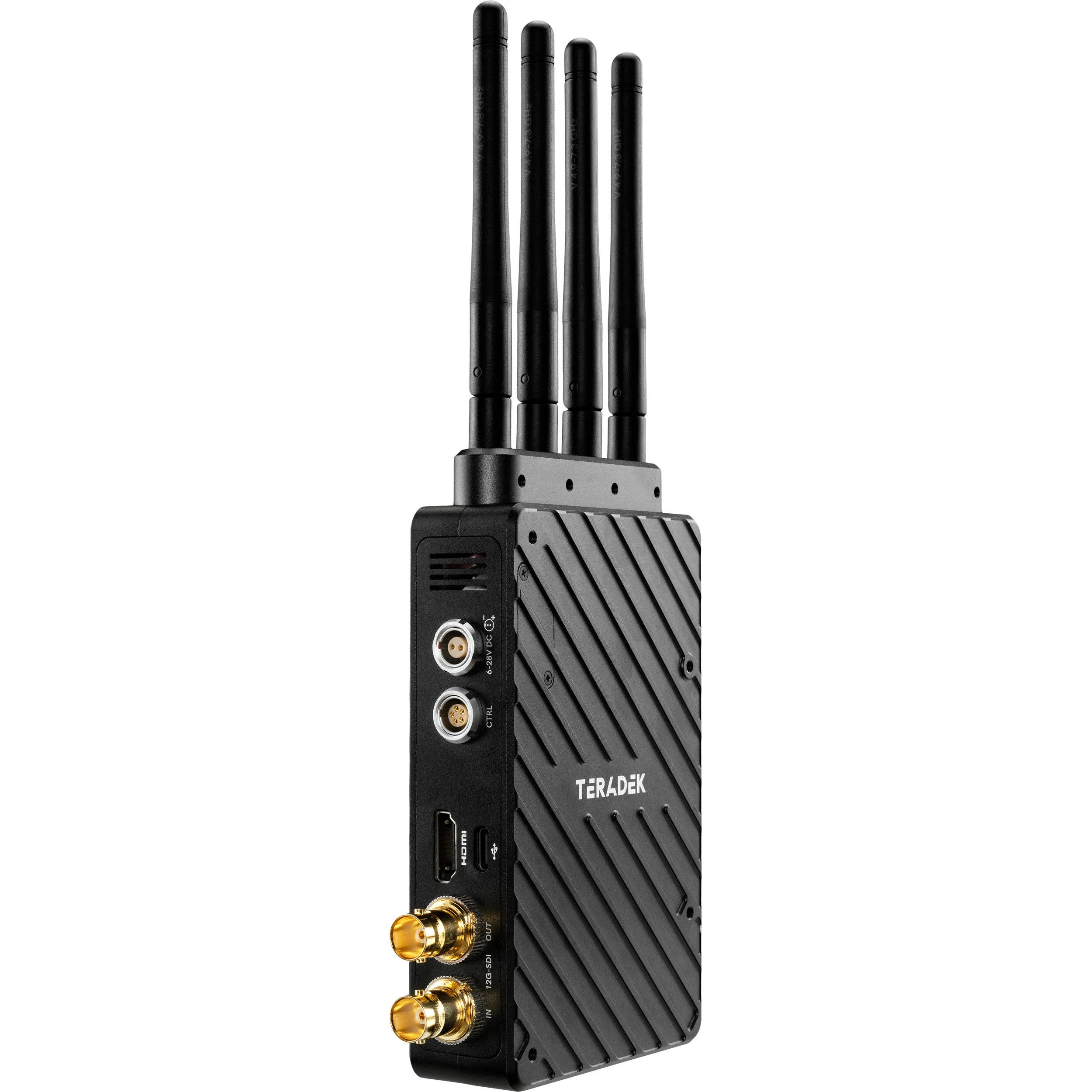

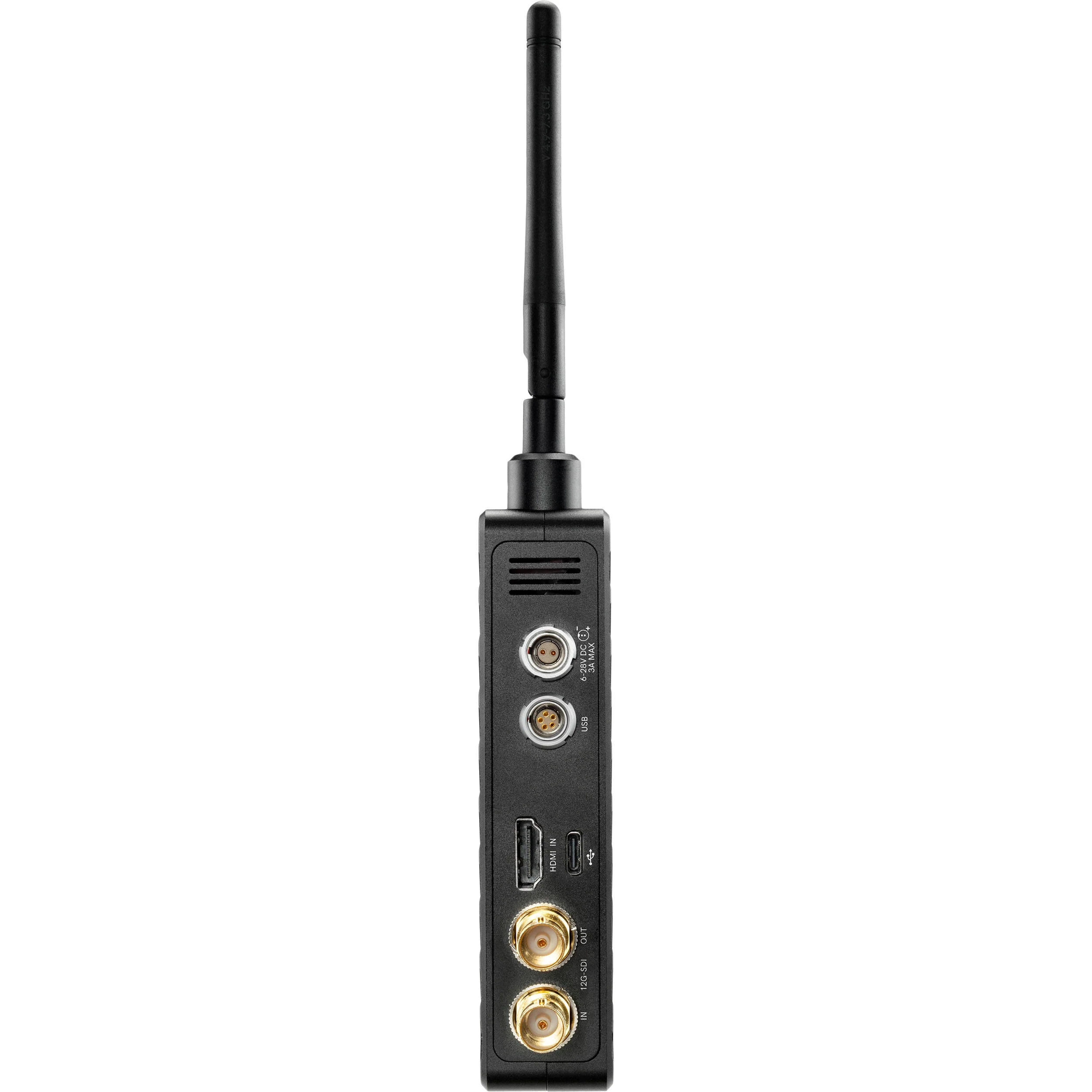

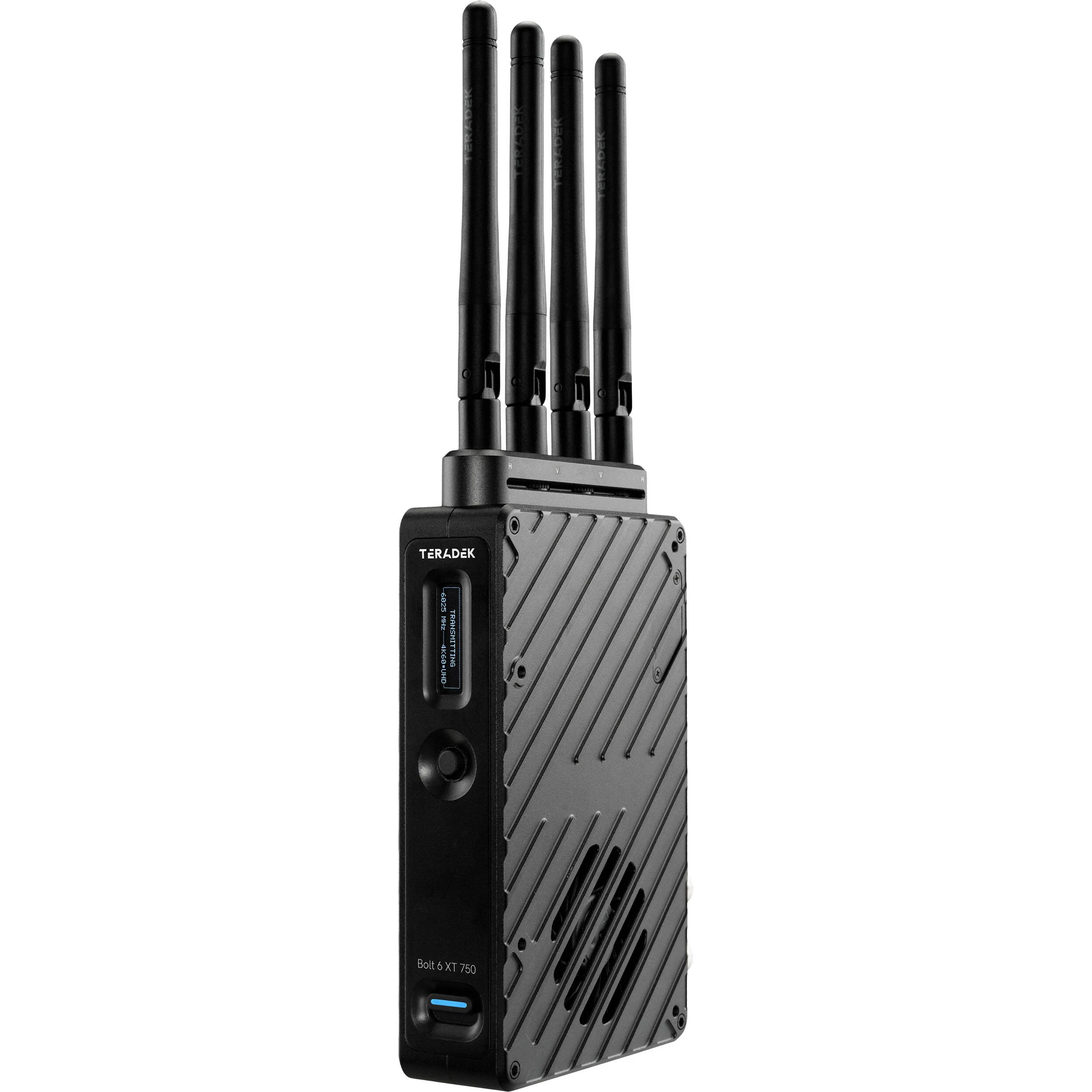

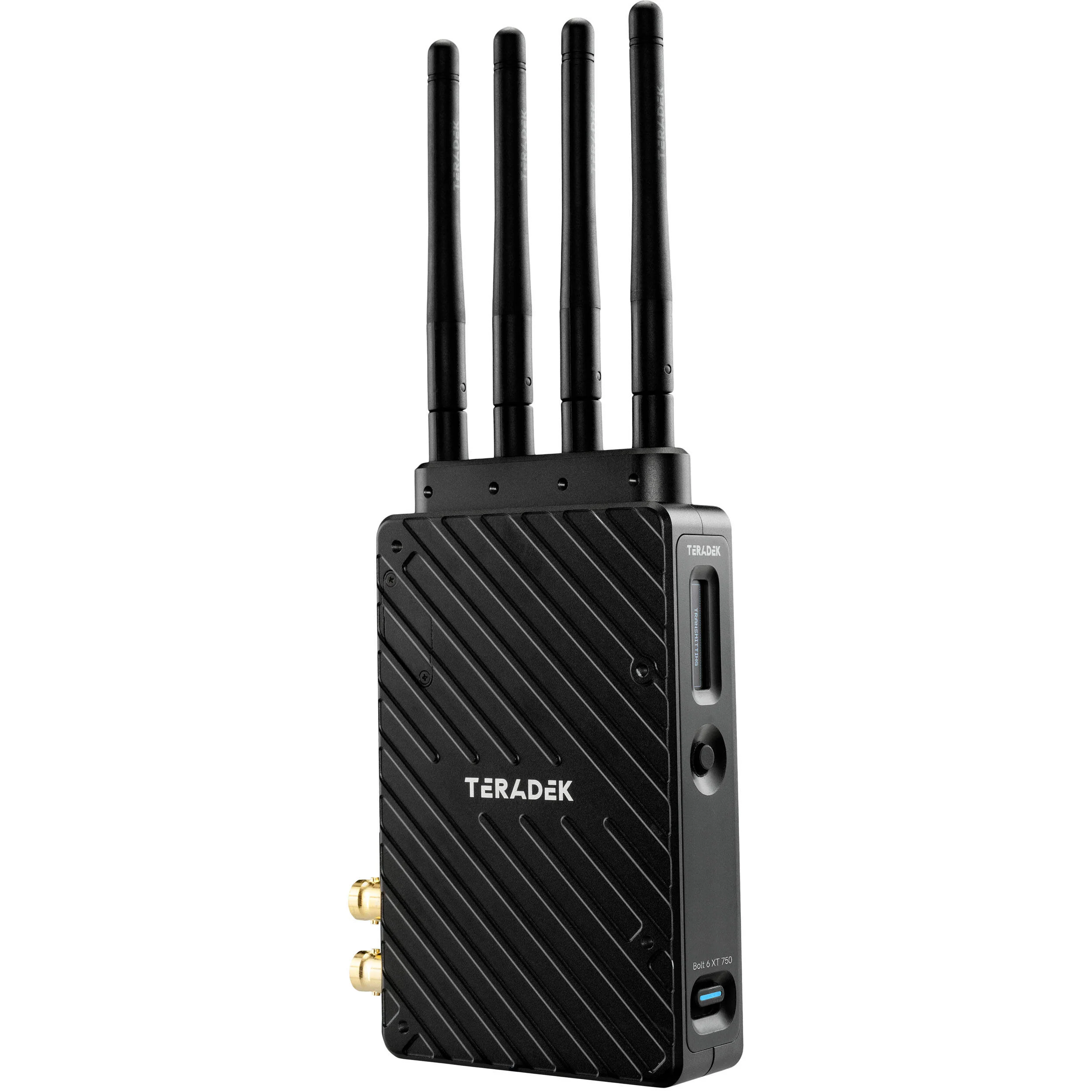

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
Teradek XT 750 Overview
Transmit lossless HD video up to 750' with the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter from Teradek. With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 750' line of sight. It features a bright OLED display and 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
In the Box
- Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter (V-Mount)
- V-Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to USB Type-C Male Cable (39")
- HDMI Type A Male Cable (18")
- BNC 12G-SDI Cable (18")
- AC Adapter with Cable (6')
- 4 x Antenna
- Battery Cover
- 2 x Screw
Teradek XT 750 Specs
| Antenna I/O | 4 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Input 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Loop Output |
| Embedded Audio | HDMI: 2-Channel SDI |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C Input 1 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x V-Mount (Interchangeable Mount) |
| Power Consumption | 20 W |
| Mounting | 1 x 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm, Excluding Battery Plate |
| Weight | 12.1 oz / 344 g, Excluding Battery Plate |
| Package Weight | 4.085 lb |
| Box Dimensions (LxWxH) | 16.4 x 8.4 x 3.7" |
Teradek XT 750 Reviews
