TESTEC TT-HX 312 Oscilloscope Probe, 10 Mohm, 1.2 ns, Voltage, 350 MHz, 400 Vrms, 1:1, 10:1, Oscilloscopes
TESTEC TT-HX 312 Oscilloscope Probe, 10 Mohm, 1.2 ns, Voltage, 350 MHz, 400 Vrms, 1:1, 10:1, Oscilloscopes
Product Overview
TT-HX 312 is a 1:1/10:1 passive modular probe. It comes with a convenient switch in the probe handle that lets you switch between a 1:1 and 10:1 attenuation ratio.
- 350MHz (10:1), 10MHz (1:1) bandwidth
- 1nsec (10:1), 35nsec (1:1) rise time
- 10Mohm, 13pF(10:1) and 1Mohm, 47pF(1.1) input impedance
- Measurement Category II rated
- 1.2m cable length
Contents

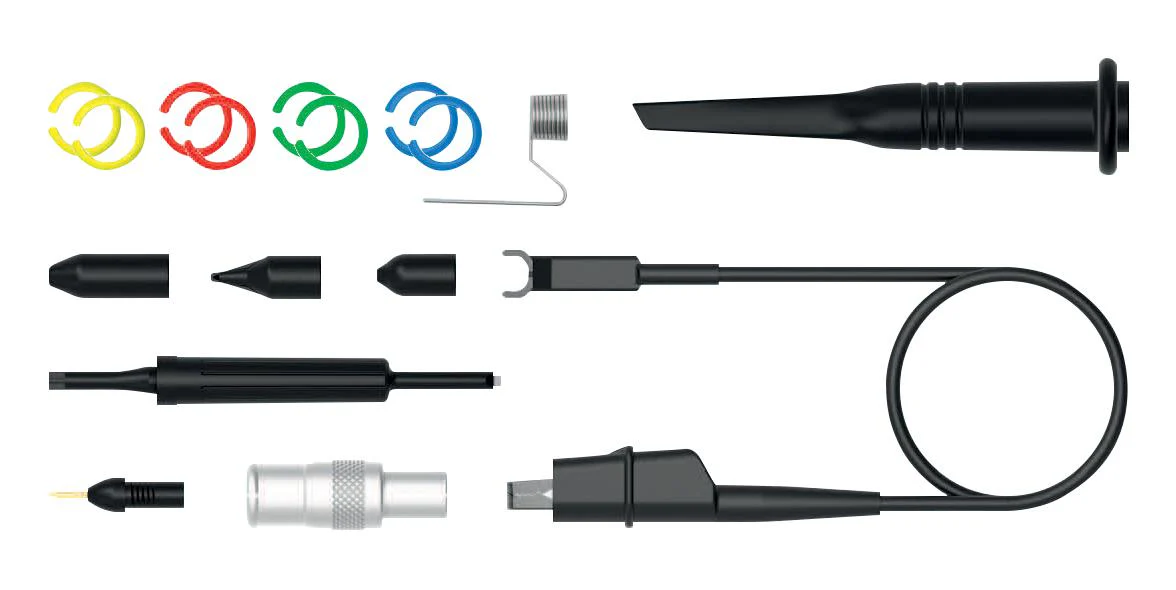

Protective cap x2, BNC adapter, Spring hook tip, Spring loaded tip, grounding lead terminated with insulated crocodile clip, Trimmer tool.
Product details
Other details
| Brand | TESTEC |
| Part Number | TT-HX 312 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $145.88
-70%$145.88
$43.76More Images
