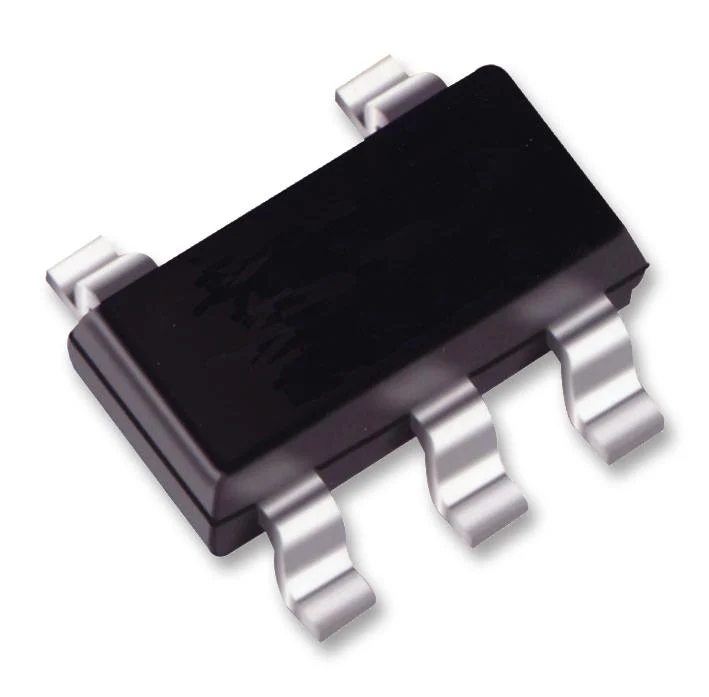

Texas Instruments DS90LV012ATMF/NOPB DS90LV012ATMF/NOPB Single Cmos Differential Line Receiver 1.5 ns 9 mA -40 °C 85 2.7 V
Texas Instruments DS90LV012ATMF/NOPB DS90LV012ATMF/NOPB Single Cmos Differential Line Receiver 1.5 ns 9 mA -40 °C 85 2.7 V
The DS90LV012ATMF/NOPB is a CMOS single Differential-line Receiver designed for applications requiring ultralow-power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400Mbps (200MHz) utilizing Low Voltage Differential Swing (LVDS) technology The DS90LV012A accept low voltage (350mV typical) differential input signals and translates them to 3V CMOS output levels. The receivers also support open, shorted and terminated (100R) input fail-safe. The receiver output will be HIGH for all fail-safe conditions. The line receiver has a pinout designed for easy PCB layout. The line receiver includes an input line termination resistor for point-to-point applications.
- Conforms to TIA/EIA-644-A standard
- 100ps Typical differential skew
- 3.5ns Maximum propagation delay
- 102R Typical integrated line termination resistor
- Power down high impedance on LVDS inputs
- 350mV Typical accepts small swing
- LVDS receiver inputs accept LVDS/BLVDS/LVPECL inputs
- Supports open, short and terminated input fail-safe
- Pinout simplifies PCB layout
- 10mW Typical low power dissipation
- Green product and no Sb/Br
Industrial
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | DS90LV012ATMF/NOPB |
| Quantity | Each (Supplied on Cut Tape) |
| Product Change Notice EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.60
