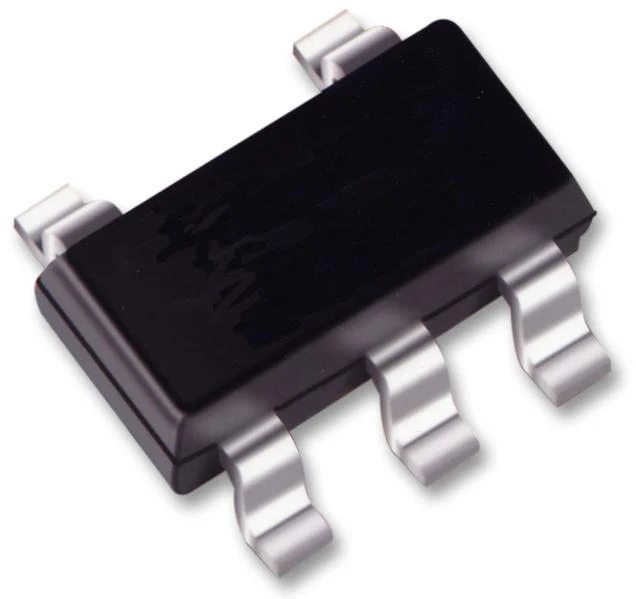

Texas Instruments INA169NA/250 INA169NA/250 Current Sense Amplifier 1 10 µA SOT-23 5 Pins -40 °C 85

The INA169NA/250 from Texas Instruments is a high-side, unipolar, current shunt monitor. Wide input common-mode voltage range, high-speed, low quiescent current, and tiny SOT-23 packaging enable usein a variety of applications. Input common-mode and power-supply voltages are independent and can range from 2.7 V to40 V for the INA139 and 2.7 V to 60 V for the INA169. Quiescent current is only 60 µA, whichpermits connecting the power supply to either side of the current measurement shunt with minimalerror.

• Complete Unipolar High-Side Current Measurement Circuit
• Wide Supply and Common-Mode Range
• Independent Supply and Input Common-Mode Voltages
• Single Resistor Gain Set
• Low Quiescent Current: 60uA (Typical)

Other details

Brand	TEXAS INSTRUMENTS
Part Number	INA169NA/250
Quantity	Each (Supplied on Cut Tape)
